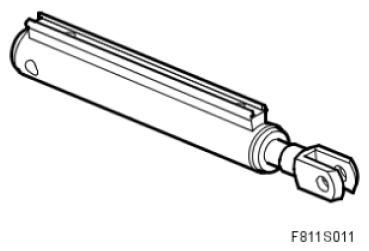

Soft top cover hydraulic cylinder, left/right
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
LENGTH REFERENCE
| Closed length | 195.75 0/-2.5 mm |
| Extended length | 295.75 +2.5/0 mm |
| Piston diameter | ø 12 mm |
| Pushing force | Min. 1510 N (differential pressure) Max 1700 N (differential pressure) |
| Pulling force | Min 2680 N Max 3050 N |
| Hydraulic lines | Line no., left, pull 31 |
| Hydraulic lines | 32 |
| Hydraulic lines | 33 |
| Hydraulic lines | 34 |
