Hydraulic lines
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

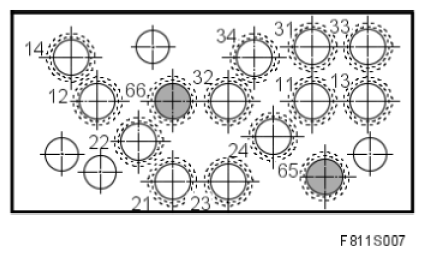

The hydraulic lines are marked with the same number at both ends and are of different lengths. The passages through the attaching plate are also marked to avoid confusion.
It is essential the hoses are mounted correctly.
HYDRAULIC LINES NUMBER REFERENCE
| Line no. | Cylinder | FAILURE |
|---|---|---|
| 11 | Main hydraulic cylinder, left | pull |
| 12 | Main hydraulic cylinder, left | push |
| 13 | Main hydraulic cylinder, right | pull |
| 14 | Main hydraulic cylinder, right | push |
| 21 | 6th bow hydraulic cylinder, left | pull |
| 22 | 6th bow hydraulic cylinder, left | push |
| 23 | 6th bow hydraulic cylinder, right | pull |
| 24 | 6th bow hydraulic cylinder, right | push |
| 31 | Soft top cover hydraulic cylinder, left | pull |
| 32 | Soft top cover hydraulic cylinder, left | push |
| 33 | Soft top cover hydraulic cylinder, right | pull |
| 34 | Soft top cover hydraulic cylinder, right | push |
| 65 | 1st bow hydraulic cylinder, locking | pull |
| 66 | 1st bow hydraulic cylinder, locking | push |
