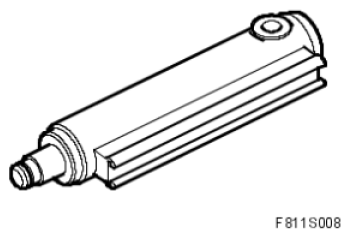

1st bow hydraulic cylinder, locking
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
LENGTH REFERENCE
| Retracted length | 95 0/-2.5 mm |
| Extended length | 129 +2.5/0 mm |
| Piston diameter | ø 10 mm |
| Pushing force | Min. 1050 N (differential pressure) max 1180 N (differential pressure) |
| Pulling force | Min 1645 N Max. 1855 N |
| Hydraulic lines | 65 |
| Hydraulic lines | 66 |
