Preliminary Work

  1. Remove cylinder heads.

    > 157019 REMOVING AND INSTALLING CYLINDER HEAD

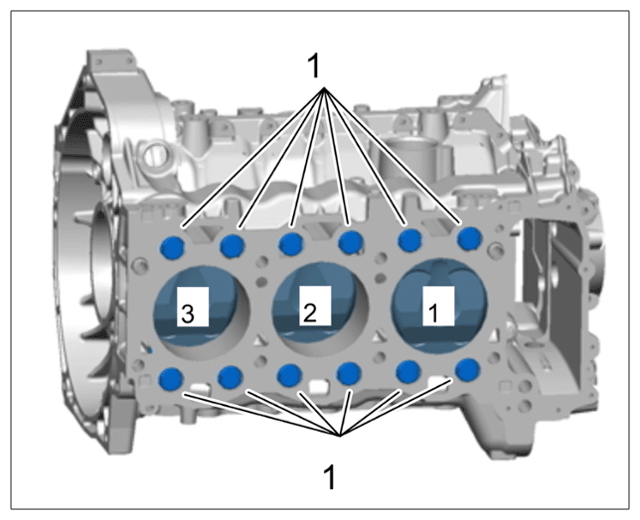

  2. Draw out displacement bodies -1-  on cylinder bank 1.
    G16219203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1

  3. Remove oil pan.

    > REMOVING OIL PAN (UPPER PART)

  4. Remove oil pump.

    > REMOVING OIL PAN (LOWER PART)

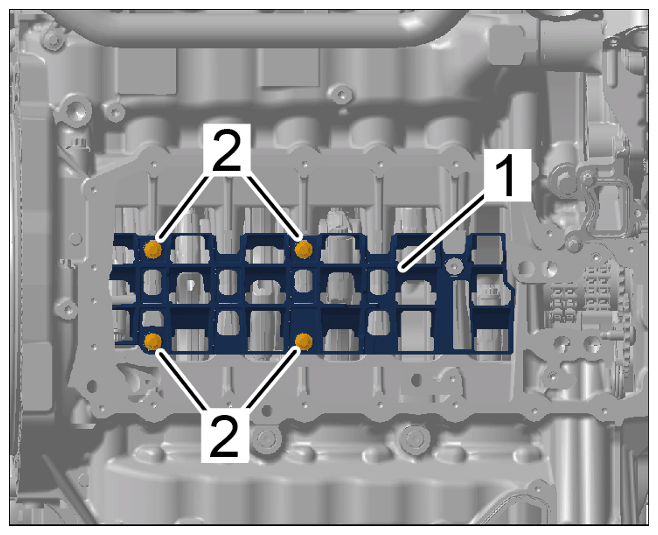

  5. Unscrew oil windage tray screws -2-  and remove oil windage tray -1-  .
    G16219204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil plate

  6. Turn the engine on the assembly support so that cylinder bank 1 is facing upwards.
