Removing Oil Pan (Lower Part)

1. 1.1  Release and disconnect electric plug connection -2-  .
2. 1.2  Unclip clip -3-  .
3. 1.3  Place electric line for oil level sensor -1-  aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line for oil level sensor

1. 2.1  Unscrew and remove screws -1 to 24-  .
2. 2.2  Remove lower part of oil pan -25-  .

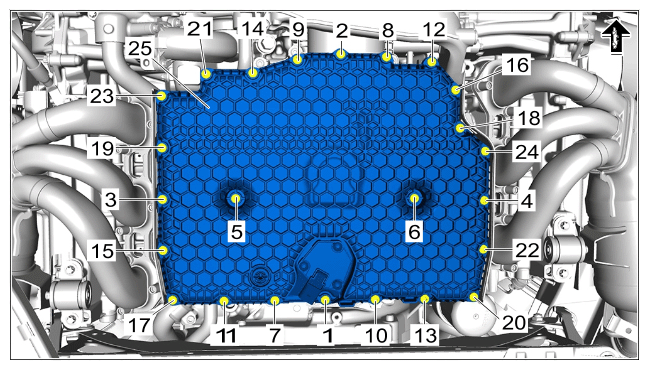

Fig 1: Oil Pan Screws Loosening Sequence (Lower Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pan (lower part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

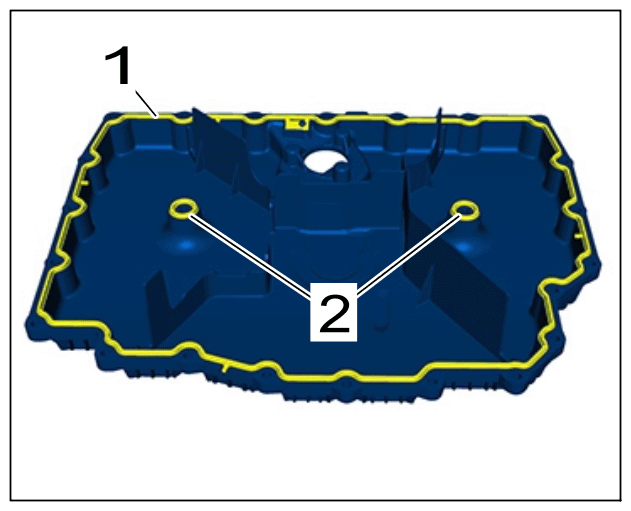

Seals on (lower part of) oil pan
