Changing ATF

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

ATF must be changed when the engine/transmission is cold.

Place oil collection pan underneath.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil inspection plug -1- .

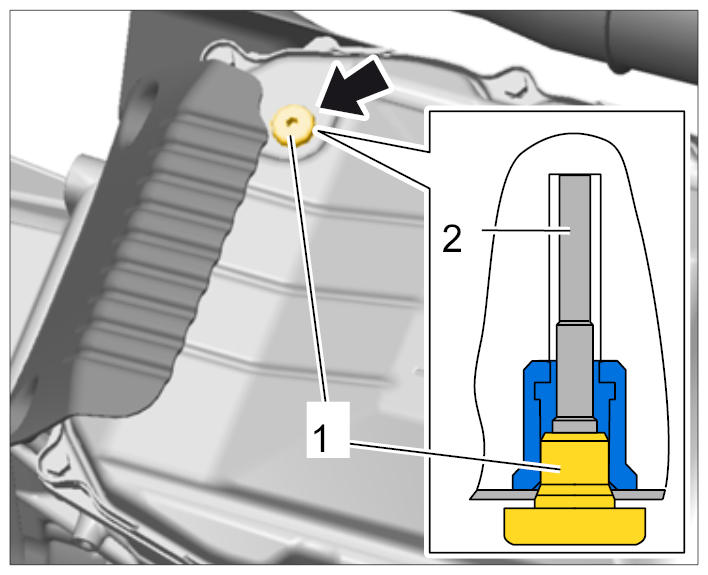

Fig 1: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew the overflow pipe -2- using an Allen key and drain ATF.

Fig 2: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the fastening screw -1- for the ATF lines -2- at the bottom of the transmission -3- .

Fig 3: Identifying Detaching ATF Lines And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull ATF lines out of the transmission and drain ATF.
Information
- The sealing rings at the ends of the ATF lines on the transmission and cooler sides must be replaced before installation.
Position ATF lines -2- with holder in the transmission -3- .
Ensure that the lines are seated correctly.
Tighten fastening screw -1- to → Tightening torque: 20 Nm (15 ftlb.) .

Fig 4: Identifying Detaching ATF Lines And Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

To drain the front ATF lines, remove the ATF thermostat. → REMOVING ATF COOLER
As soon as the ATF has drained from the ATF lines, install the ATF thermostat. → INSTALLING ATF COOLER
Screw the overflow pipe -2- into the ATF pan. → Tightening torque: 1 Nm (0.5 ftlb.)

Fig 5: ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw adapter for filling ATF oil Adapter for filling ATF oil VAS 6262/2 WE 1390 into the ATF pan hand-tight.
Information
- Only part of the total change quantity can be filled because of the test specifications stipulated for the ATF.
- The rest must then be filled as described in the Checking ATF section.
Connect adapter for filling oil Adapter for filling oil VAS 6262A WE 1389 to the rapid-action coupling and fill in ATF.
Pull off adapter for filling oil Adapter for filling oil VAS 6262A WE 1389 at the rapid-action coupling and check to see if ATF emerges.
If no ATF emerges, fill in ATF until a constant discharge is visible at the lifting tube.
Screw in oil inspection plug -1- .

Fig 6: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check and top up ATF. → 370235 CHECKING AND TOPPING UP ATF
