Installing ATF Cooler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

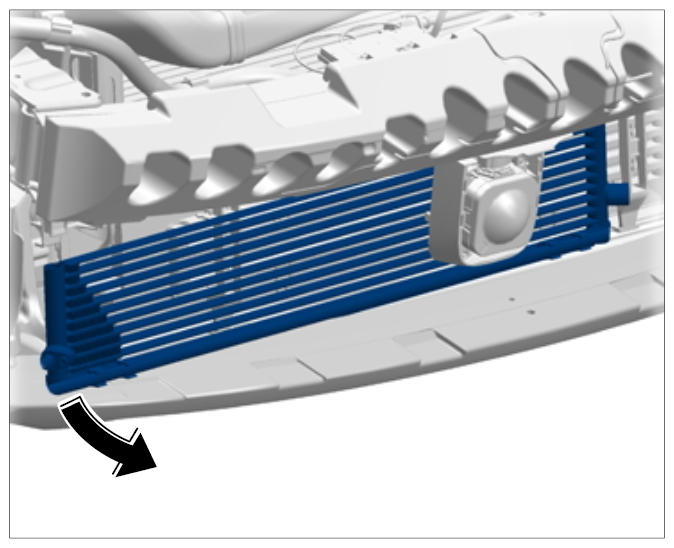

Install ATF cooler between the air guide and frame.

Fig 1: Installing ATF Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure holder for ATF line on the ATF cooler.

Fig 2: Securing Holder For ATF Line On ATF Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

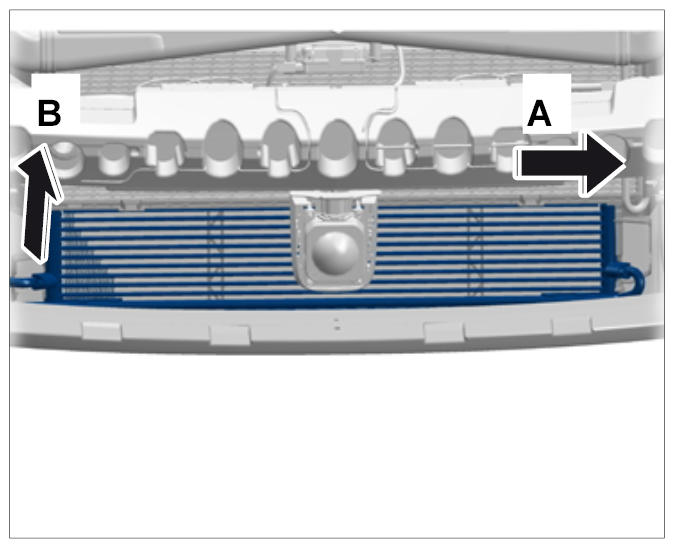

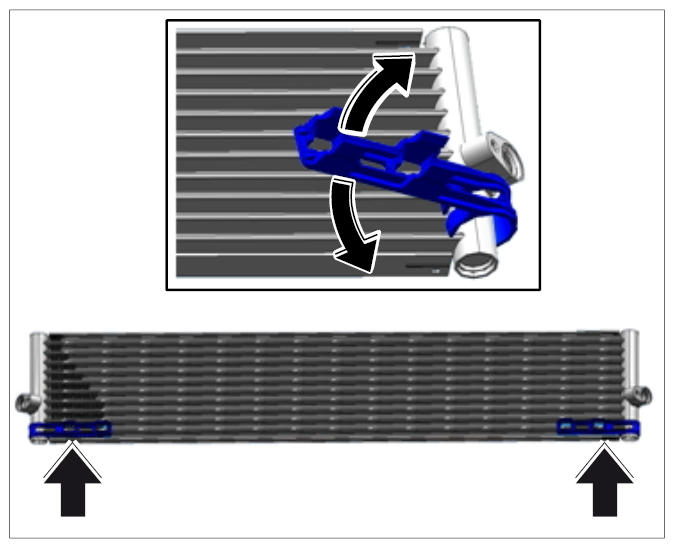

Guide the ATF cooler into the retaining frame -A- and press it in -B- .

Fig 3: Tightening ATF Cooler In Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

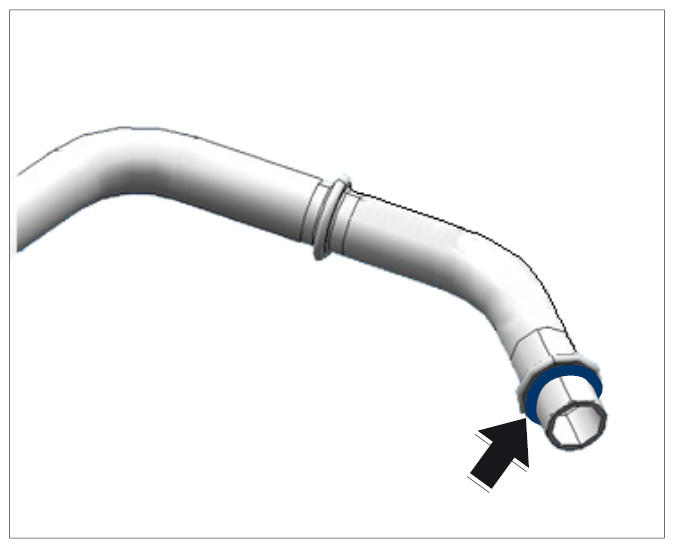

Replace sealing rings on the ATF lines.

Fig 4: Locating Sealing Rings On Ends Of ATF Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

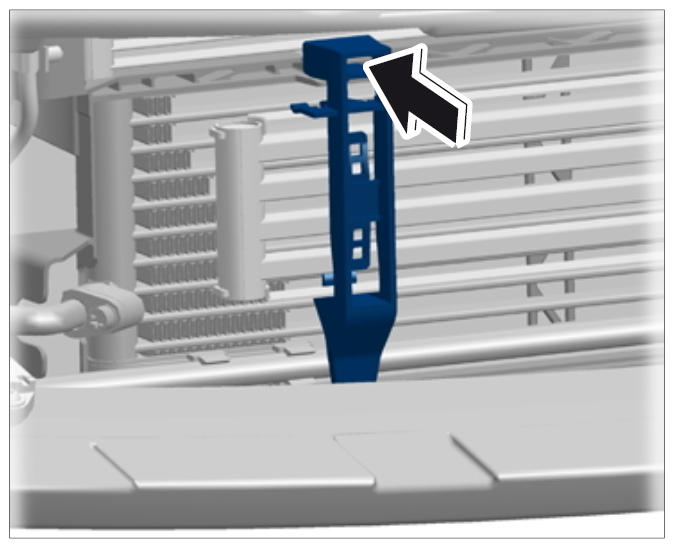

Fit holder for cooler.

Fig 5: Fitting Holder For Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If installed: Install ACC sensor.

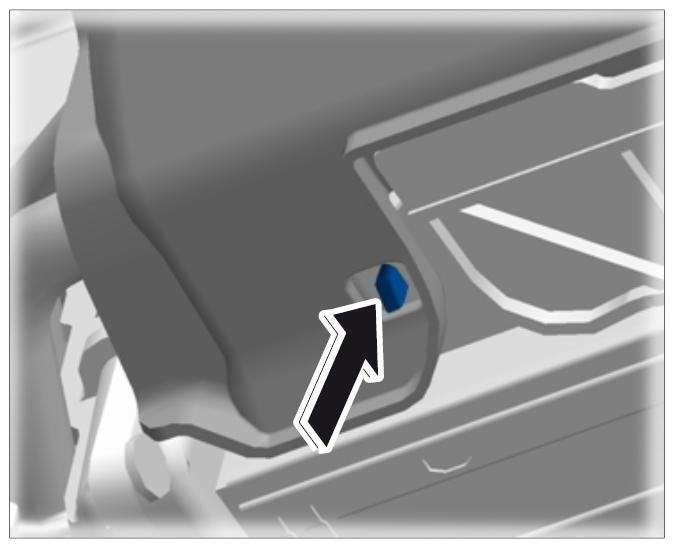

Lock tabs on the bottom of the air guide.

Fig 6: Locking Lug On Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

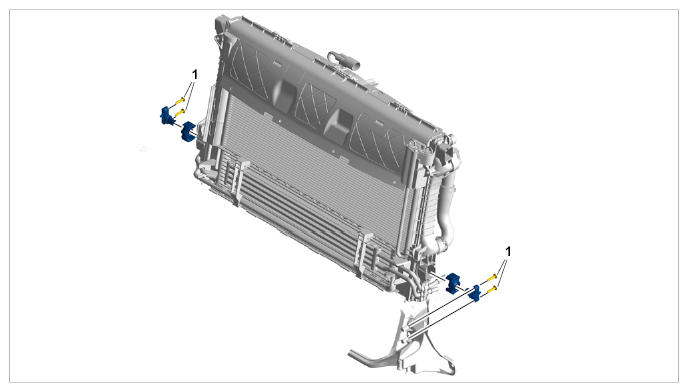

Screw in fastening screws on holder for coolant cooler -1- at the left and right.

Fig 7: Identifying Holder For Coolant Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

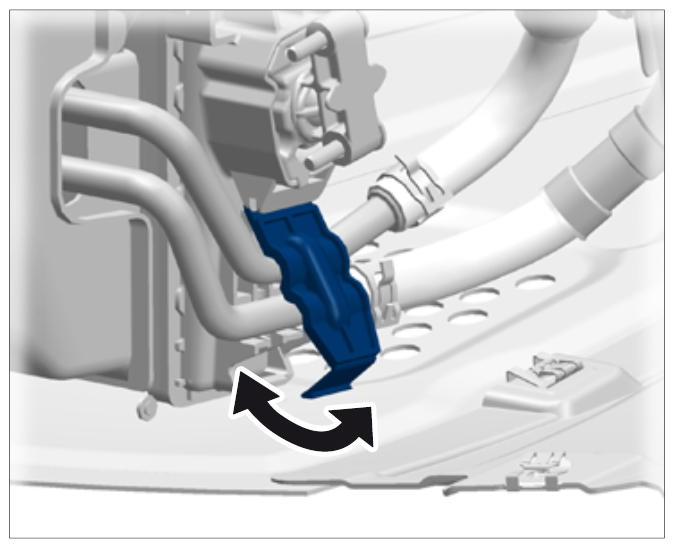

Fit servo line holder.

Fig 8: Fitting Servo Line Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

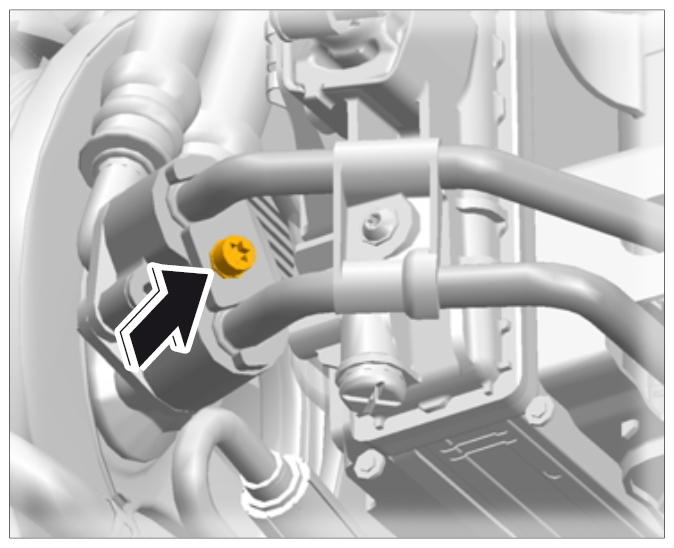

Insert ATF lines into the connection piece and secure with the holder -arrow- .

Fig 9: Inserting ATF Lines Into Connection Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

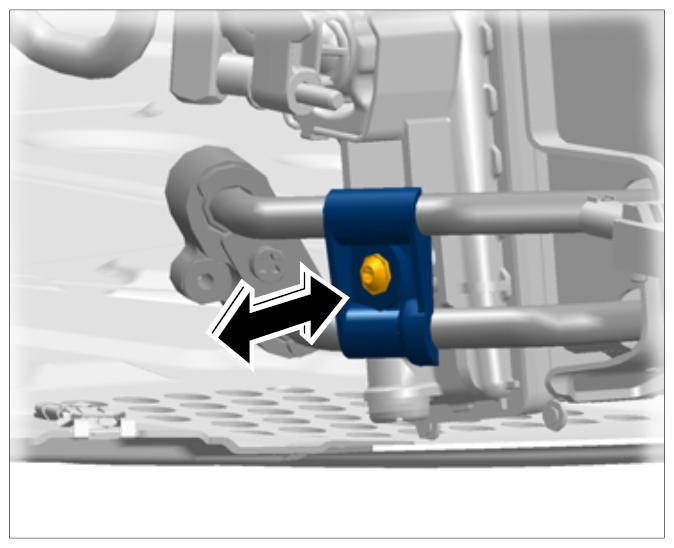

Fit holder for ATF line.

Fig 10: Checking Holder For Transmission Oil Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
