Removing ATF Cooler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Place collection pan underneath.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

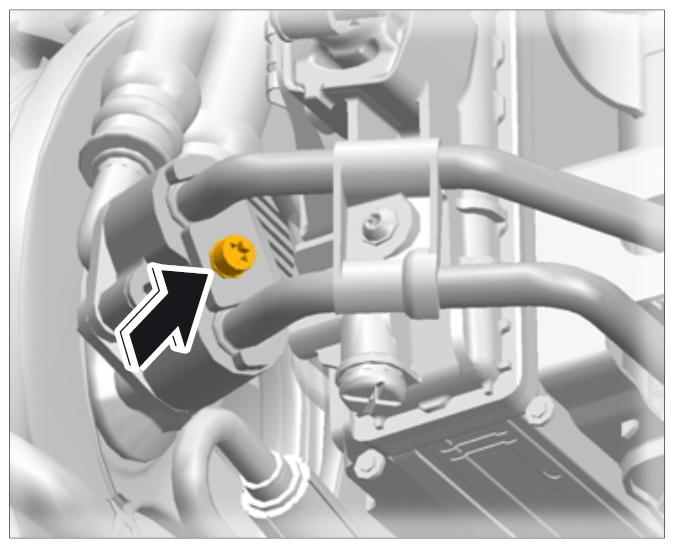

Loosen ATF lines at the connection piece -arrow- .

Fig 1: Loosening ATF Lines At Connection Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

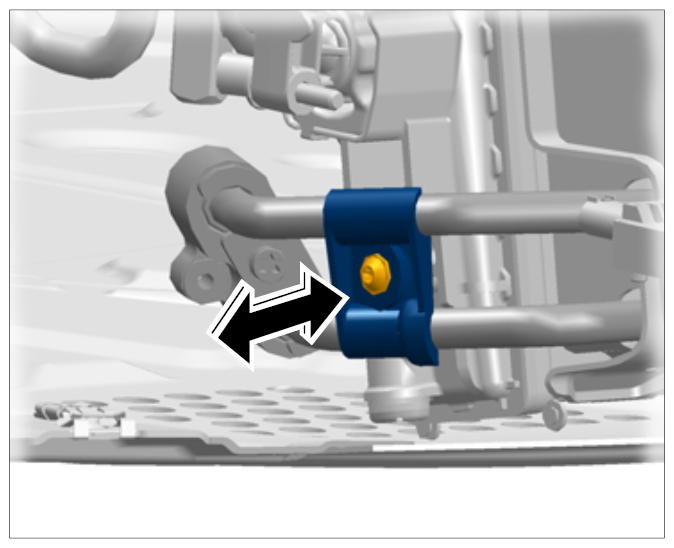

Remove holder for ATF line.

Fig 2: Checking Holder For Transmission Oil Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

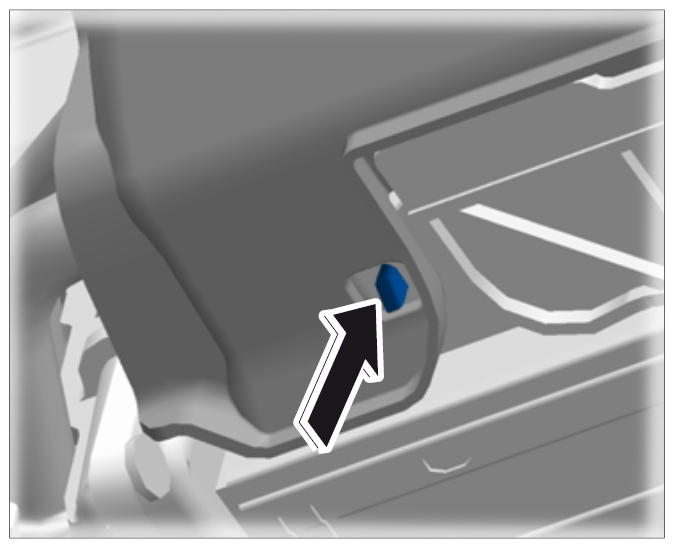

Loosen tabs on the air guide.

Fig 3: Loosening Tabs On Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

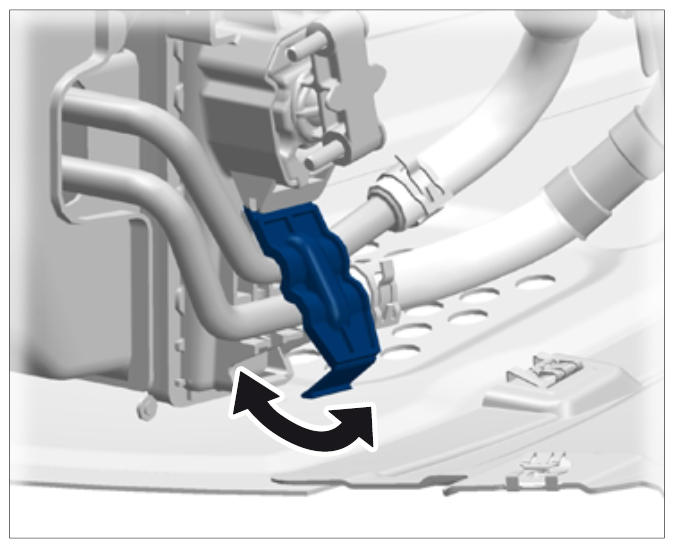

Remove servo line holder.

Fig 4: Removing Servo Line Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

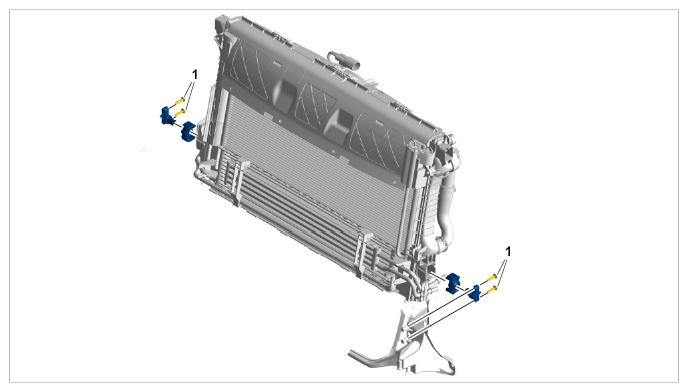

Unscrew and remove fastening screws -1- on holder for coolant cooler at the left and right.

Fig 5: Identifying Holder For Coolant Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If installed: Remove ACC sensor.

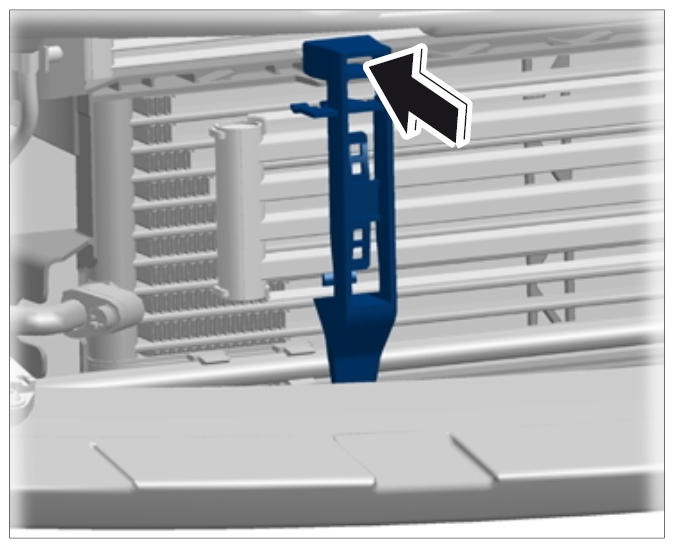

Remove holder for cooler.

Fig 6: Locating Holder For ATF Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

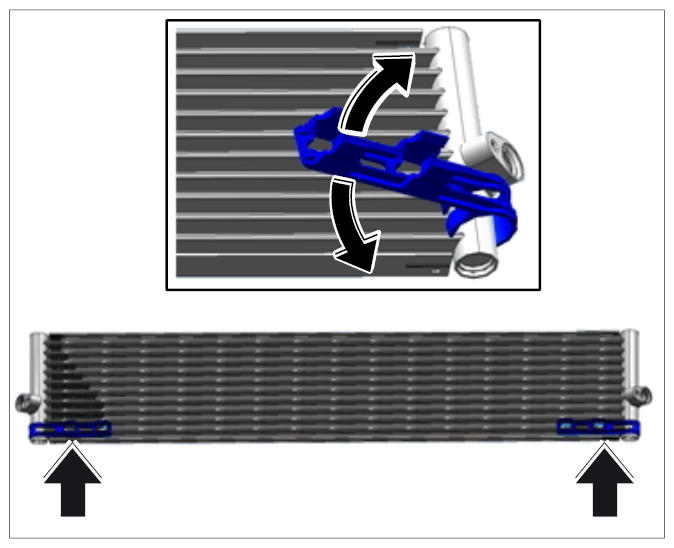

Loosen ATF cooler from the retaining frame. Press the power-steering cooler aside while doing this.

Fig 7: Loosening ATF Cooler From Retaining Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ATF line bracket at the ATF cooler.

Fig 8: Locating ATF Line Bracket On Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

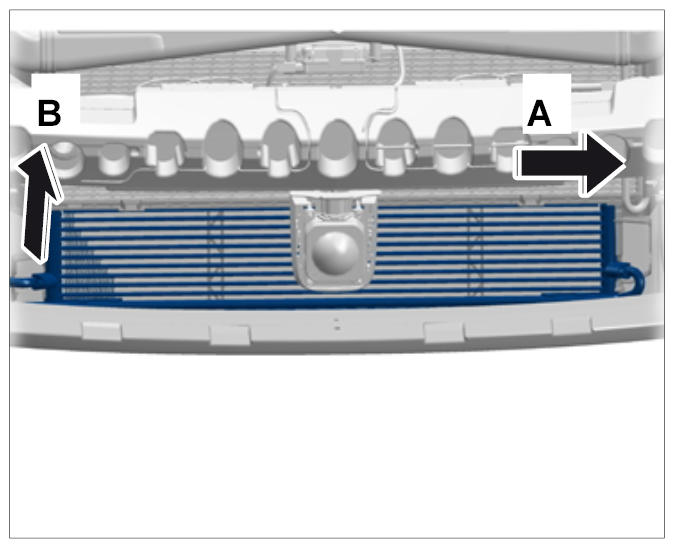

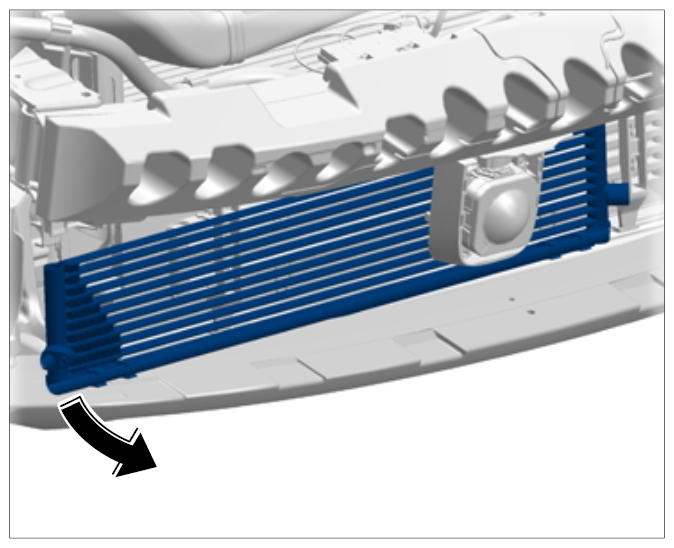

Remove ATF cooler between the air guide and frame.

Fig 9: Removing ATF Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
