Removing wire harness for tailgate at the right

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Release and pull off antenna line connections -1- on the antenna control unit -2- . → 918619 REMOVING AND INSTALLING ANTENNA CONTROL UNIT
Release and disconnect electric plug connections -3- on the antenna control unit. → 918619 REMOVING AND INSTALLING ANTENNA CONTROL UNIT
Screw off fastening nut -4- and remove ground strap -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -1- on the ground strap.
Disconnect electric plug connection -2- at the rear window heating connection.
Release and disconnect electric plug connection -3- for tail light in rear lid at the right. → 943119 REMOVING AND INSTALLING TAIL LIGHT IN REAR LID

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

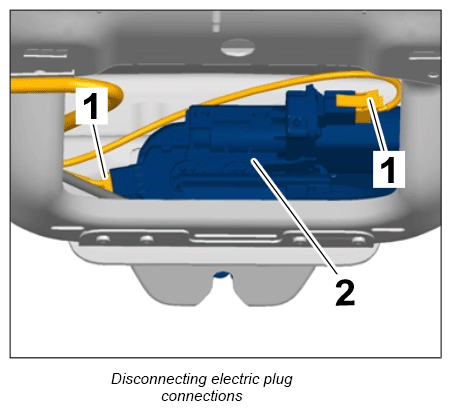

Release and disconnect electric plug connections -1- on upper part of rear lid lock -2- . → 558719 REMOVING AND INSTALLING UPPER PART OF REAR LID LOCK

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nuts -1- and remove ground straps -2- .
Disengage plug connection for antenna line -3- from the holder, then release -a- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage plug connection for antenna line -1- from the holder, then release -a- and disconnect it.
Release and disconnect electric plug connection -2- (-b- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open holder -1- and remove it from the tailgate.
Unclip all retaining clips -2- on the tailgate wire harness at the right using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cable bushing -1- from the tailgate and roof pillar.
Carefully guide wire harness for tailgate at the right -2- out through the openings in the tailgate and roof pillar and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
