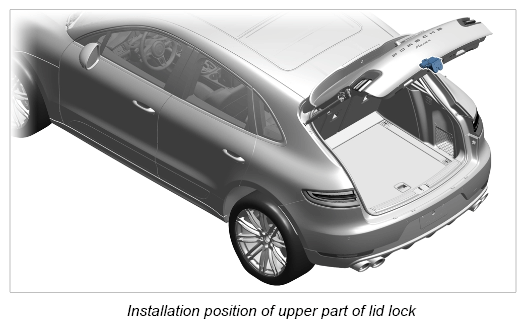

Removing upper part of rear lid lock

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

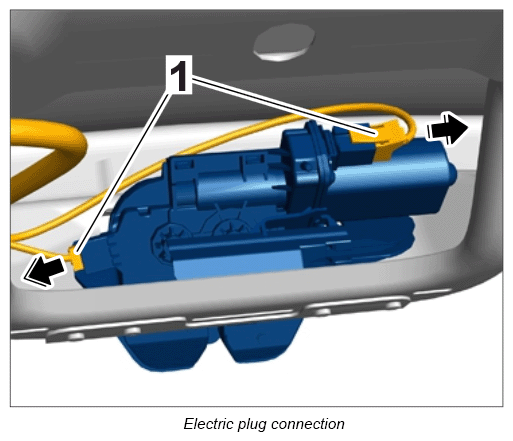

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

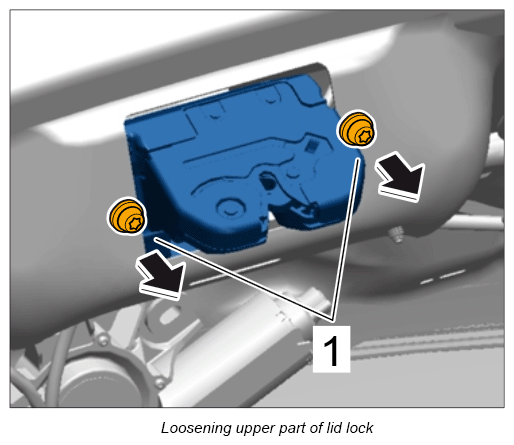

Unscrew and remove fastening screws -1- for upper part of rear lid lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper part of lid lock from the rear lid.
