Replacing Backrest Frame

NOTE:

The required steps can vary depending on equipment.

The instructions provided in the document are for vehicles with the maximum possible equipment.

Remove padding for front backrest. → 741719 REMOVING AND INSTALLING PADDING FOR FRONT BACKREST - SECTION ON "REMOVING"

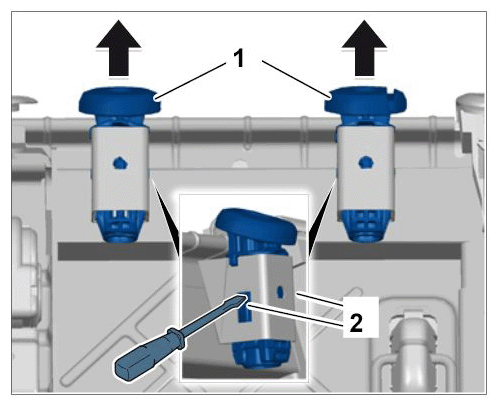

Remove headrest guide -1- .
1. 2.1. Press in fixing clips -2- on the left and right and pull headrest guide up and out -arrow- .

  Removing headrest guide
Remove lumbar support. → 723419 REMOVING AND INSTALLING LUMBAR SUPPORT - SECTION ON "REMOVING"
Remove air cushion for backrests. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - SECTION ON "REMOVING"
Remove motor for air cushion. → 723919 REMOVING AND INSTALLING MOTOR FOR AIR CUSHION - SECTION ON "REMOVING"
Remove suction fan for backrest surface. → 741619 REMOVING AND INSTALLING SUCTION FAN FOR BACKREST SURFACE - SECTION ON "REMOVING"
Remove side airbag. → WM 696319 REMOVING AND INSTALLING SIDE AIRBAG (EXCEPT MACAN SPORT EDITION)
Remove wire harness for backrest.
Replace backrest frame.
Position wire harness for backrest.
Install side airbag. → WM 696319 REMOVING AND INSTALLING SIDE AIRBAG (EXCEPT MACAN SPORT EDITION)
Install suction fan for backrest surface. → 741619 REMOVING AND INSTALLING SUCTION FAN FOR BACKREST SURFACE - SECTION ON "INSTALLING"
Install motor for air cushion. → 723919 REMOVING AND INSTALLING MOTOR FOR AIR CUSHION - SECTION ON "INSTALLING"
Install air cushion for backrest. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - SECTION ON "INSTALLING"
Install lumbar support. → 723419 REMOVING AND INSTALLING LUMBAR SUPPORT - SECTION ON "INSTALLING"
Install headrest guide.
Install padding for front backrest. → 741719 REMOVING AND INSTALLING PADDING FOR FRONT BACKREST - SECTION ON "INSTALLING"
