Removing Air Cushion For Backrest

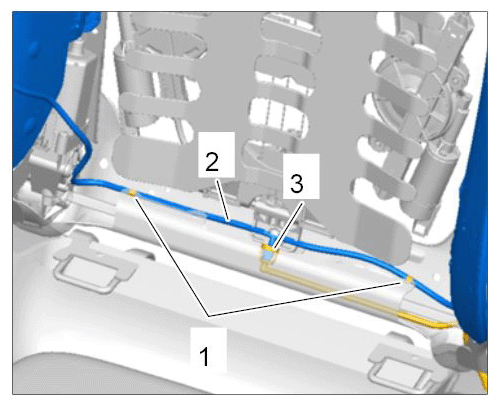

- Open connection point on the air cushion -3-
and cut tie-wrap -1-
on the pressure line -2-
.
Disconnecting pressure line

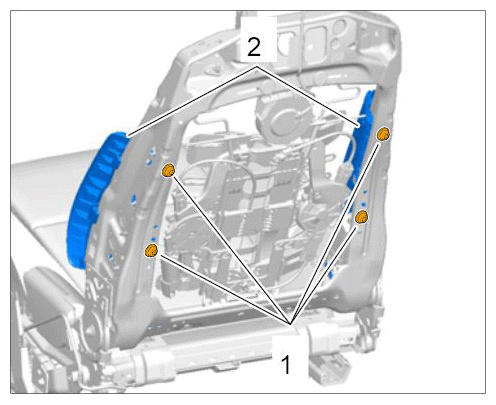

- Loosen fastening screws -1-
on holder for air cushion for backrest -2-
.
Detaching air cushion for backrest

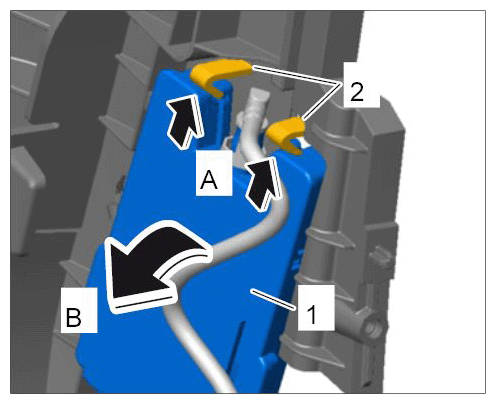

- On the left side, release locking mechanisms -2-
on the control valve -1-
(-A-
) and remove control valve -B-
.
Disconnecting control valve
- Remove air cushion for backrest.
