Installing Padding For 1/3 Split Folding Rear Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

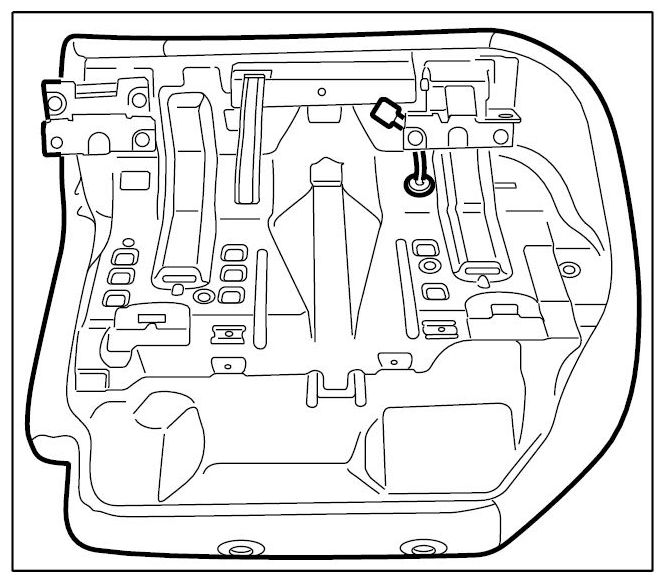

Fig 1: Identifying 1/3 Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cover for rear seat. → Installing Cover For 1/3-Split Folding Rear Bench

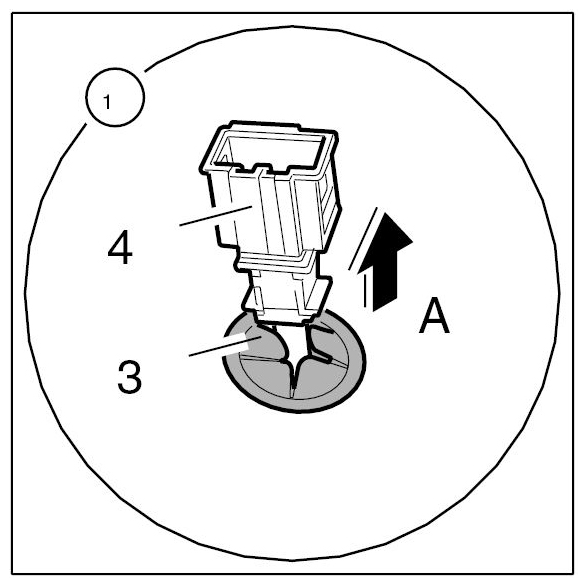

Fasten wire harness for heated seats (only for vehicles with heated seats): Insert connector -4- into the seat frame and fit the grommet -3- -Arrow A- .

Fig 2: Inserting Connector Into Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

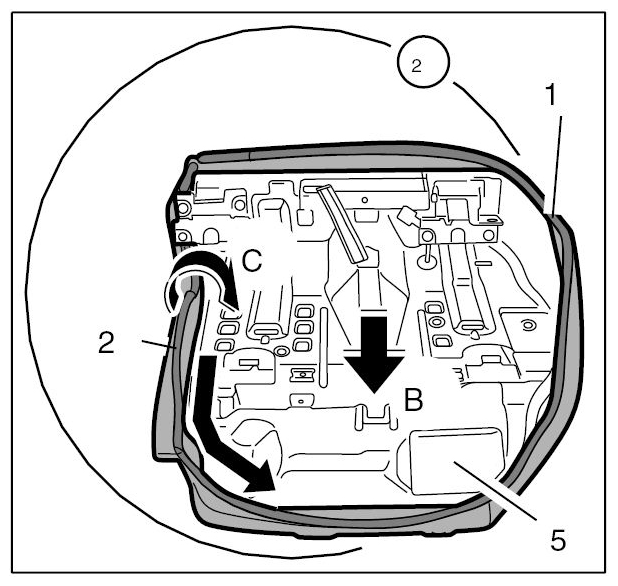

Install padding: Place seat frame -5- on the padding with cover -1- and align -Arrow B- .

Fig 3: Placing Seat Frame On Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

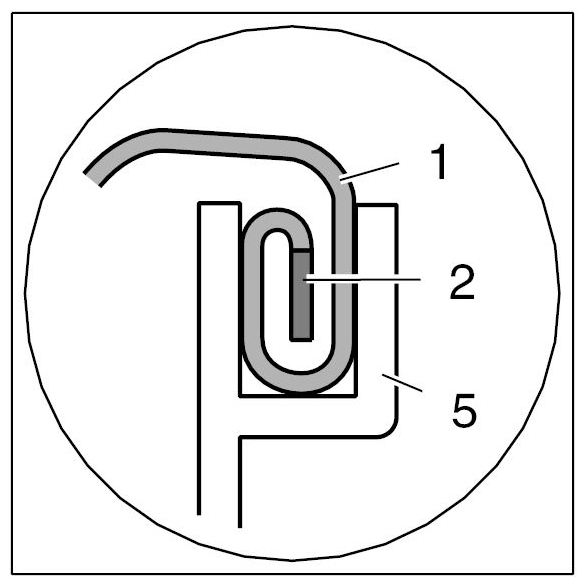

Press piping -2- of cover for rear seat -1- completely into the seat frame in direction of arrow -Arrow C- .

Fig 4: Identifying Rear Seat And Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Pressing Rear Seat Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear seat. → Installing back seat
