Installing Back Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

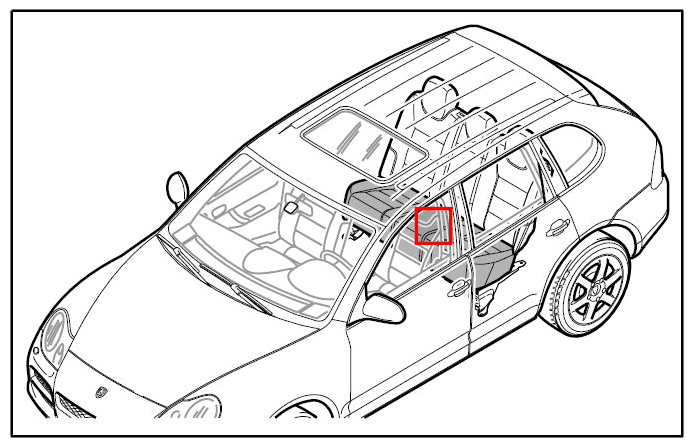

Fig 1: Identifying Back Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

To position the rear seats, unfold hinge parts on the rear seats and place seats in a raised position. .

Fig 2: Placing Seat In Raised Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -3- , -3- and -3- and tighten to the specified tightening torque. → Tightening torque: 50 Nm (37 ft lbs.)+10 Nm (+7.5 ft lbs.)

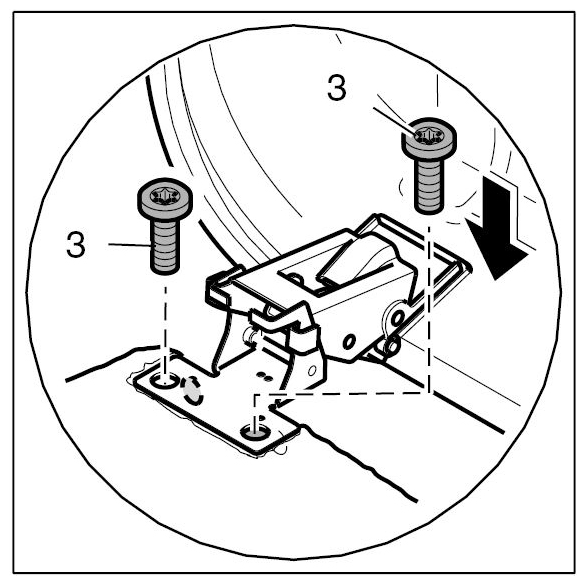

Fig 3: Installing Seat Heater Fastening Screws (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

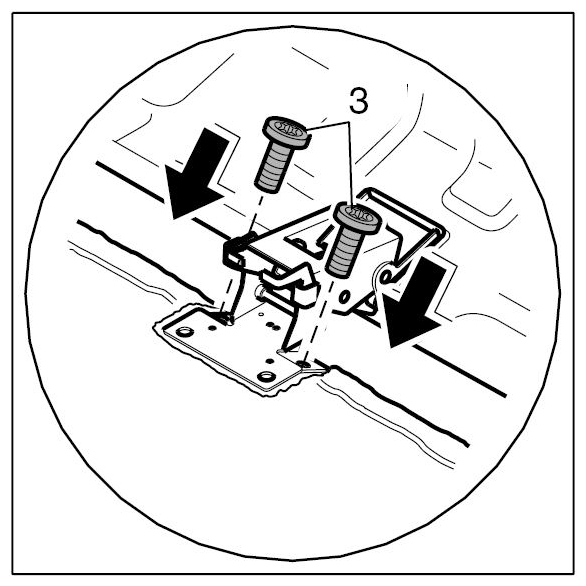

Fig 4: Installing Seat Heater Fastening Screws (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

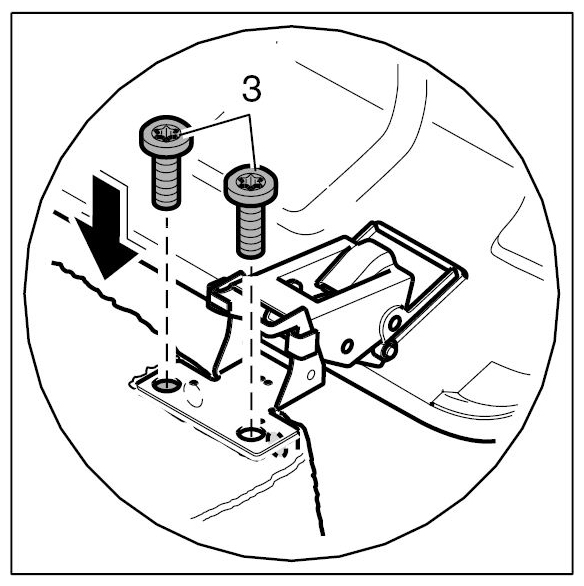

Fig 5: Installing Seat Heater Fastening Screws (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only for vehicles with seat heating: Clip in connector -arrow A- .

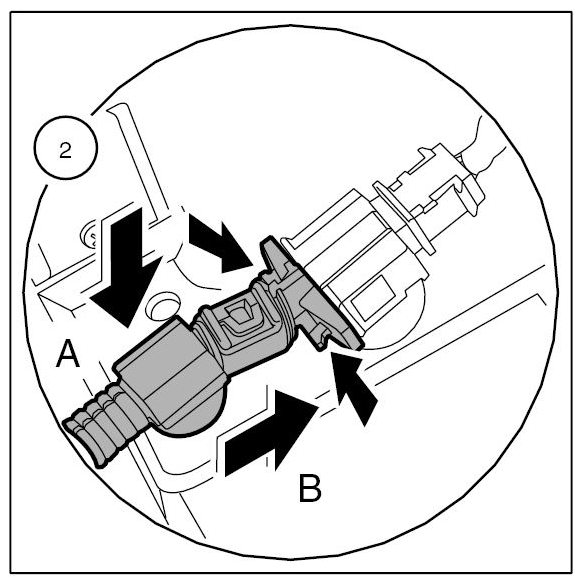

Fig 6: Installing Seat Heater Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert plugs -arrow B- until the locking tabs engage audibly -arrows- .

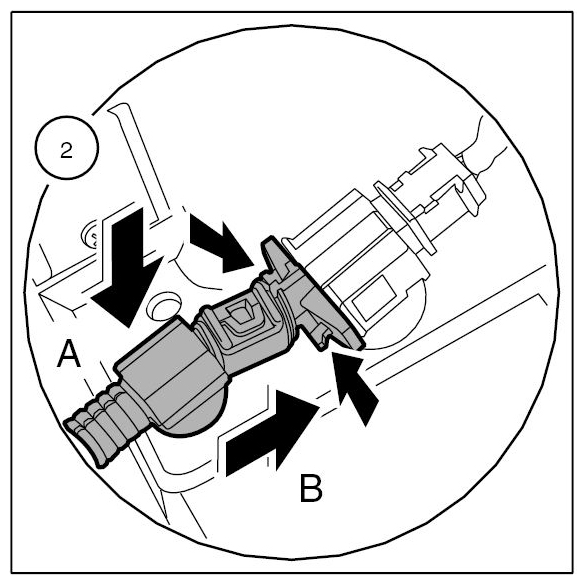

Fig 7: Engaging Seat Heater Connector Tab
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold down rear seats -1, 2- and lock them.

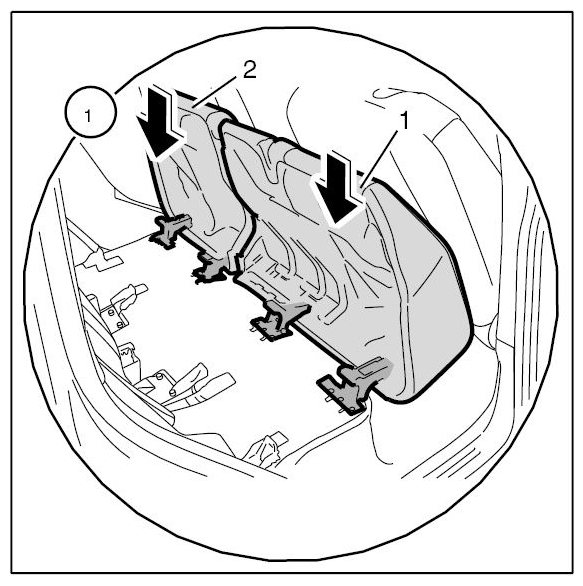

Fig 8: Folding Down Rear Seats
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
