Installing Cover For 1/3-Split Folding Rear Bench

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

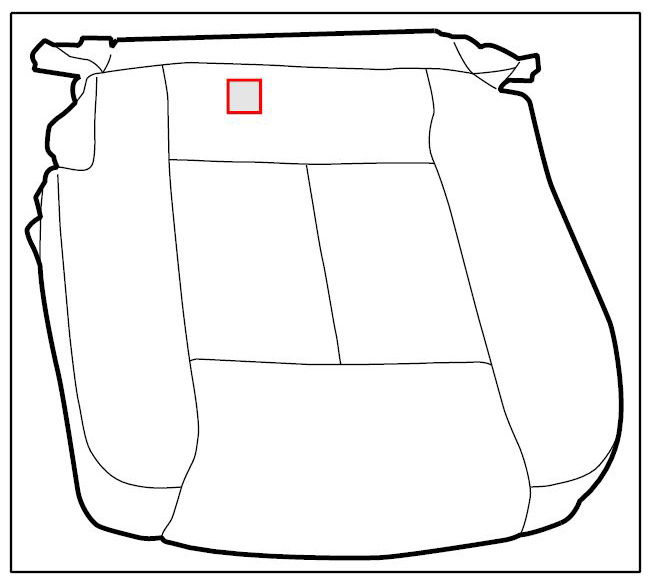

Fig 1: Identifying 1/3-Split Folding Rear Bench Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cover: Place cover -3- on the padding -arrow A- and align with the contour of the padding.

Fig 2: Placing Cover -3 On Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

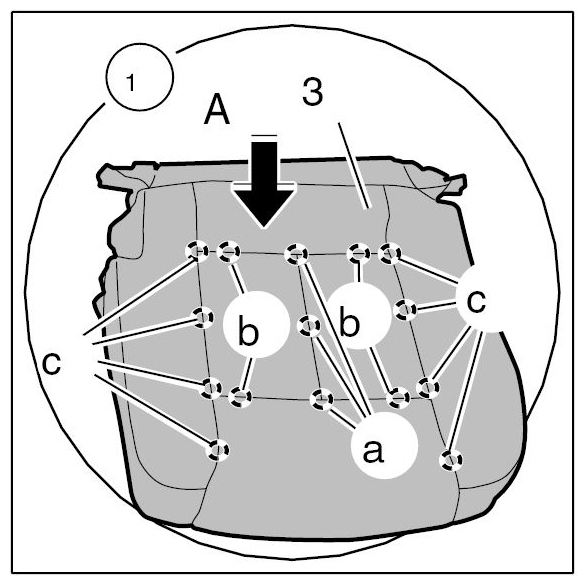

Fasten cover to the padding -3- using cushion clip pliers -4- and new cushion clips -2- in the sequence shown -a to c-. Cushion clip pliers Nr.130

Fig 3: Fastening Cover To Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

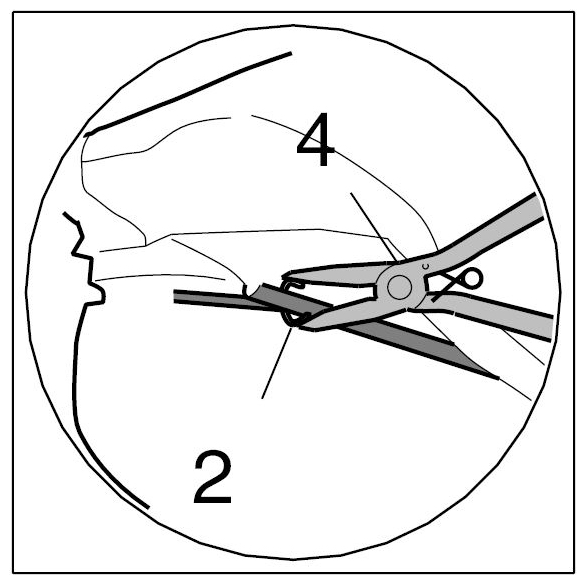

Fig 4: Installing Cushion Clips Using Cushion Clip Pliers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

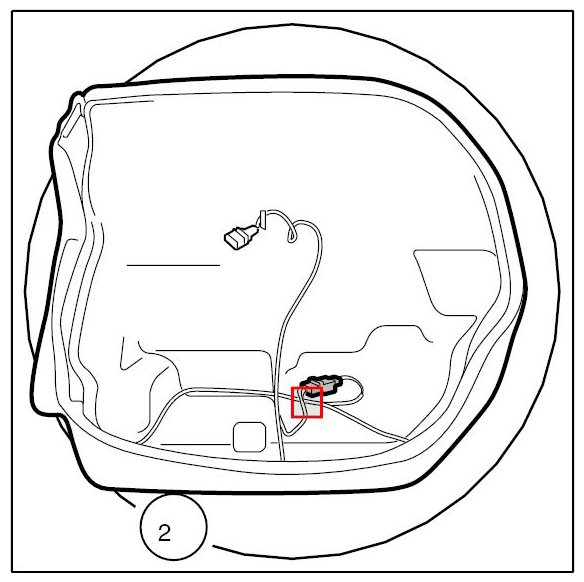

Fig 5: Installing Cover For 1/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug connection (only for vehicles with seat heater).

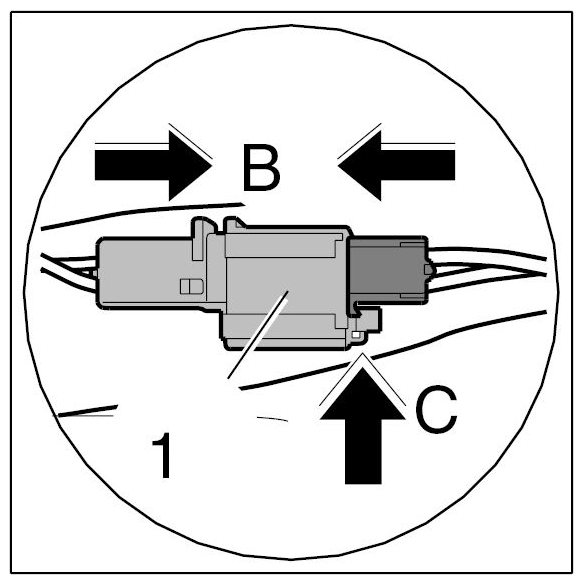

1. 3.1. Push together the plug connection -1- -arrows B- until the locking tab audibly engages -arrow C- .

  Fig 6: Pushing 1/3-Split Folding Rear Seat Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for rear bench. → Installing Padding For 1/3 Split Folding Rear Seat

Model year as of 2003
