Installing Rear Antenna, Centre Console (A)
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

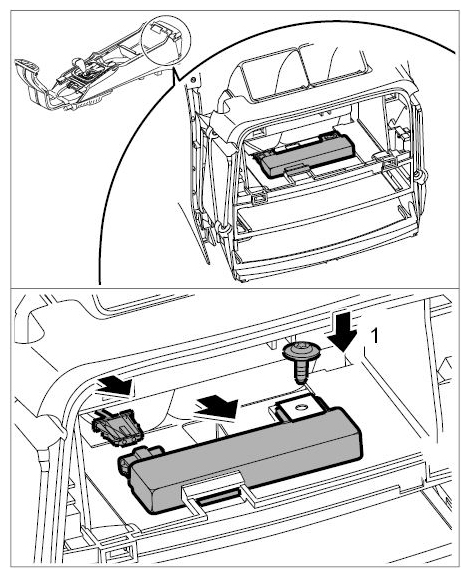

- Push connector on antenna until lock is felt to engage.
- Insert antenna in centre console and engage.
- Screw in and tighten fastening screw -arrow 1- . → Tightening torque: 4 ftlb.
- Insert the cup holder until the locking tab is felt to engage.
- Push in shelf until it is felt to engage.
Information
- For vehicles with seat heating, install the oddments tray together with the regulators for rear seat heating . → Installing regulator for rear seat heating
- For vehicles with air-conditioning, install the control unit for the air-conditioning system . → Installing control unit for auxiliary air conditioner
