Installing Control Unit For Auxiliary Air Conditioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Press electrical plugs into control module until they are felt to engage.

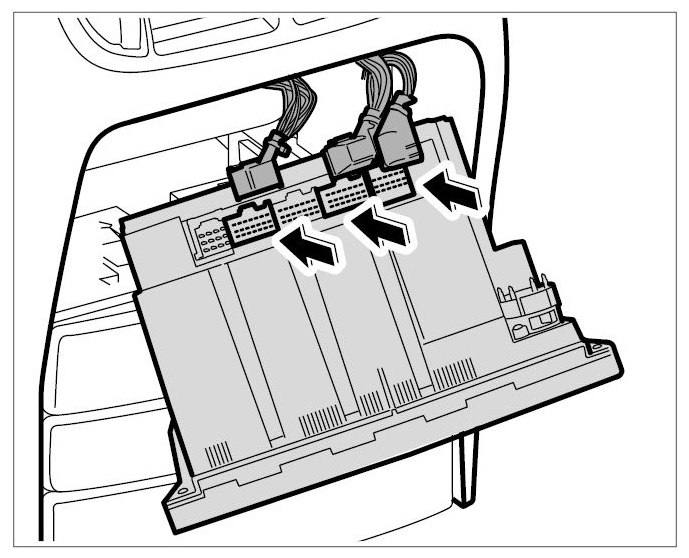

Fig 1: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully slide the control unit into the installation slot, paying attention to the electrical leads.

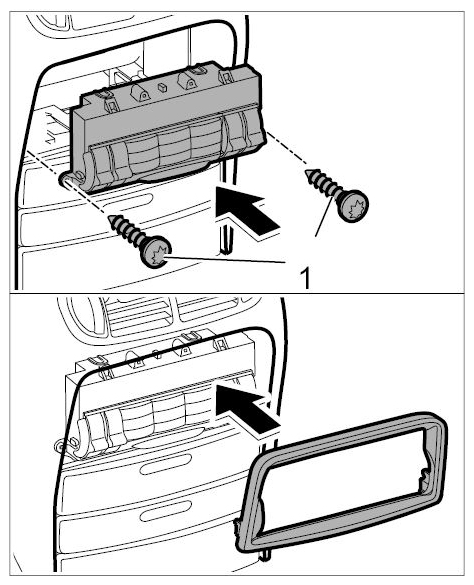

Fig 2: Installing Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the two fastening screws -1- .
Fit the covering frame and press into place until it is felt to engage.
