Removing Rear Wheel Bearing

Component overview of wheel bearing

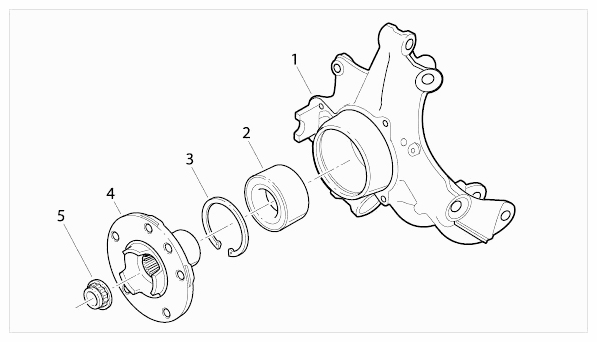

Fig 1: Identifying Wheel Bearing Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. -1- - Wheel bearing housing (Carry out a close visual inspection of the seat of the wheel bearing. There must be no scores, grooves or similar deformations.)
2. -2- - Wheel bearing (The wheel bearing can no longer be used once it is removed. Use a new wheel bearing. Do not press on the inner race. Insert the wheel bearing with the magnetic multiple-pole ring towards the drive shaft. Check the magnetic side (e.g., with a paper clip). Do not use magnets or screw drivers for the check!
3. -3- - Circlip (Use new circlip.)
4. -4- - Wheel hub (Pull inner race off separately from the wheel bearing. Carry out a close visual inspection of the seat of the wheel hub. There must be no scores, grooves or similar deformations on the hub.)
5. -5- - Axle nut (Lock nut - always replace. Grease contact surface with a little Optimoly TA. Use the specified tightening torque.)

1. Release brake caliper and hang at a suitable place in the wheel housing.
2. Remove brake disc → Removing rear brake disc .

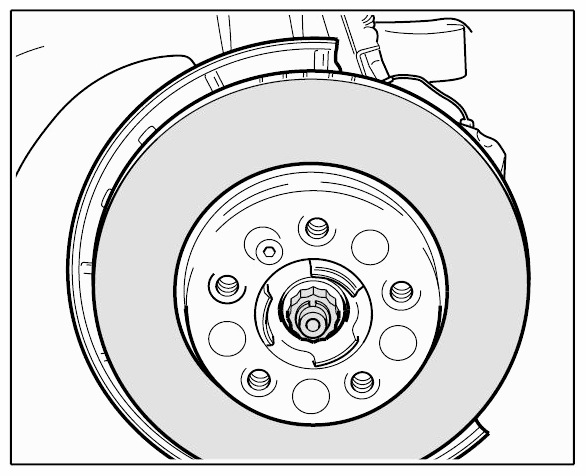

   Fig 2: Identifying Rear Brake Disc

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disengage the cable of the foot-operated parking brake and remove the brake shoes.
4. Remove wheel speed sensor -siehe Abbildung-  → Removing Speed Sensor .

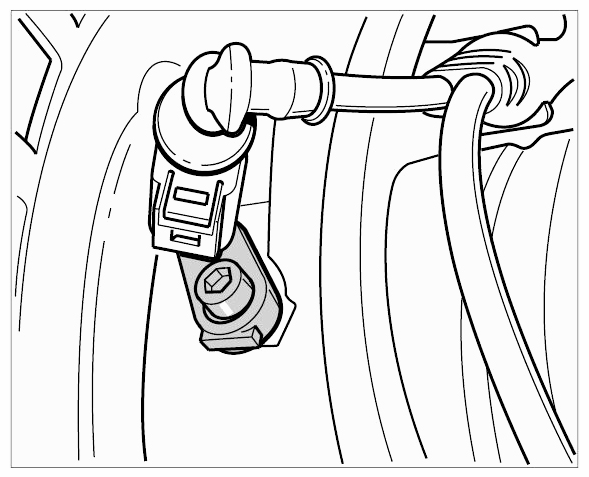

   Fig 3: Removing Wheel Speed Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove wheel hub (tools).

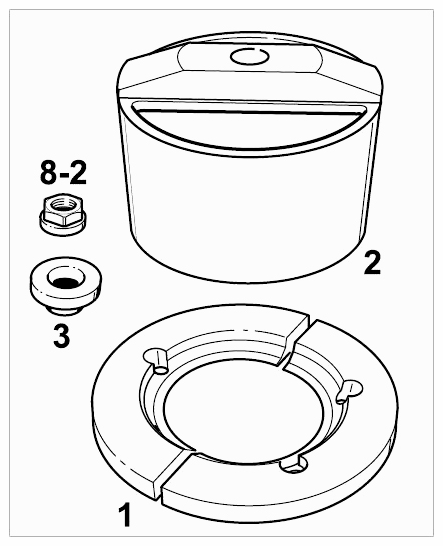

   Fig 4: Identifying Wheel Hub (Tools)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

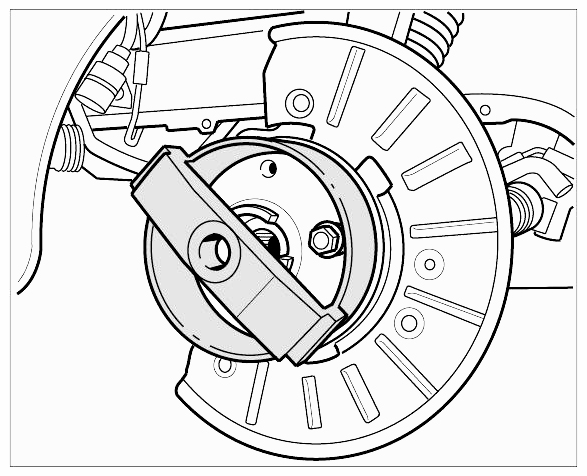

6. Secure the grip pieces (two half shells) (from attachments T10205  ) with several wheel bolts behind the wheel hub.

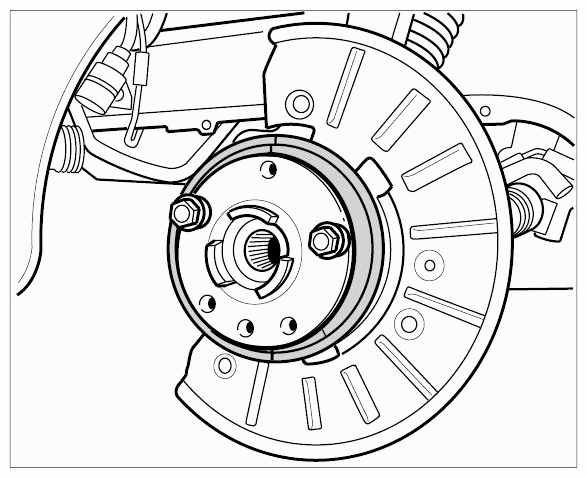

   Fig 5: Securing Grip Pieces With Wheel Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Insert the T10205/2 bell (from attachments T10205  ) at the correct position in the groove provided.
   Fig 6: Inserting T10205/2 Bell On Correct Position Of Groove

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

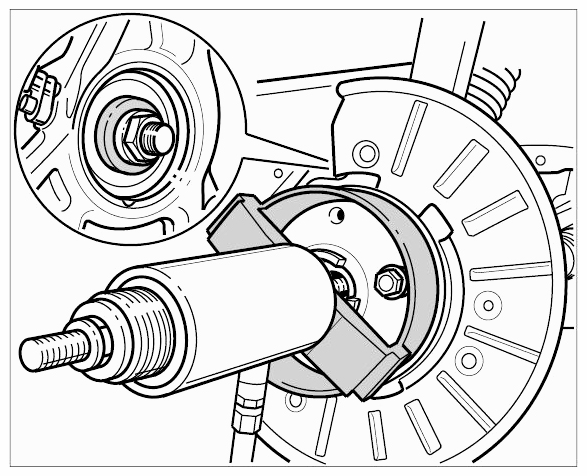

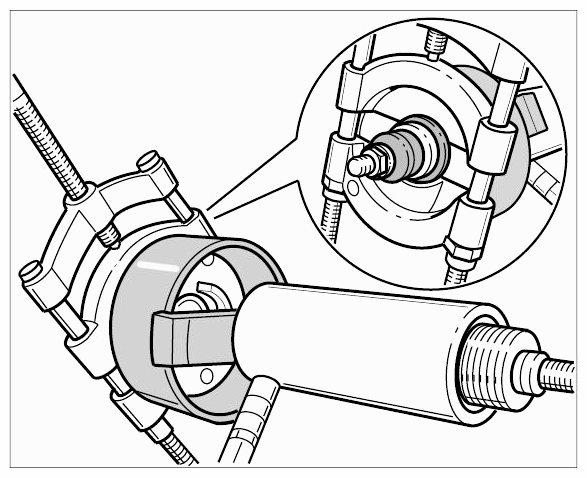

8. Insert the tubular piston cylinder VAS 6178.  Position the T10205/3 pressure piece (from attachments T10205  ) and the T10205/8-2 threaded nut (from attachments T10205  ). Press out the wheel hub.
   Fig 7: Inserting Tubular Piston Cylinder VAS 6178

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ensure that the separating device does not press on the seat of the bearing inner race on the wheel hub.

   Fig 8: Removing Wheel Bearing From Wheel Hub

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

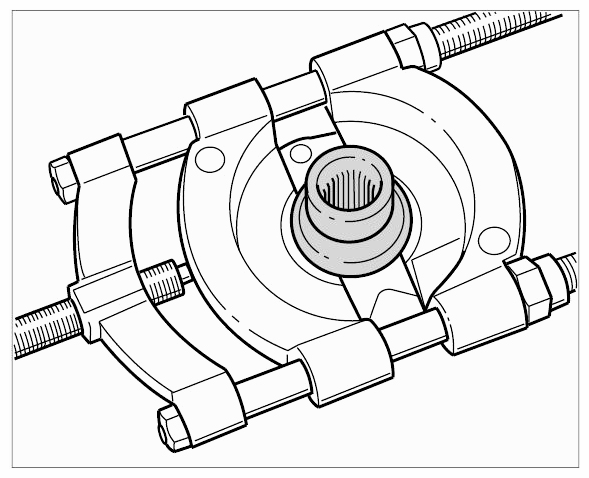

9. If the wheel hub is used again, remove the → see Fig 9 inner race of the wheel bearing from the wheel hub. To do this, position the separating device 12 - 115 mm ø Nr.111  behind the inner race.

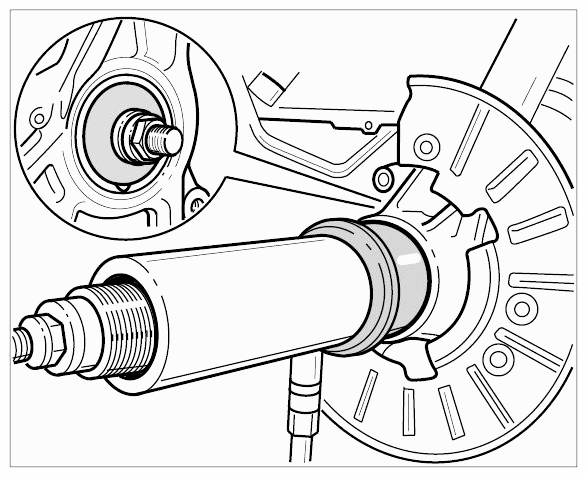

10. Press inner race off the wheel hub. To do this, position the T10205/2 bell (from attachments T10205  ) without the grip piece. Insert the tubular piston cylinder VAS 6178.  Position the T10205/3 pressure piece (from attachments T10205  ) and the T10205/8-2 threaded nut (from attachments T10205  ).
    Fig 9: Inserting Tubular Piston Cylinder VAS 6178

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Remove the circlip -arrow-  .

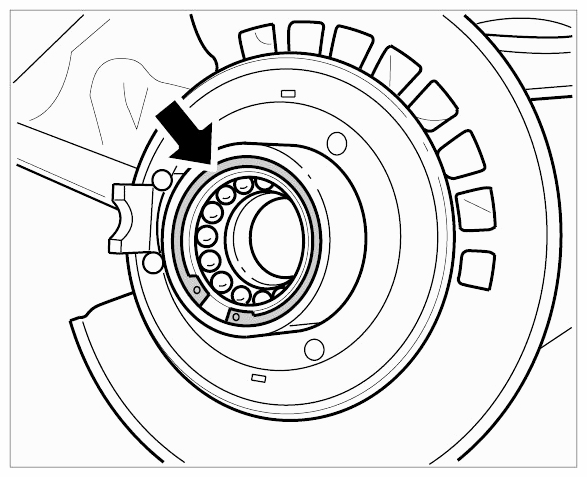

    Fig 10: Locating Circlip

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Remove the wheel bearing (tools).

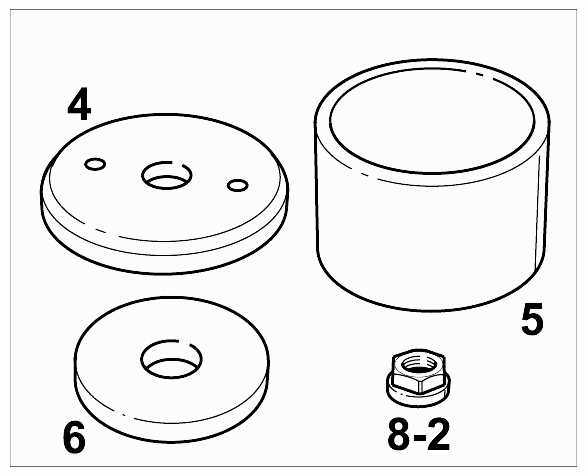

    Fig 11: Identifying Wheel Bearing (Tools)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Press out the wheel bearing. To do this, position the T10205/4 mounting (from attachments T10205  ) and the T10205/5 pipe (from attachments T10205  ) in the correct position on wheel bearing housing. Insert the tubular piston cylinder VAS 6178.  Position the T10205/6 pressure disc (from attachments T10205  ) and the T10205/8-2 threaded nut (from attachments T10205  ).
    Fig 12: Inserting Tubular Piston Cylinder VAS 6178

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
