Removing Speed Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

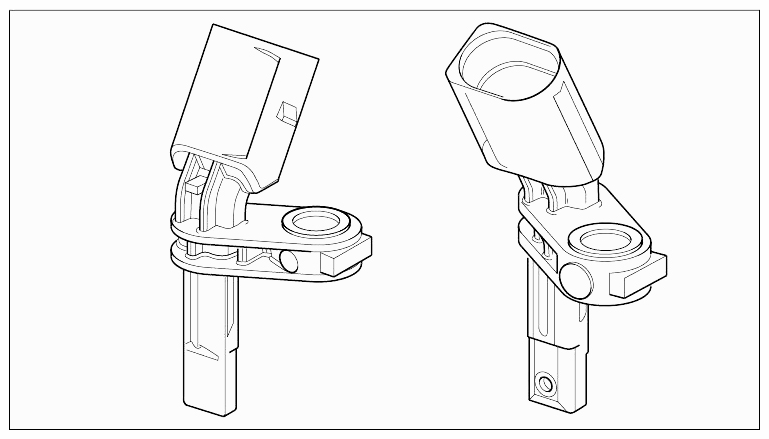

Fig 1: Identifying Speed Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

At the front, turn the steering so far that the speed sensor is made more easily accessible. The wheel in the rear does not need to be removed.

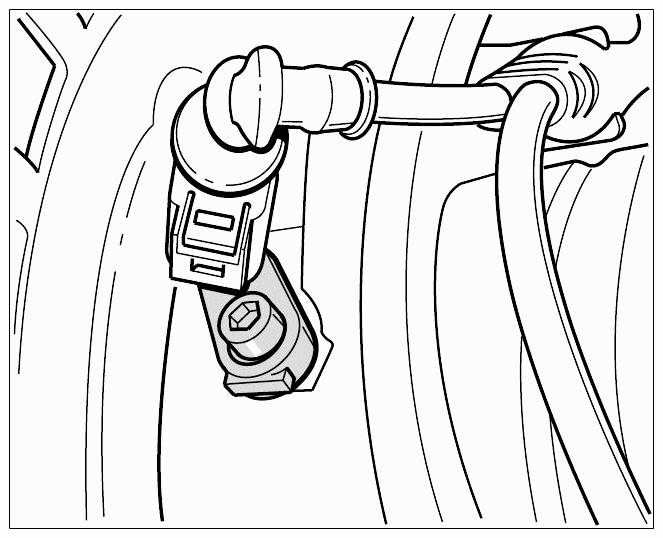

Fig 2: Identifying Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect speed sensor connector.

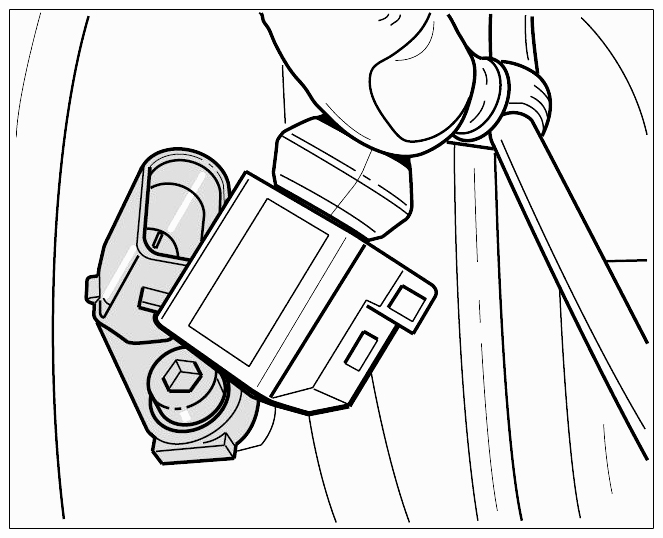

Fig 3: Identifying Speed Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws and remove speed sensor.

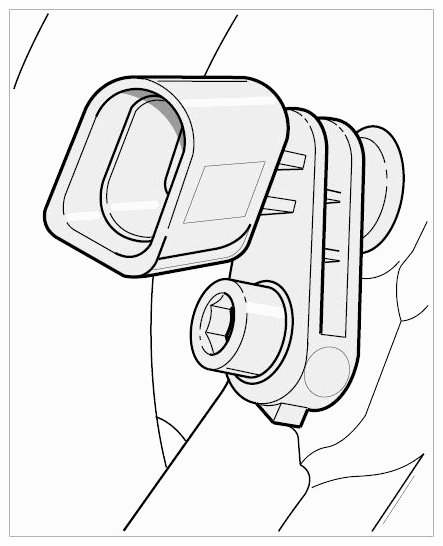

Fig 4: Identifying Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
