Removing Rear Brake Disc

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect plug connection for brake pad wear indicator on wheel carrier.
  2. Remove screw plug -arrow-  . The adjustment device can be turned through this bore.

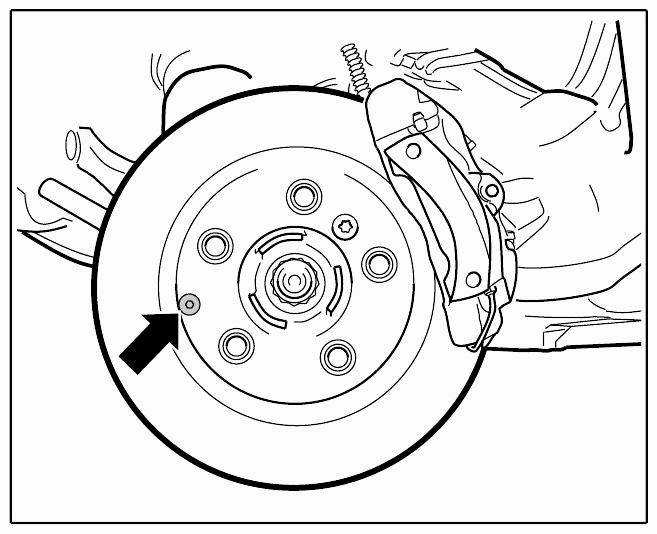

    Fig 1: Locating Rear Brake Disc Screw Plug
    G09419585Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Turn the brake disc in such a way that the adjustment device becomes visible. Insert a → see Fig 2 screwdriver through the bore and turn the adjustment device towards "release".

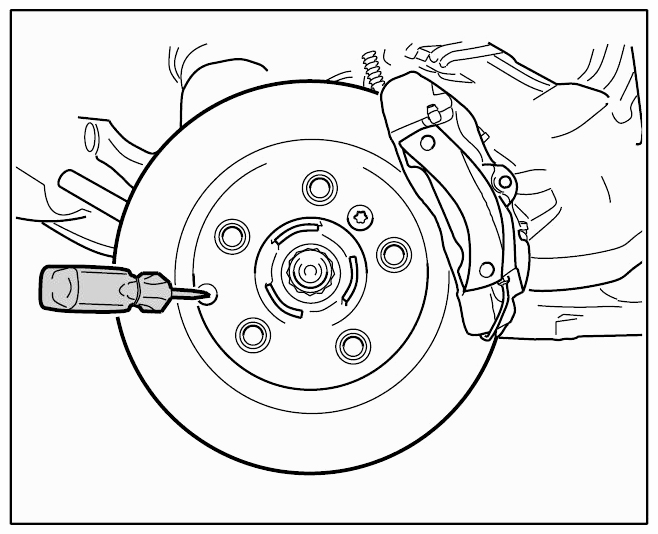

    Fig 2: Inserting Screwdriver Through Brake Disc Bore
    G09419586Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Push brake pad back slightly and evenly with piston resetting fixture (replaces P83) Nr.144  . → see -direction arrow-  .

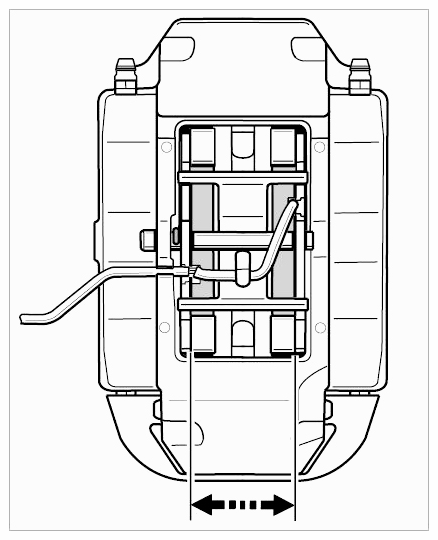

    Fig 3: Pushing Brake Pad
    G09419587Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Undo brake calliper on wheel carrier and hang it in a suitable place in the wheel well (do not open brake hydraulics!). But first pull out the electric lines from the holder on the brake calliper and the brake pad wear line from the holder on the wheel carrier.
  6. Remove brake disc after unscrewing the fastening screw. If necessary, remove the brake disc by tapping it gently with a rubber hammer.
