Preliminary Work

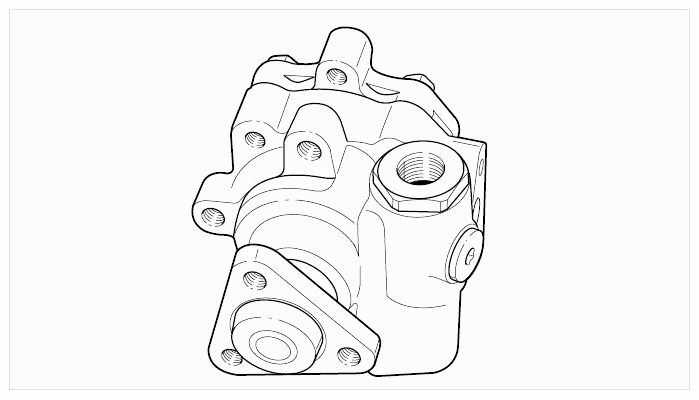

Fig 1: Identifying Hydraulic Pump (Pulley Removed)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The engine does not need to be removed to remove and install the hydraulic pump.

Information

• Cayenne Turbo only: Before removing the cover of the air cleaner box, the intake manifold of the turbocharger must be disengaged from the air cleaner housing.
• Loosen the pulley of the hydraulic pump before removing the drive belt.

1. Remove left front wheel. Removing and installing wheel
2. Remove engine guard. → Removing engine guard

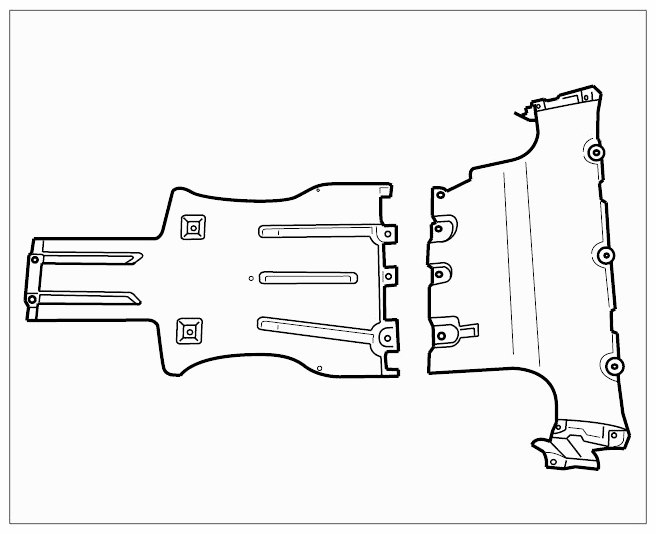

   Fig 2: Identifying Engine Guard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove front left wheel housing liner. Once the air cleaner housing is removed access to the engine compartment becomes available → Removing front wheel housing liner .

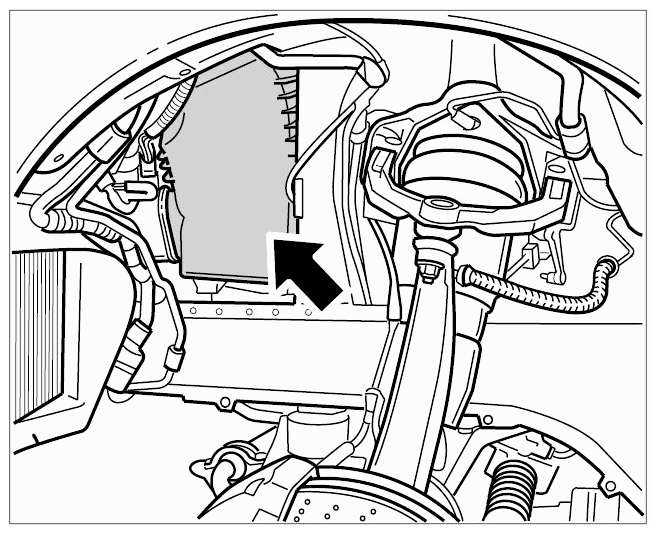

   Fig 3: Locating Air Cleaner Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove the left engine compartment cover. → Removing front trim (engine compartment)
