Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

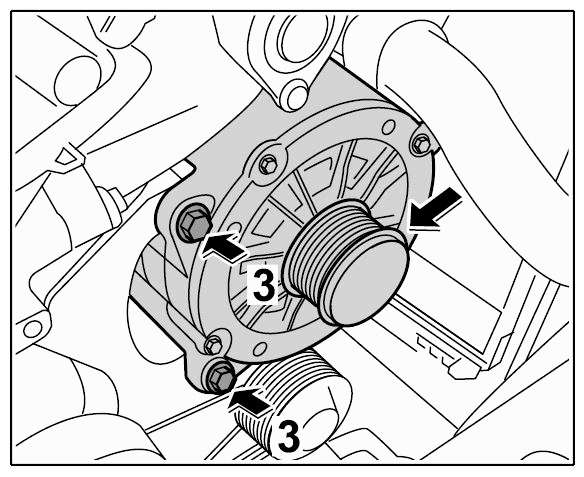

  1. Place the generator in installation position -arrow-  and secure with the fastening screws -arrows 3-  . For details, see → Installing The Generator
    Fig 1: Installing Generator
    G09410117Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit belt tensioner. Tighten the three screws on the belt tensioner. → Tightening torque: 25 Nm (19 ftlb.)
  3. Fit drive belt. For details, see → WM 137819 REMOVING AND INSTALLING DRIVE BELT ON V6 DFI ENGINES
  4. Fit air-cleaner element and air cleaner housing cover. → Removing And Installing Air-Cleaner Element
  5. Install intake manifold. → Installing Air Box For Throttle Housing (Intake Pipe Upstream Of Throttle Valve)
  6. Press design cover onto the throttle valve.
  7. Fit engine compartment cover. → Installing front trim (engine compartment)
