Installing Rear Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

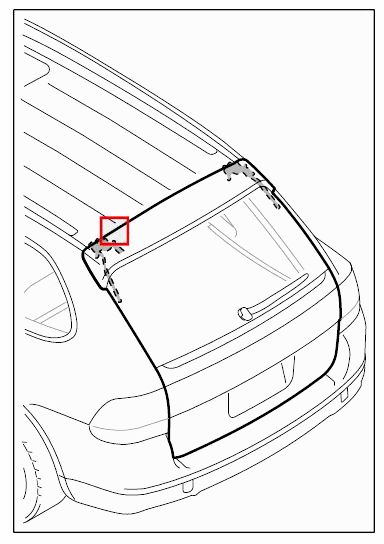

Fig 1: Identifying Rear Lid Hinge Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install lid hinge.
1. 1.1. Insert lid hinge -3- from the rear.
2. 1.2. Screw on the two top fastening screws -2- without tightening them.
3. 1.3. Position the lid hinge -3- according to the old marks, or position it in the centre position if the relevant body parts have been replaced.
  Information

  You can check the centre position based on the two top screw holes.
4. 1.4.
5. 1.5. Screw in the two bottom fastening screws -2- and then tighten all fastening screws -2- to the specified torque → Tightening torque: 25 Nm (19 ft lbs.)+/-2.5 Nm (+/-2.0 ft lbs.).

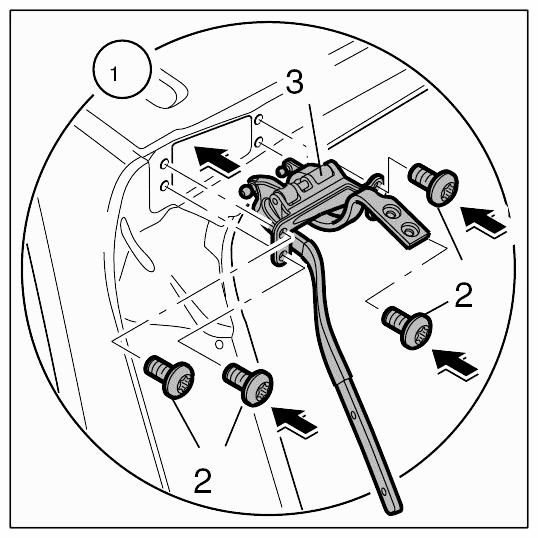

  Fig 2: Installing Lid Hinge And Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear gas spring → Installing Pneumatic Spring For Rear Lid .
On vehicles with an automatic rear lid, install actuating cylinder. → Installing Actuating Cylinder For Rear Lid
Install rear lid → Installing Rear Lid .
Install rear window → Installing Rear Window .
Install hinge cover.
1. 5.1. Position and clip in the hinge cover -1- .

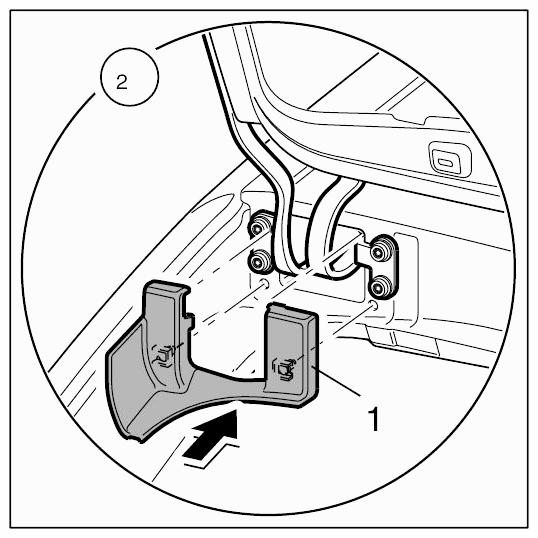

  Fig 3: Installing Hinge Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
