Installing Pneumatic Spring For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Pneumatic Spring For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

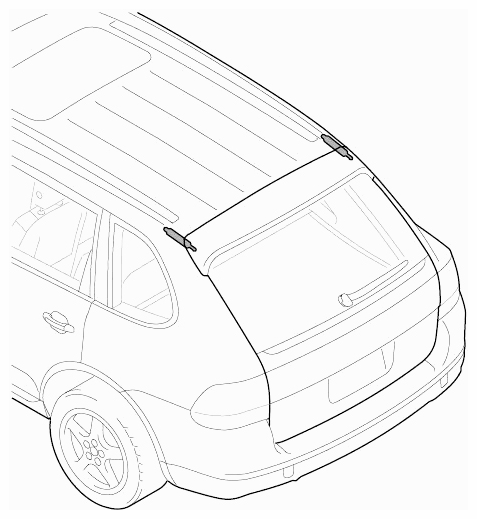

Secure rear lid against accidental closure.

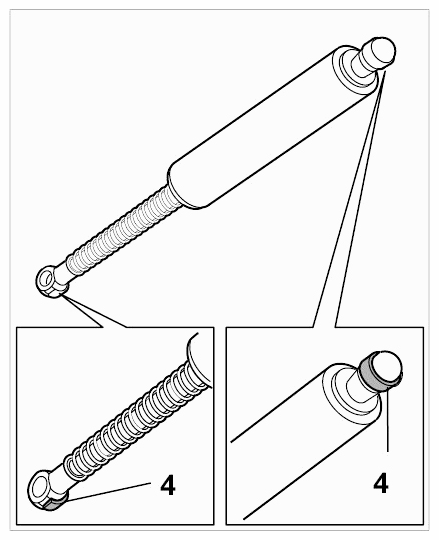

Position safety clips of pneumatic spring for rear lid -4- at ball sockets and snap into place.

Fig 2: Identifying Pneumatic Spring For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

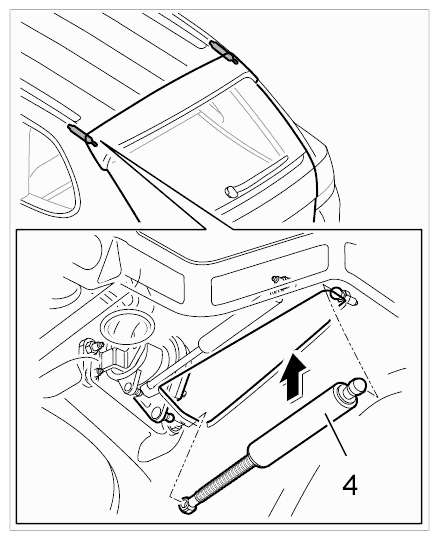

Press pneumatic spring for rear lid -4- onto the ball heads until the safety clips are felt to engage.

Fig 3: Pressing Pneumatic Spring For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

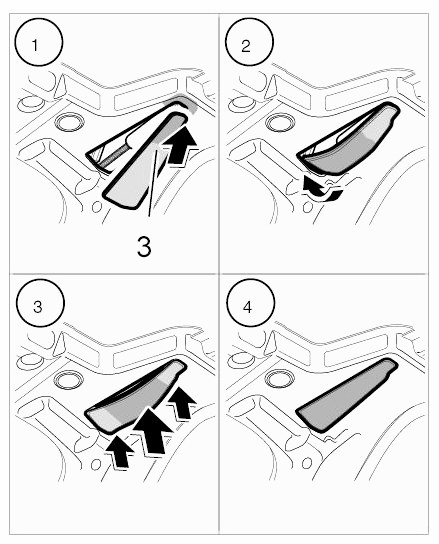

Fit new cover.
1. 4.1. Position cover -3- at the front, bend out slightly and insert into the opening at the back.
2. 4.2. Press cover down all the way round until the butyl seal of the cover is touching the body evenly.
3. 4.3. Check that the cover makes contact all the way round and is not bending inwards.

  Fig 4: Fitting Butyl Seal Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

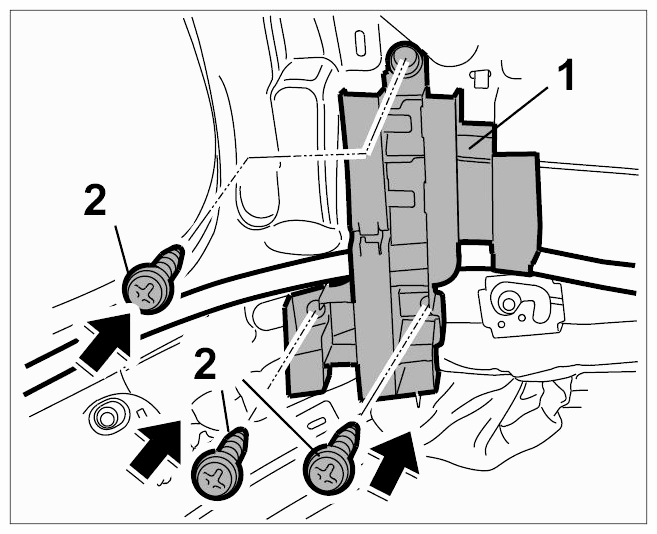

Position and clip in deformation element -1- .

Fig 5: Positioning Clip Deformation Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screws -2- → Tightening torque: 3 Nm (2 ft lbs.).

Fig 6: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
