Installing Rear Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

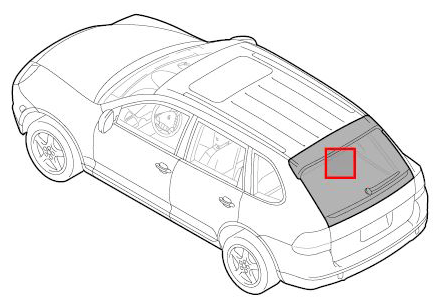

Fig 1: Identifying Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

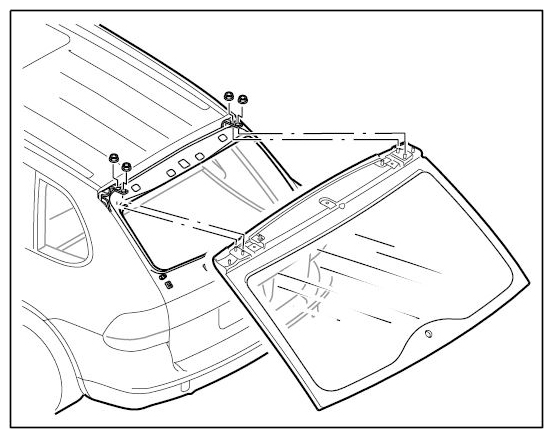

Fig 2: Positioning Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning and fastening rear window
1. 1.1. Position rear window -2- with the help of a second person.
2. 1.2. Screw in fastening nuts -1- and tighten slightly.
3. 1.3. Align rear window and adjust the joint measurements accordingly → TEST AND ADJUSTMENT VALUES .
4. 1.4. Tighten fastening nuts -1- to the specified tightening torque → Tightening torque: 17 ftlb.+/-1.5 ftlb. .

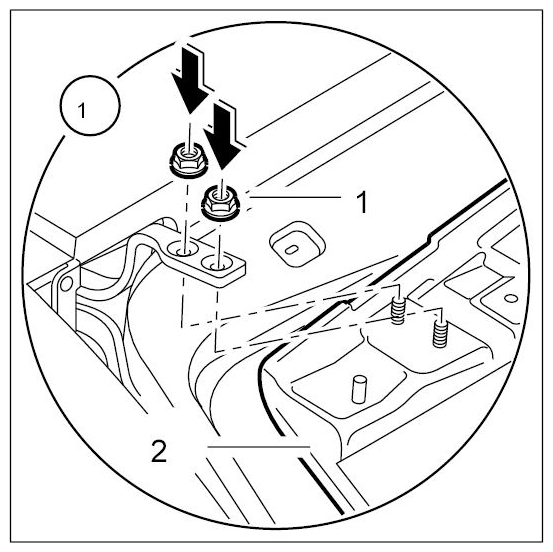

  Fig 3: Screwing Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
