Removing Rear Section Of Cable For Front Lid Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

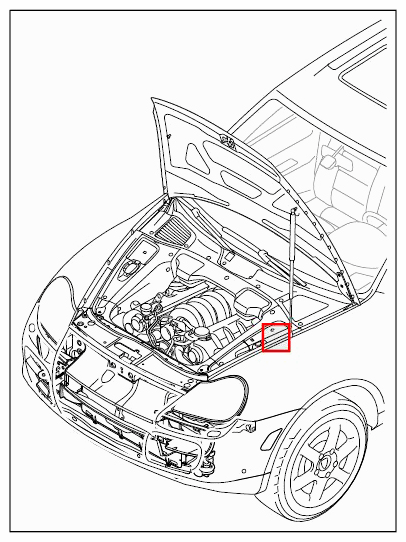

Fig 1: Identifying Rear Section Of Cable For Front Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove release for front lid → Removing Release For Front Lid
Remove front cover (engine compartment) on left → Removing front trim (engine compartment) .
Remove cowl panel cover → Removing cowl panel cover .
Disconnect cable for front lid lock.

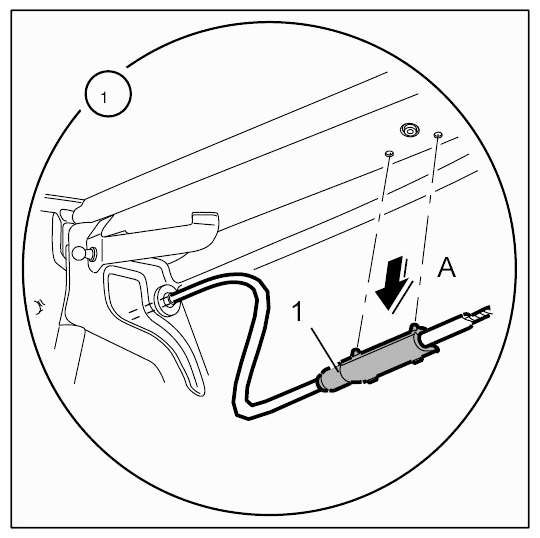

1. 4.1. Unclip the connection piece -1- from the body (-arrow A-).

  Fig 2: Removing Clip Connection Piece From Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

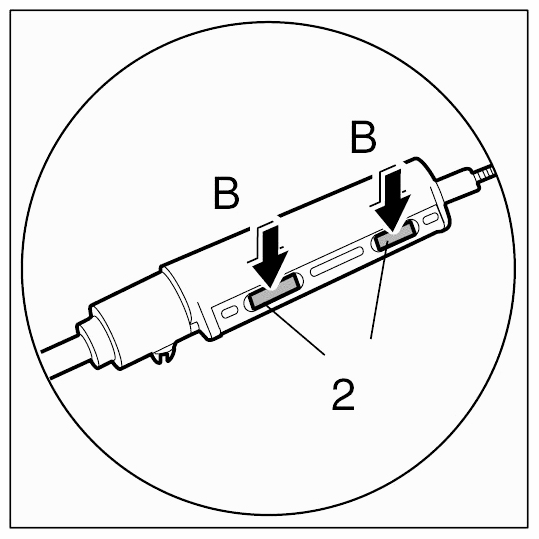

2. 4.2. Release locking lugs -2- (-arrows B-) .

  Fig 3: Removing Locking Lugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

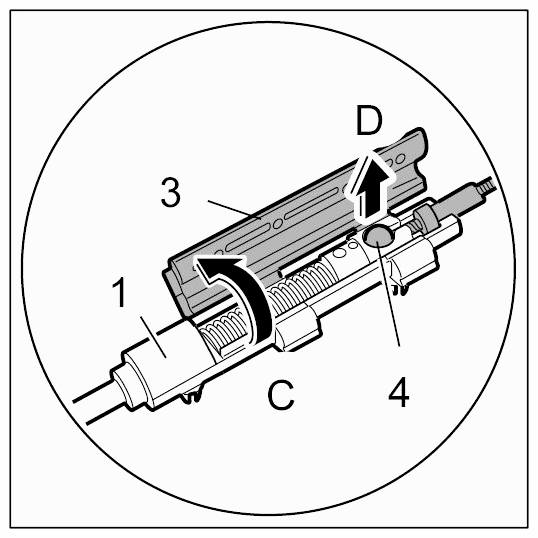

3. 4.3. Open the cover -3- at the connection piece -1- (-arrow C-) and disengage the front section of the cable for the front lid lock -4- (-arrow D-).

  Fig 4: Removing Front Section Of Cable For Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

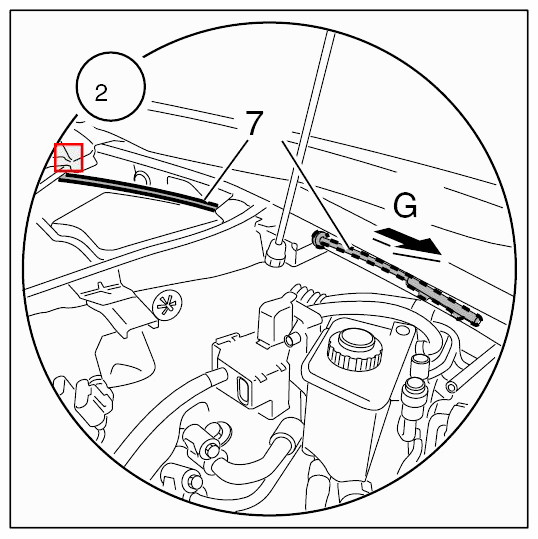

  Fig 5: Pulling Out Rear Section Of Cable For Front Lid Lock (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

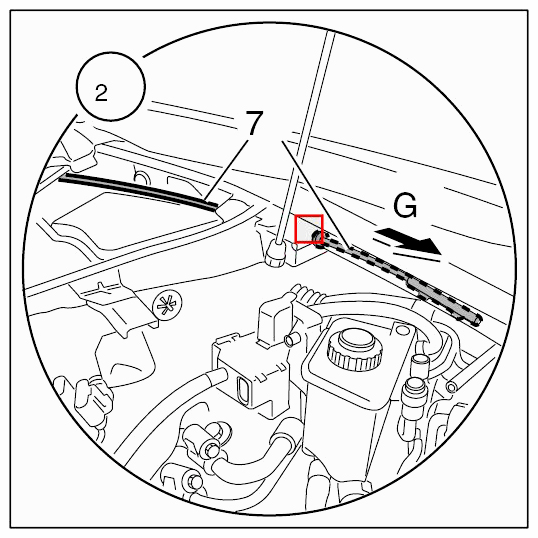

  Fig 6: Pulling Out Rear Section Of Cable For Front Lid Lock (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear section of cable for front lid lock.

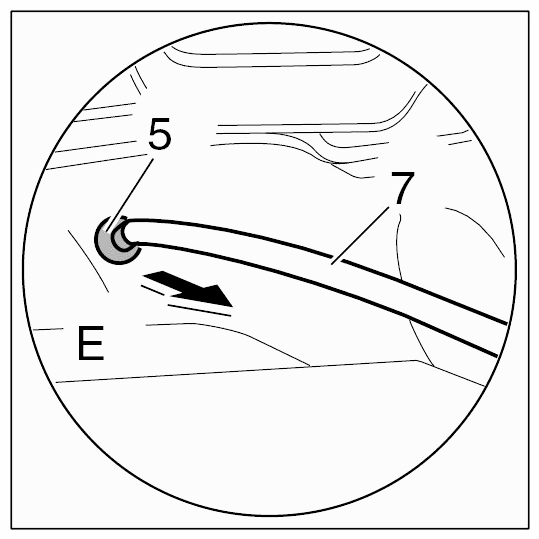

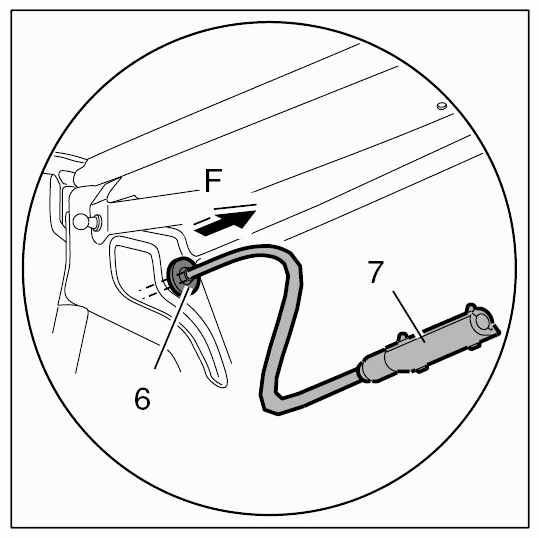

1. 5.1. Pull rubber sleeves -5- and -6- out of the body (-arrow E- and -arrow F-).

  Fig 7: Pulling Out Of Body Rubber Sleeves
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Pulling Out Of Body Rubber Sleeves
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

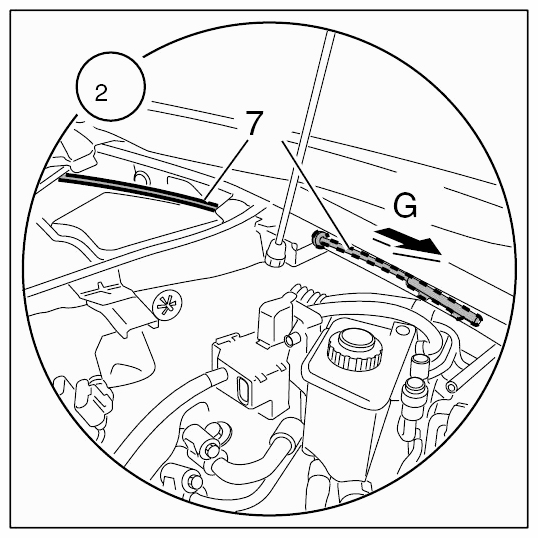

2. 5.2. Pull rear section of cable for front lid lock -7- out of the body (-arrow G-).

  Fig 9: Pulling Out Rear Section Of Cable For Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
