Removing Release For Front Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

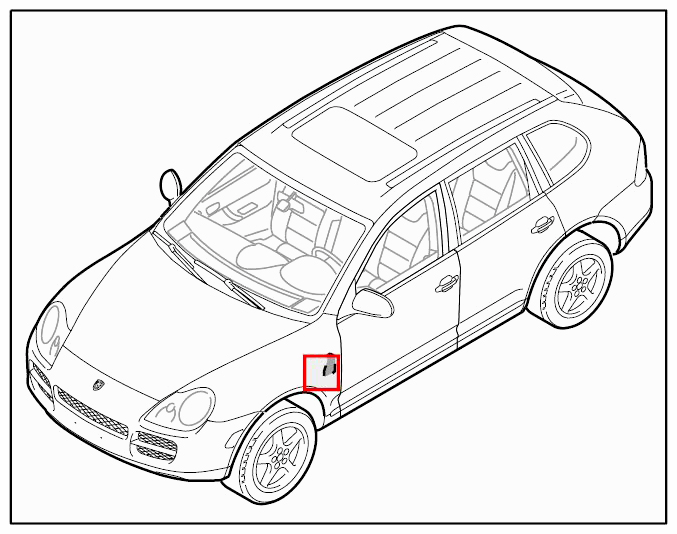

Fig 1: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

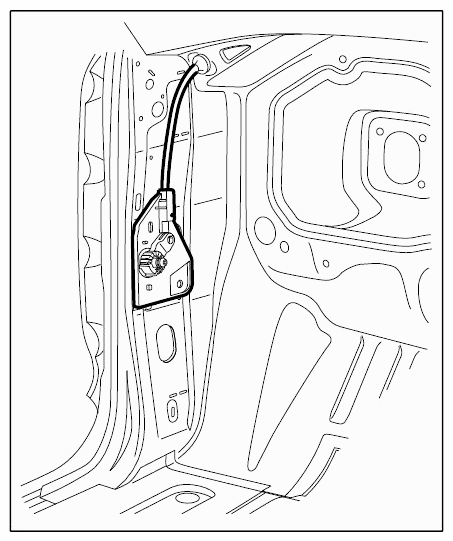

Fig 2: Identifying Front Side Section Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove front side section trim panel → Removing front side section trim .
Release insulating mat.

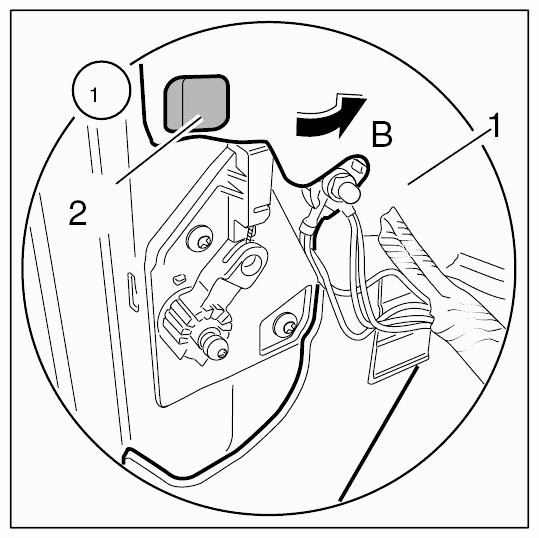

1. 2.1. Unclip fastening clips -2- (-arrow A-) and push insulating mat -1- aside (-arrow B-).

  Fig 3: Pushing Insulating Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

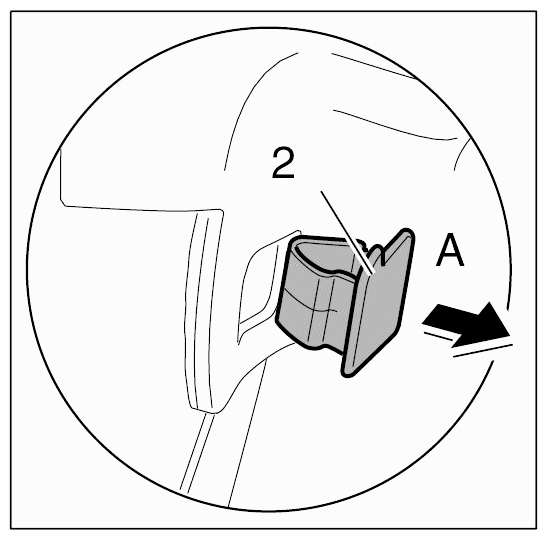

  Fig 4: Removing Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip rear section of cable for front lid lock.

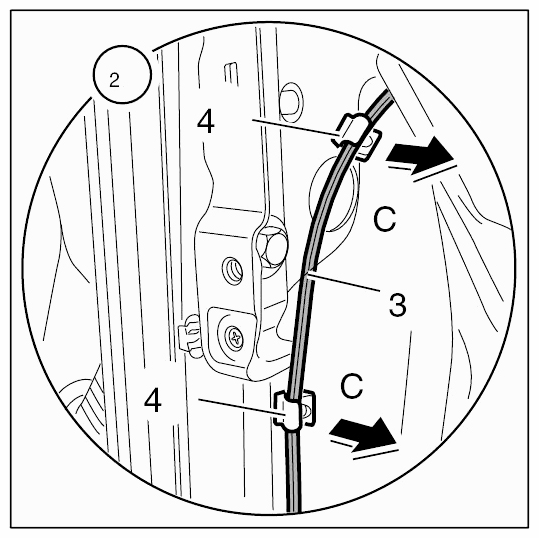

1. 3.1. Unclip rear section of cable for front lid lock -3- at the fastening clips -4- (-arrows C-).

  Fig 5: Removing Rear Section Of Cable For Front Lid Lock And Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove actuating mechanism for front lid.

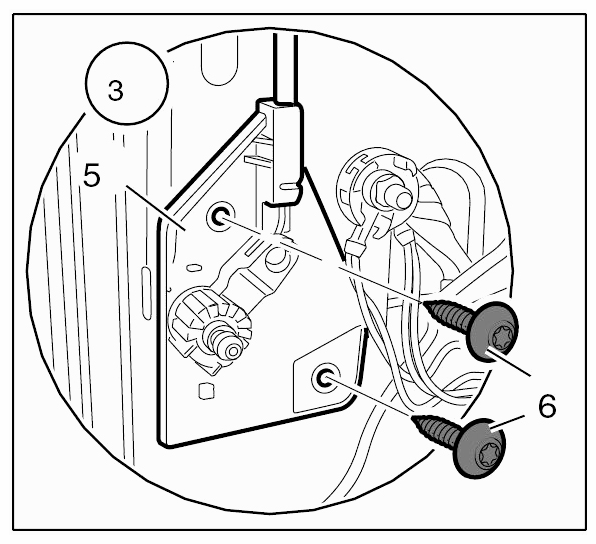

1. 4.1. Undo fastening screws -6- .

  Fig 6: Identifying Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

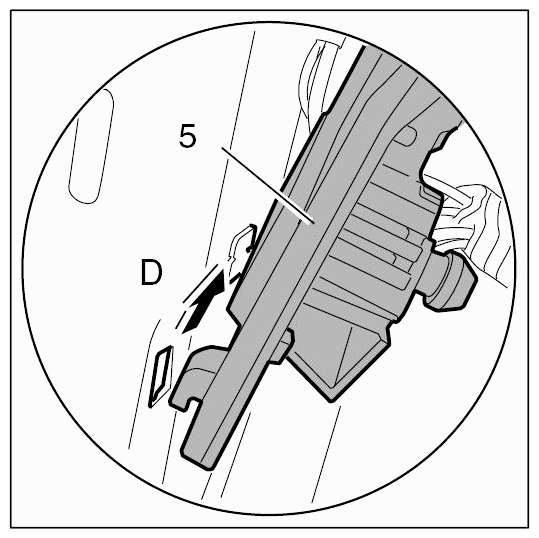

2. 4.2. Pull actuating mechanism for front lid -5- up out of the body (-arrow D-).

  Fig 7: Pulling Actuating Mechanism For Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

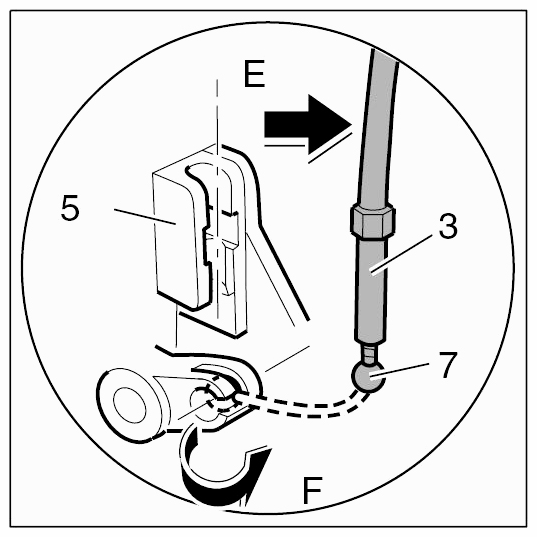

3. 4.3. Unclip rear section of cable for front lid lock -3- at the actuating mechanism for the front lid -5- (-arrow E-) and disengage the ball head -7- (-arrow F-).

  Fig 8: Removing Rear Section Of Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 4.4. Remove actuating mechanism for front lid -5- .

  Fig 9: Identifying Actuating Mechanism For Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
