Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Dispose of fluid in accordance with legal requirements.

Remove the engine. → Removing engine
Remove engine from transmission. → WM 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
Secure engine on mounting bracket. → 1001IN SUPPORTING V6 3.6-LITRE DFI ENGINE ON MOUNTING BRACKET
Remove engine carrier eyebolt at the front and rear. → 1001IN LIFTING V6 3.6-LITRE DFI ENGINE WITH A WORKSHOP CRANE
Remove the engine wire harness. → Removing wire harness for engine
Remove bar ignition modules. → WM 282020 REMOVING AND INSTALLING DFI BAR IGNITION MODULES
Remove intake-air distributor. → Removing Intake-Air Distributor
Remove oil pan. → Removing The Oil Pan
Remove cylinder head. → Removing Cylinder Head
1. 9.1. Remove and dispose of cylinder head gasket.
2. 9.2. Pull oil retaining valve -arrow- out using an M8 screw if necessary.

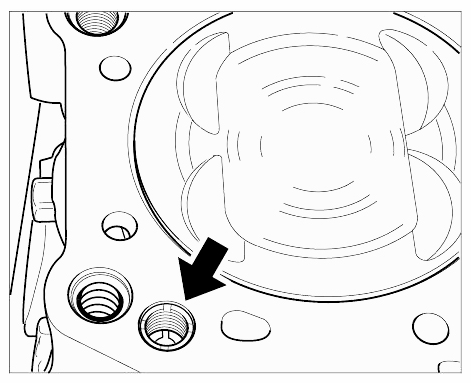

  Fig 1: Locating Oil Retaining Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
