Removing Rear Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure not to damage the heated rear window connections when removing the glass with the cutting wire.
Cut up to just before the connection.
Slacken the cutting wire.
Guide the cutting wire past the connection on the inside.

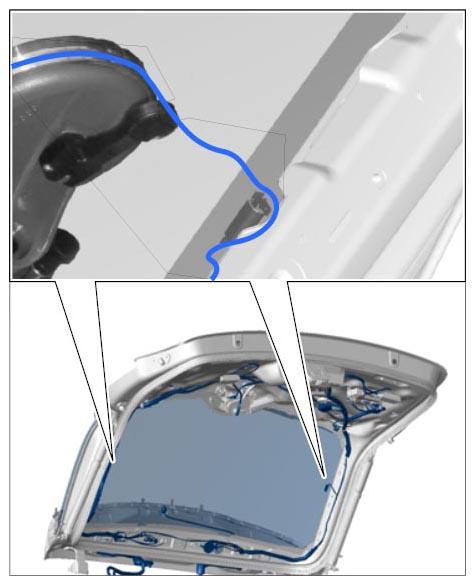

Fig 1: Cutting Wire Past Electric Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Counter with an awl.

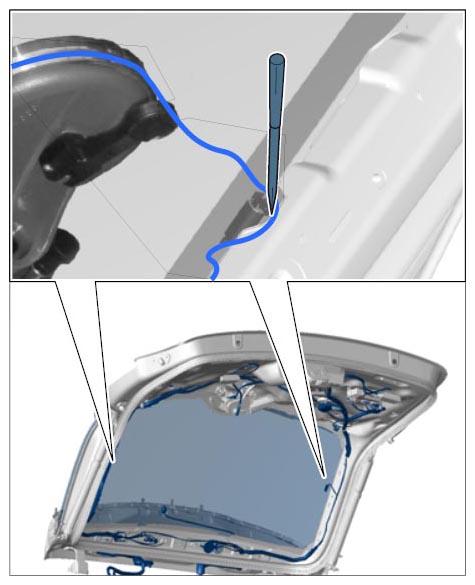

Fig 2: Cutting Wire Past Electric Connection Using Awl
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make sure that the cutting wire does not press against the electric connection when separating the glass.
Continue separating the window glass.

Remove rubber sleeve from the wiper arm.
Release and disconnect electric plug connections for antenna amplifier control unit. → REMOVING CONTROL UNIT FOR ANTENNA AMPLIFIER
Release and disconnect electric plug connections on antenna amplifier. → REMOVING CONTROL UNIT FOR ANTENNA AMPLIFIER
Disconnect electric plug connections for rear window heating. → REMOVING WIRE HARNESSES FOR TAILGATE
Release and disconnect electric plug connections on actuating cylinders for the rear lid. → REMOVING ACTUATING CYLINDER FOR REAR LID
Fix plug connections for the antenna amplifier control unit and antenna amplifier in place on the rear window using adhesive tape.
Affix adhesive tape -1- to the top right corner of the rear window at the rear lid.

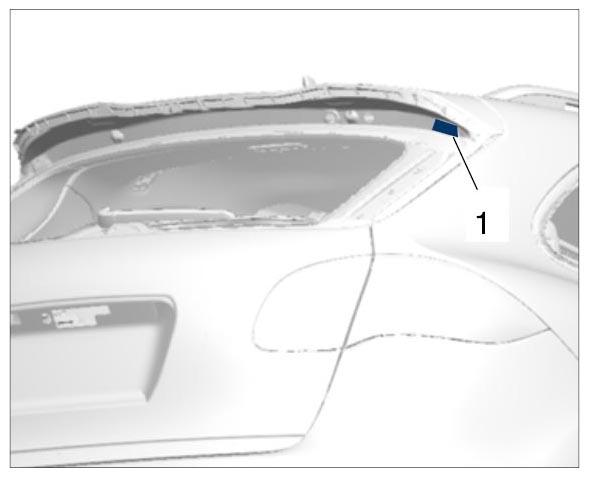

Fig 3: Positioning Adhesive Tape
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Vehicle windows removed and installed incorrectly
- Danger of cuts
- Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.
Apply a bead of adhesive from inside out in the area protected by the adhesive tape using the scratch awl.
Information
- The procedure for removing car windows is described in → 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS .
Remove rear window using the cutting-wire separating device.

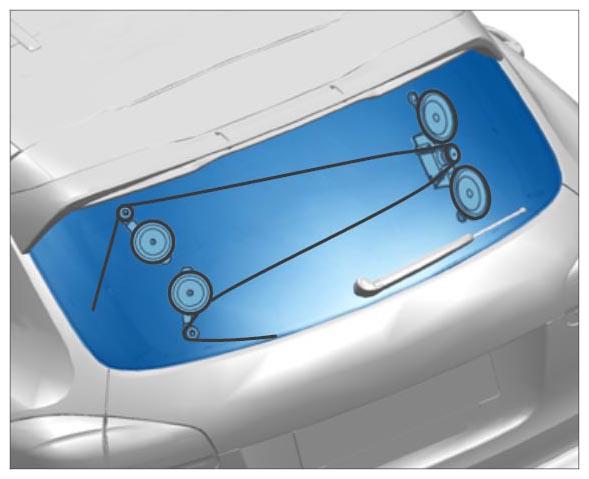

Fig 4: Removing Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
