Removing Control Unit For Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

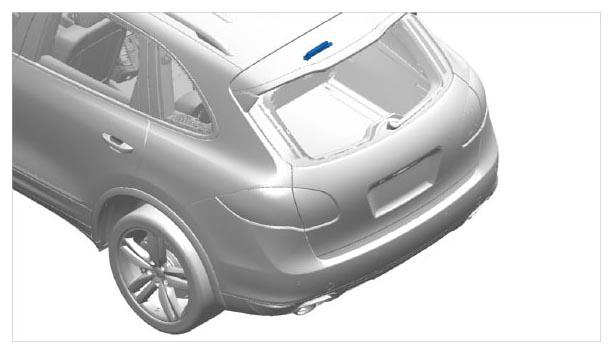

Fig 1: Identifying Control Unit For Antenna Amplifier Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

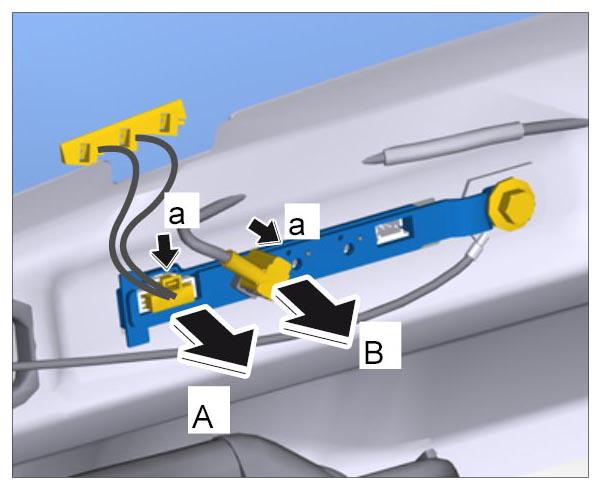

Release electric plug connection -A- using a small screwdriver -a- and disconnect it.

Fig 2: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric plug connection -B- (-a- ).
Unscrew the fastening screw.

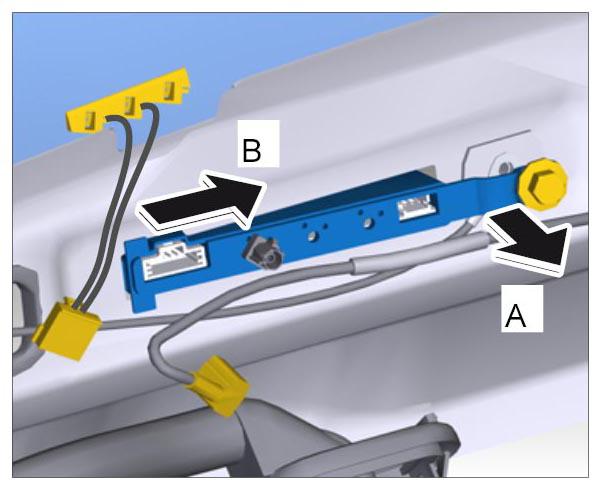

Lift up control unit for antenna amplifier -A- and remove it -B- .

Fig 3: Removing Control Unit For Antenna Amplifier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
