Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install rear door sub-frame. → Installing Rear Door Sub-Frame
  2. Check that the grommet -4-  is seated correctly.
  3. Guide the sleeve -3-  into the grommet -4-  and engage it securely in the drive.
  4. Guide the bar -2-  down into the drive and engage it securely.

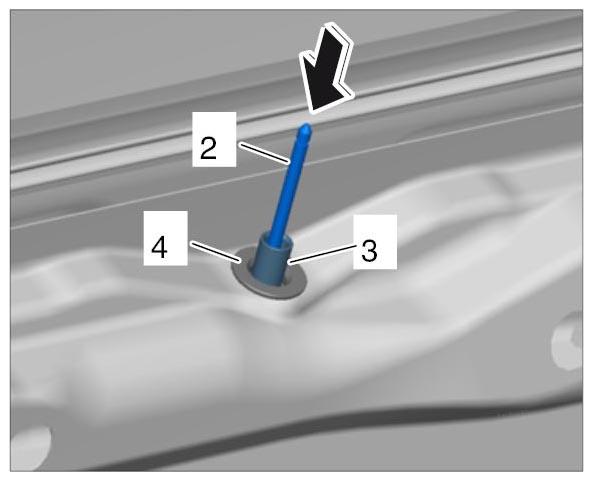

    Fig 1: Installing Bar And Sleeve
    G09940443Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install rear door sub-frame. → Installing Rear Door Panel
