Installing Outer Roof Pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply adhesive.

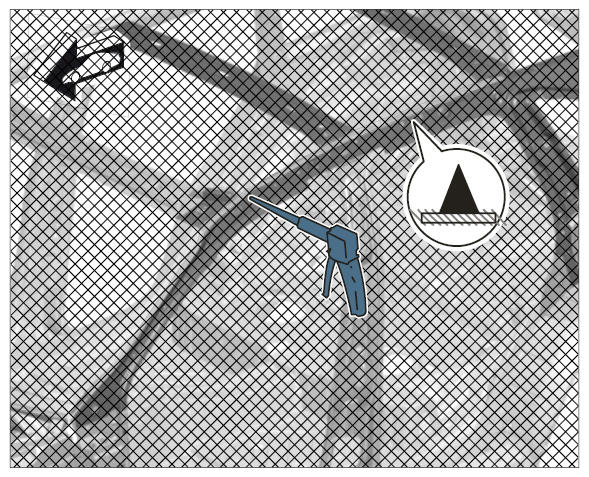

    Fig 1: Applying Adhesive On Outer Roof Pillar
    G09938430Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Evenly apply adhesive to the marked areas.

      Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

  2. Install sealing element.

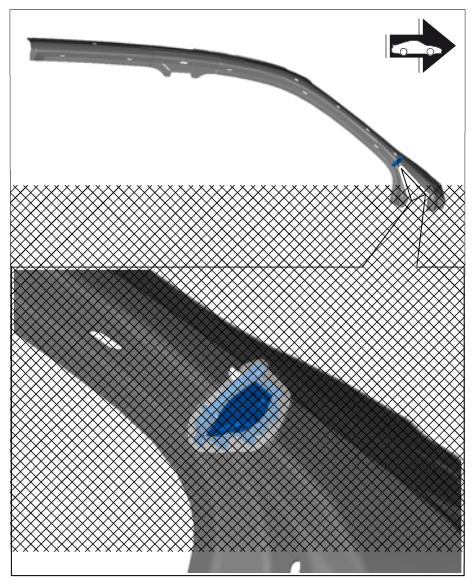

    Fig 2: Identifying Outer Roof Pillar Sealing Element
    G09938431Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Apply body sealant all around the sealing element.

      Body sealant from Wurth Klebt und Dichtet

    2. 2.2. Clip sealing element into outer roof pillar.
  3. Fit and secure outer roof pillar.
  4. Weld in outer roof pillar.
    1. 4.1. Resistance spot-weld outer roof pillar.
    2. 4.2. Spot-weld outer roof pillar using inert gas and then grind down.

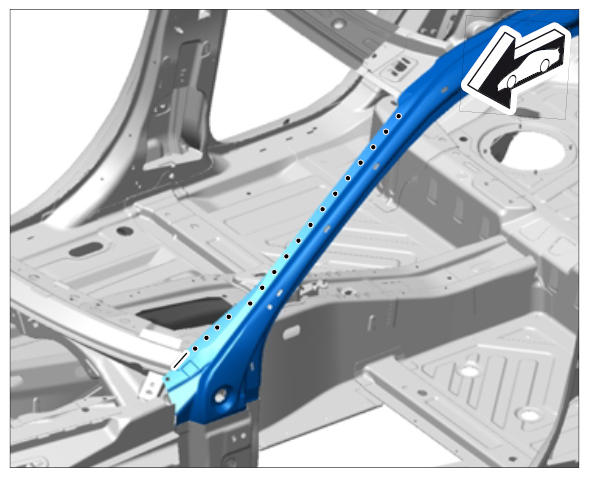

      3. Fig 3: Identifying Outer Roof Pillar
      G09938432Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Resistance spot-weld outer roof pillar.

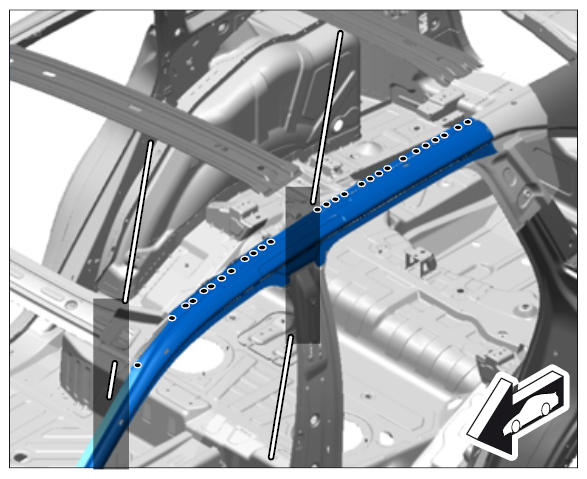

    Fig 4: Identifying Resistance Spot-Weld Outer Roof Pillar (1 Of 3)
    G09938433Courtesy of PORSCHE CARS NORTH AMERICA, INC.

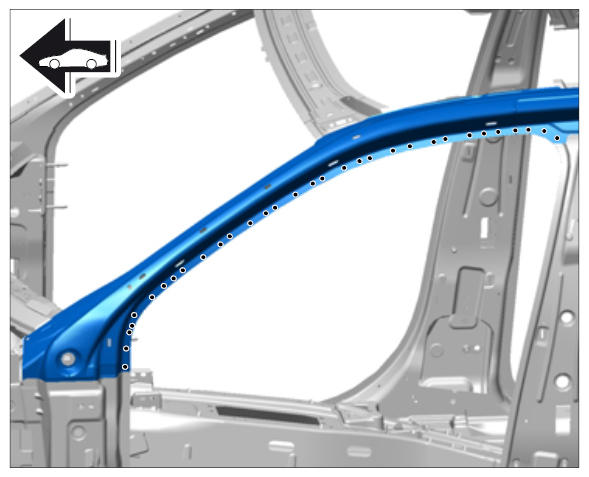

    Fig 5: Identifying Resistance Spot-Weld Outer Roof Pillar (2 Of 3)
    G09938434Courtesy of PORSCHE CARS NORTH AMERICA, INC.

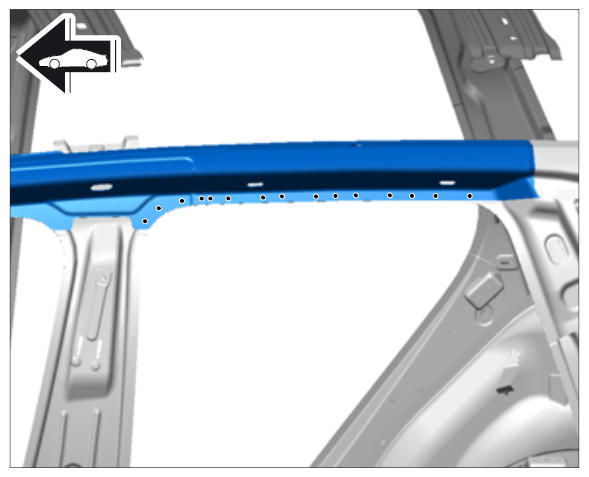

    Fig 6: Identifying Resistance Spot-Weld Outer Roof Pillar (3 Of 3)

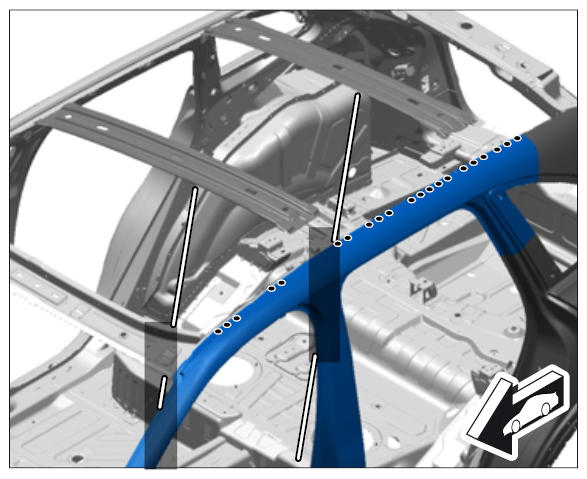

    G09938435Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Weld in outer roof pillar.
    1. 6.1. Plug-weld outer roof pillar using inert gas.
    2. 6.2. Apply a full weld to inner roof pillar using inert gas (30-40 mm).

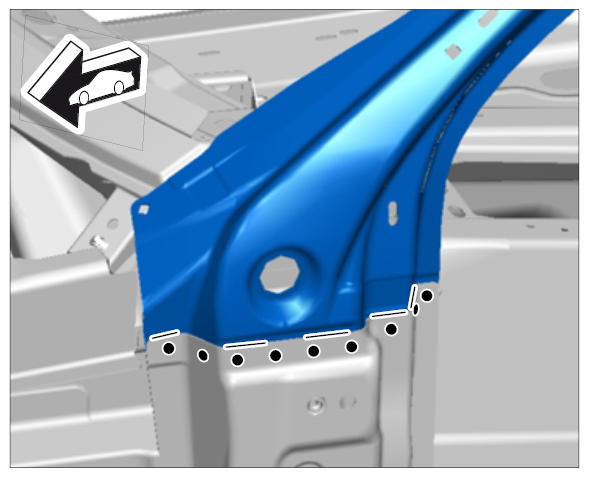

      3. Fig 7: Identifying Weld In Outer Roof Pillar
      G09938436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Weld in outer roof pillar.
    Fig 8: Identifying Weld In Outer Roof Pillar
    G09938437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 7.1. Plug-weld outer roof pillar using inert gas.

      Information

      When welding slots, make sure that both edges of the slot are welded through.

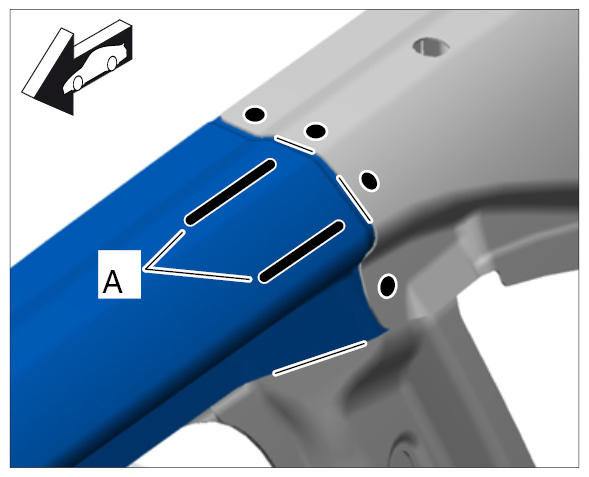

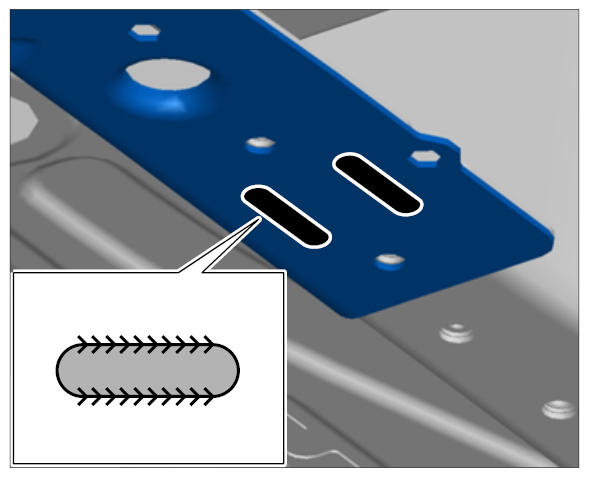

      Fig 9: Identifying Slot Welding
      G09938438Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 7.2. Slot-weld outer roof pillar in the area -A-  using inert gas.
    3. 7.3. Spot-weld outer roof pillar using inert gas.
  8. Install outer B-pillar reinforcement. → 514255 REPLACING OUTER B-PILLAR REINFORCEMENT
  9. Evenly apply adhesive to the marked areas.

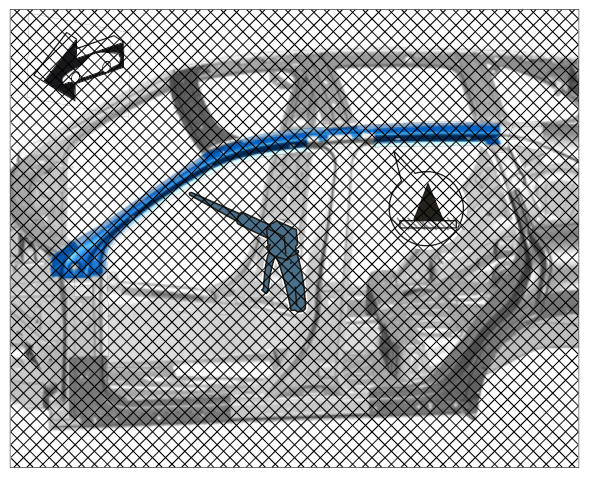

    Fig 10: Applying Adhesive Outer Roof Pillar On Marked Areas
    G09938439Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Fit and secure outer side sections.
  11. Resistance spot-weld outer side section.

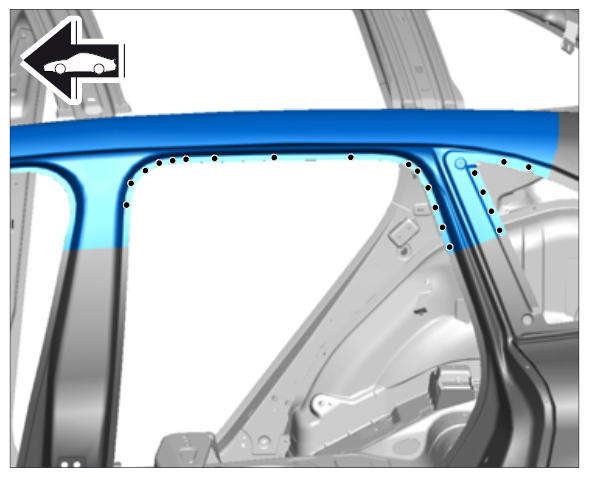

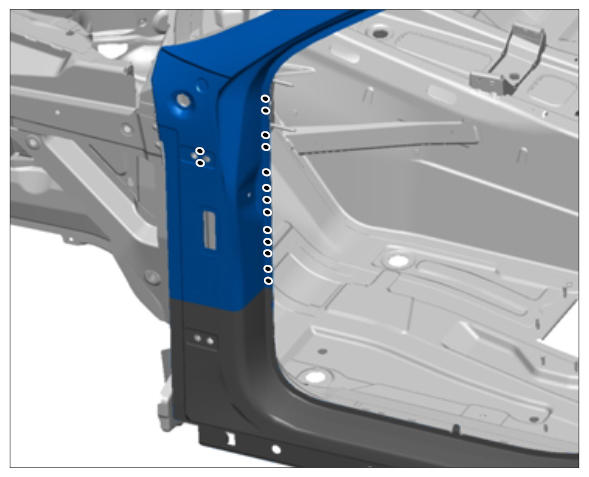

    Fig 11: Identifying Resistance Spot-Weld Outer Side Section (1 Of 4)
    G09938440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

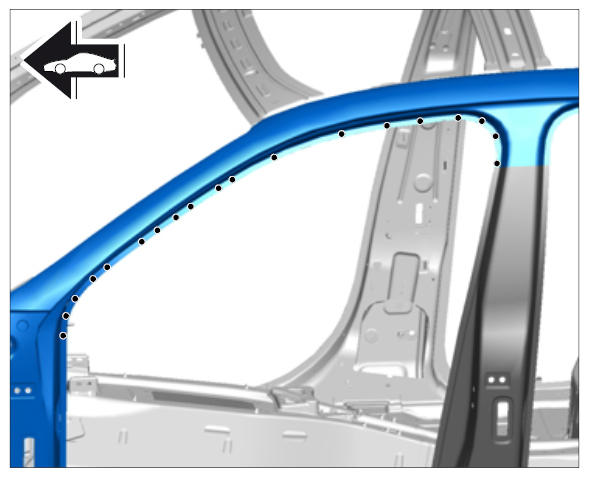

    Fig 12: Identifying Resistance Spot-Weld Outer Side Section (2 Of 4)
    G09938441Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 13: Identifying Resistance Spot-Weld Outer Side Section (3 Of 4)
    G09938442Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 14: Identifying Resistance Spot-Weld Outer Side Section (4 Of 4)
    G09938443Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Weld in outer side section.

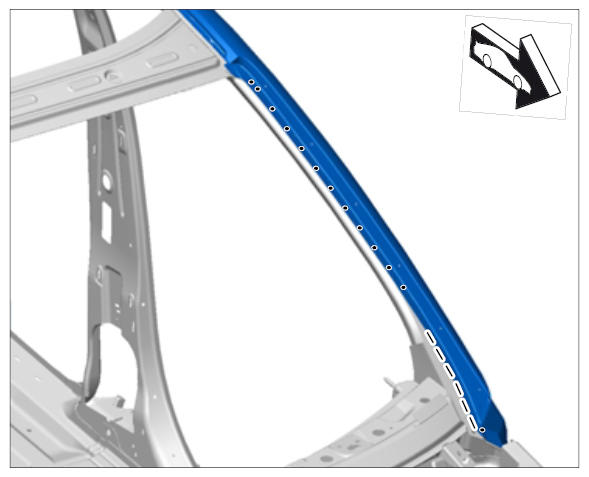

    Fig 15: Identifying Weld In Outer Roof Pillar Side Section
    G09938444Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 12.1. Resistance spot-weld outer side section.
    2. 12.2. Spot-weld outer side section using inert gas.
  13. Spot-weld outer side section using inert gas.

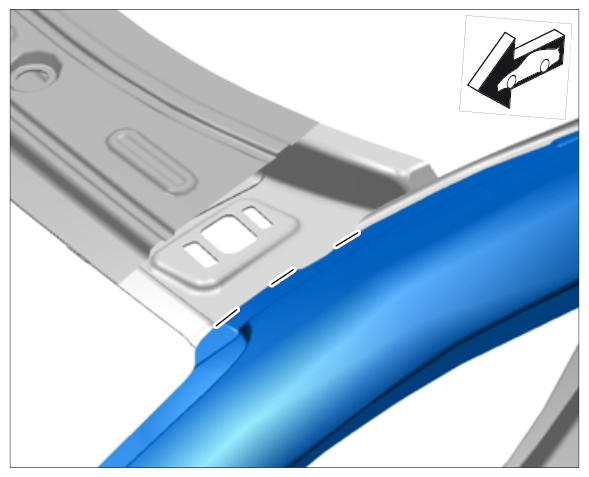

    Fig 16: Installing Outer Roof Pillar
    G09938445Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Install B-pillar. → Installing B-Pillar
  15. Apply a full weld to outer side section using inert gas.

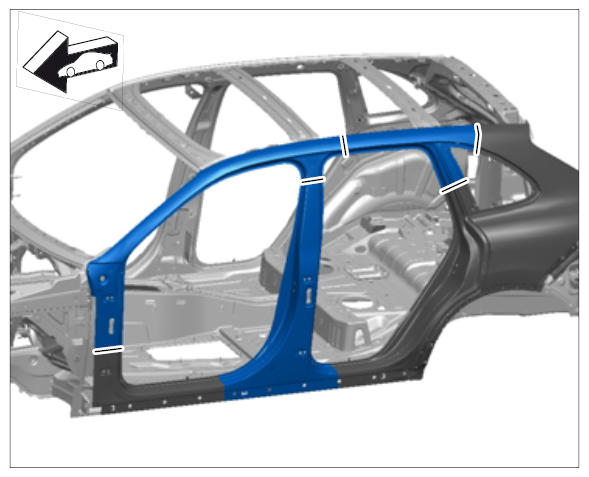

    Fig 17: Identifying Outer Roof Pillar
    G09938446Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  16. Weld in front transverse roof strut (section).
    1. 16.1. Fit and secure front transverse roof strut.
    2. 16.2. Resistance spot-weld front transverse roof strut.
    3. 16.3. Apply a full weld to front transverse roof strut using inert gas.
    4. 16.4. Spot-weld front transverse roof strut in the area -A-  using inert gas.

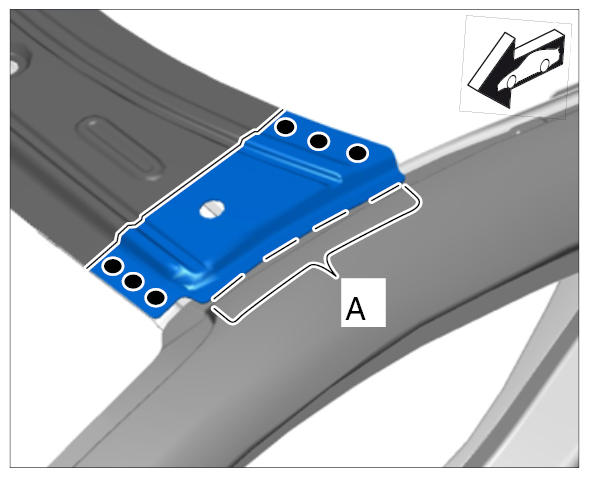

    Fig 18: Identifying Outer Roof Pillar
    G09938447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  17. Weld in center transverse roof strut.
    1. 17.1. Remove support.
    2. 17.2. Plug-weld center transverse roof strut using inert gas.
    3. 17.3. Apply a full weld to center transverse roof strut using inert gas.

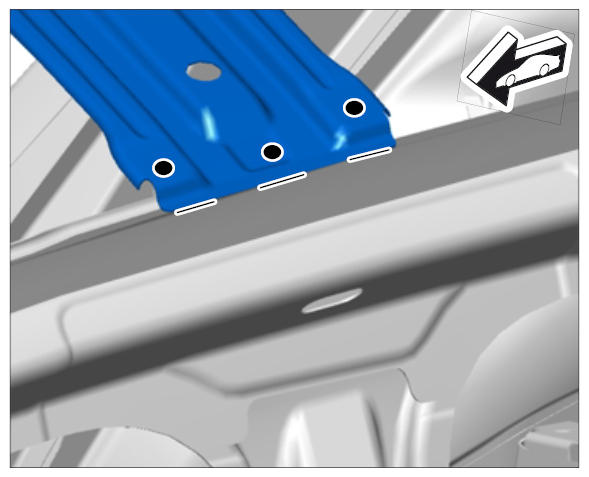

      4. Fig 19: Identifying Weld In Centre Transverse Roof Strut
      G09938448Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  18. Weld in rear transverse roof strut.
    1. 18.1. Remove support.
    2. 18.2. Spot-weld rear transverse roof strut using inert gas.

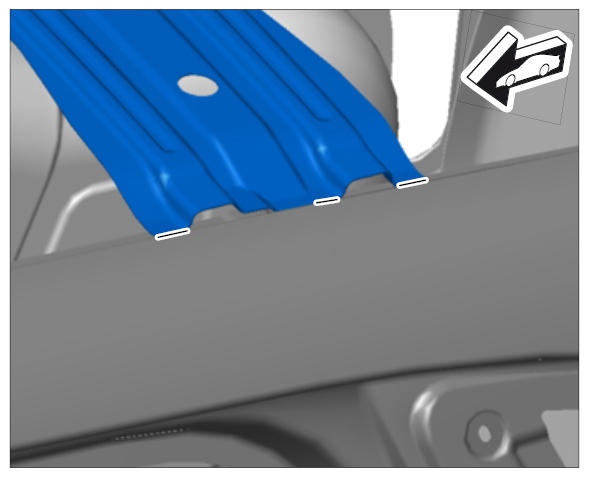

      3. Fig 20: Identifying Weld In Rear Transverse Roof Strut
      G09938449Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  19. Install the roof. → Installing Roof
