Installing Roof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply structural adhesive and support adhesive.

Fig 1: Installing Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply structural adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
2. 1.2. Apply support adhesive to the marked areas. Apply additional adhesive beads as shown.
  Support adhesive

  Fig 2: Installing Roof
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

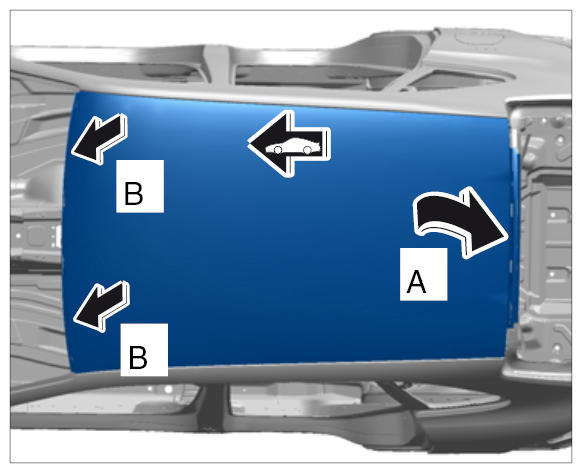

Place roof on rear roof frame with the help of two people -arrow A- and swivel it in towards the front -arrows B- .

Fig 3: Positioning Roof On Rear Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Have this work carried out by an assistant whilst at the same time starting with the welding work.

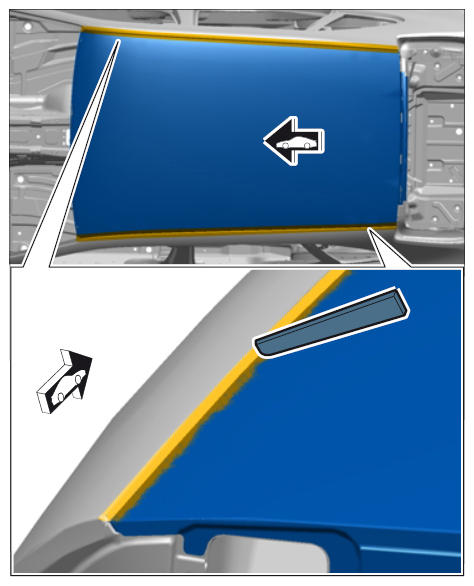

Clean surface of roof in the side panel area.

Fig 4: Installing Side Panel Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

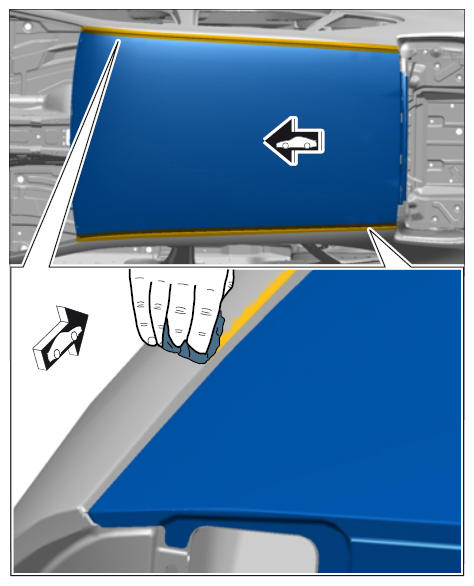

1. 3.1. Remove most of the excess adhesive material with a plastic spatula or cloth.
2. 3.2. Finish cleaning visible surfaces with a cloth soaked in cleaning solution.

  Fig 5: Removing Excess Adhesive Material With Plastic Spatula/Cloth
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

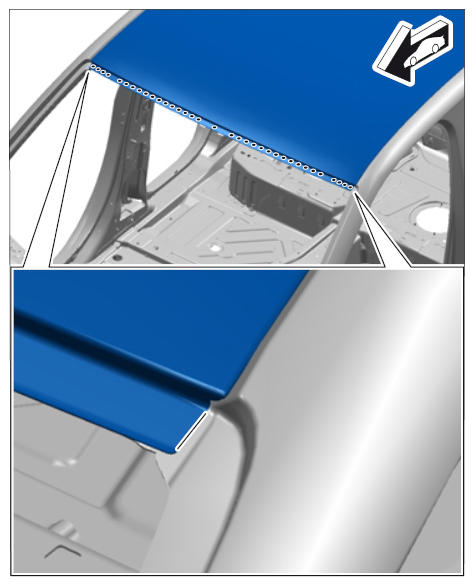

Weld in front roof.

Fig 6: Identifying Weld In Front Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Resistance spot-weld roof.
2. 4.2. Apply additional welded seams to roof in area of A-pillar using inert gas.

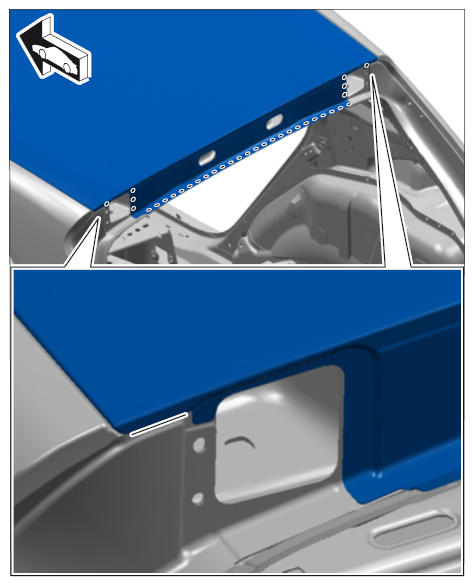

Weld in rear roof.

Fig 7: Identifying Weld In Rear Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Resistance spot-weld roof.
2. 5.2. Apply additional welded seams to roof in area of D-pillar using inert gas.
