Installing B-Pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive and body sealant.

Fig 1: Identifying B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
2. 1.2. Apply body sealant in the area -A- with two 15 mm high adhesive beads on the B-pillar reinforcement and opposite on the B-pillar.
  Body sealant from Wurth glue and seals
Fit and secure the B-pillar.
Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Resistance spot-weld B-pillar.

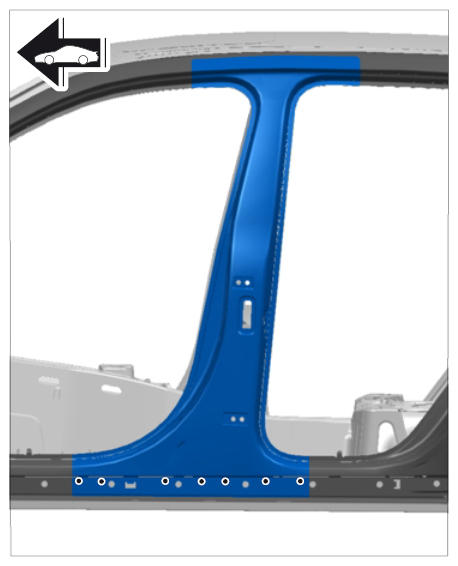

Fig 2: Identifying Resistance Spot-Weld B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply a full weld to B-pillar using inert gas.

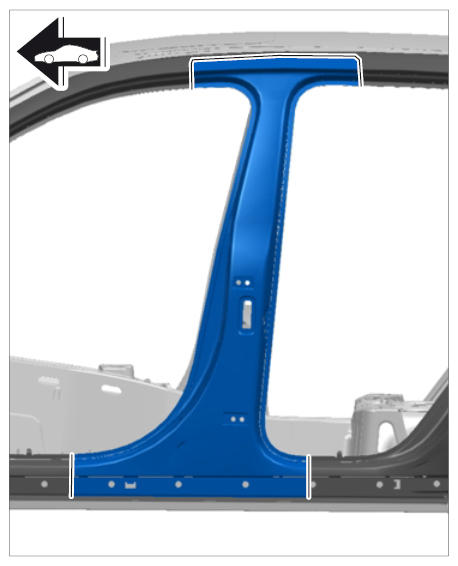

Fig 3: Identifying B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug-weld B-pillar using inert gas.

Fig 4: Identifying Plug-Weld B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
