Installing Wire Harness For Tailgate At The Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

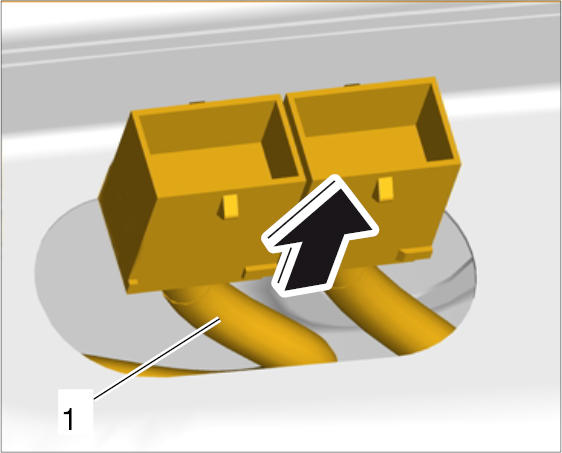

Guide wire harness -1- forward through the cut-outs in the roof -arrow- .

Fig 1: Locating Guiding Wire Harness Through Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

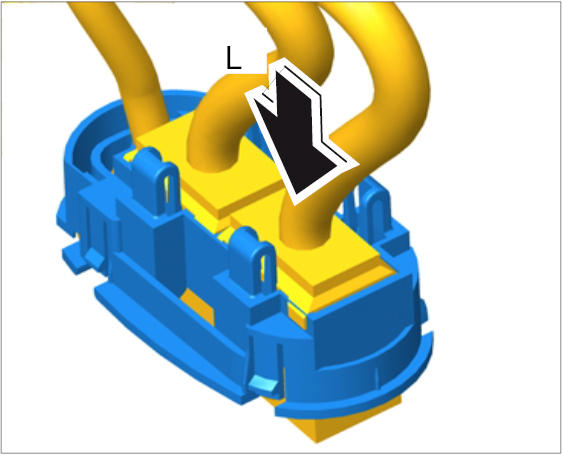

Clip connector for connection point into the bracket -L- .

Fig 2: Locating Clip Connector Into Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

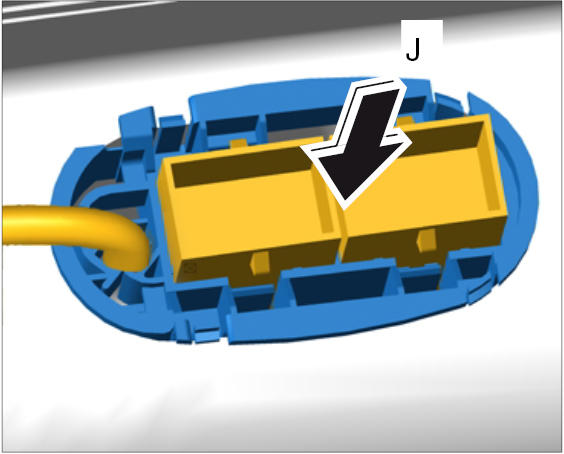

Clip bracket for connection point into the body -J- .

Fig 3: Locating Clip Bracket For Connection Point Into Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

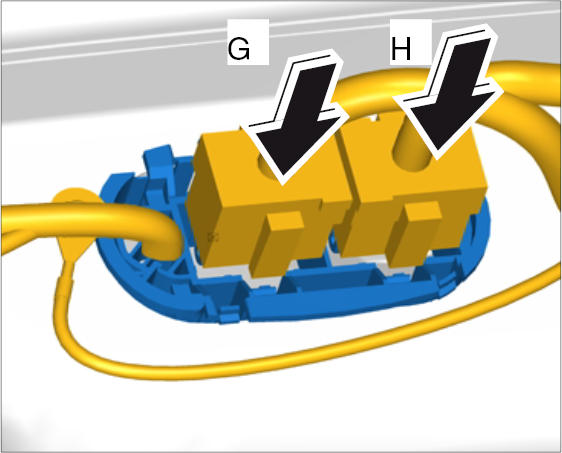

Plug in electric plug connections for the connection point -G, H- until the connectors engage securely.

Fig 4: Plugging In Plug Connections At Connection Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

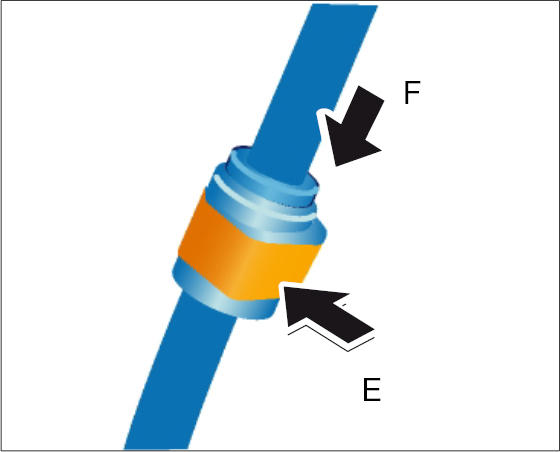

Insert connection point for water spray line -F- and lock it -E- .

Fig 5: Fitting Water Spray Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

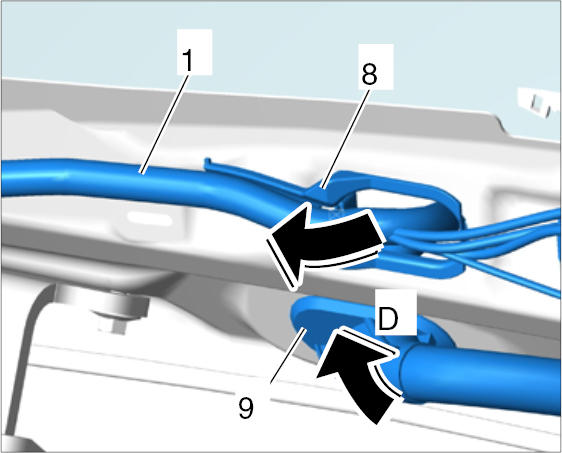

Pull wire harness -1- through the tailgate -D- and insert rubber sleeve -9- .

Fig 6: Pulling Wire Harness Through Tailgate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

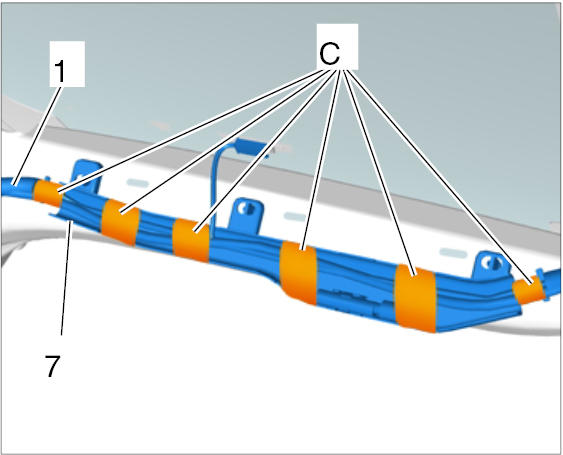

Secure wire harness -1- to bracket -8- with adhesive tape.
Secure wire harness -1- to bracket -7- with adhesive tape -C- .

Fig 7: Identifying Wire Harness Line In Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

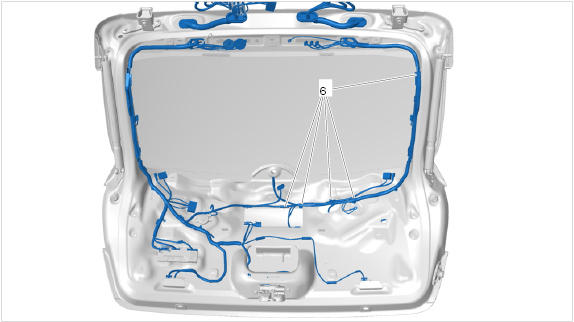

Clip in fixing clips -6- for wire harness for tailgate.

Fig 8: Identifying Fastening Points For Left Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in and lock electric plug connections for the antenna amplifier control unit. → INSTALLING CONTROL UNIT FOR ANTENNA AMPLIFIER - section on "Installing"
Plug in electric plug connection for rear window heating.
Plug in and lock electric plug connection for the wiper motor. → INSTALLING WIPER MOTOR - section on "Installing"
Fit and lock water spray line. → INSTALLING WIPER MOTOR - section on "Installing"

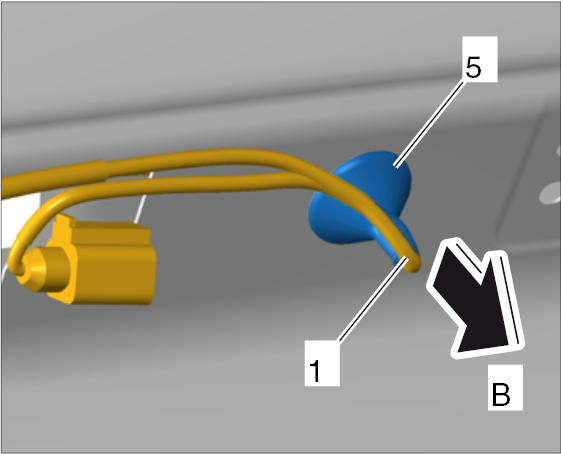

Pull wire harness -1- outwards -B- and press rubber sleeve -5- outwards from the inside.

Fig 9: Fitting Rubber Sleeve On Handle Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

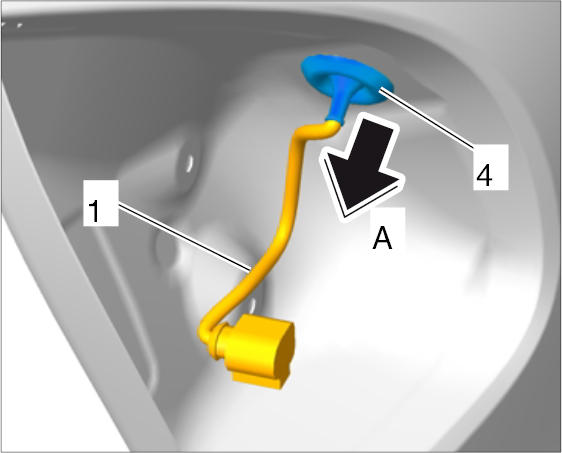

Pull wire harness -1- outwards -A- and press rubber sleeve -4- outwards from the inside -A- .

Fig 10: Pulling Rubber Sleeve On Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

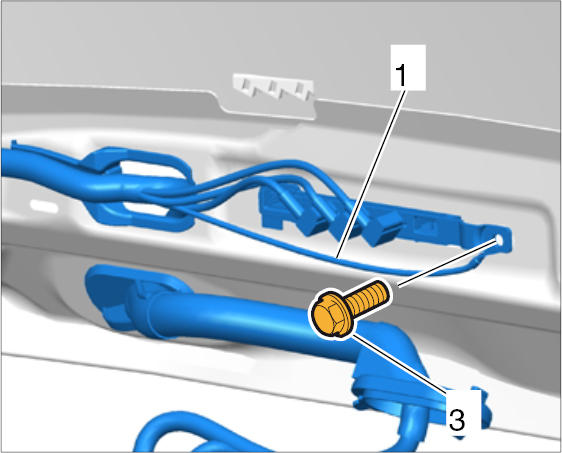

Connect ground line -1- to the antenna control unit and tighten fastening screw -3- . Tightening Torque 9 Nm (6.5 ft. lb.)

Fig 11: Identifying Ground Line To Antenna Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
