Installing Wiper Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

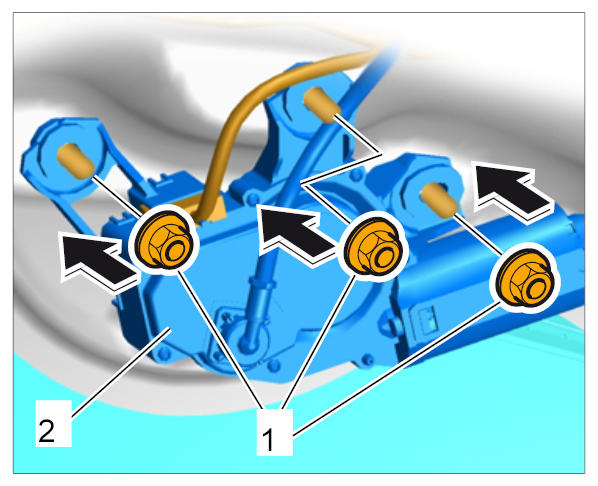

  1. Position wiper motor -2-  .
    Fig 1: Installing Wiper Motor
    G09941897Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw on fastening nuts -1-  and tighten uniformly.

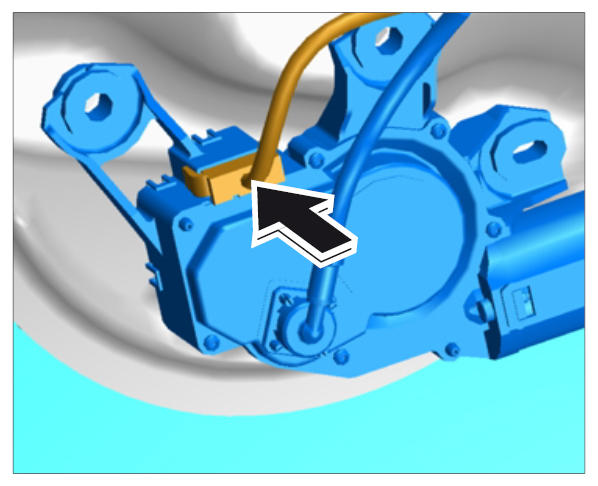

  3. Plug in electric plug connection in direction of arrow until it engages securely.
    Fig 2: Inserting Plug Connection
    G09941898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

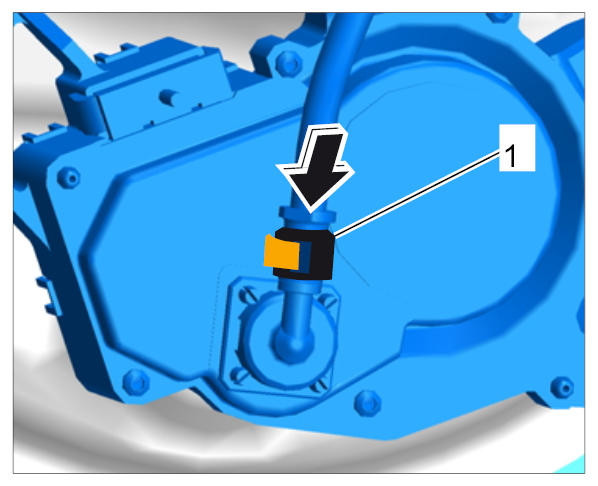

  4. Attach water spray line -1-  and secure it.
    Fig 3: Identifying Water Spray Line
    G09941899Courtesy of PORSCHE CARS NORTH AMERICA, INC.
