Installing Front Wheel Bearing Housing (Wheel Carrier)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack . -Dimension X from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

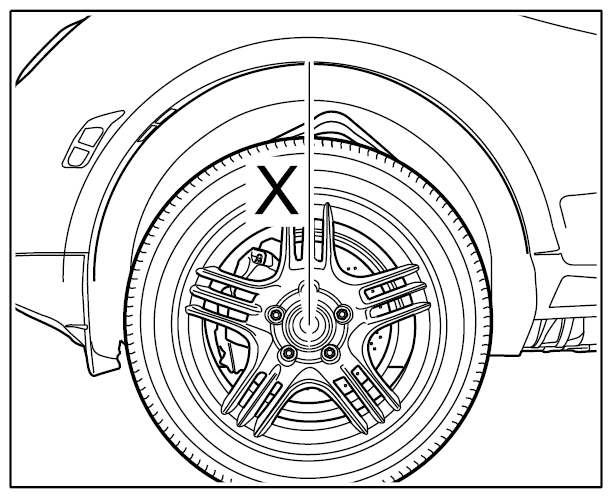

Fig 1: Adjusting Dimension X Lower Edge Of Wing To Centre Of Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Visually inspect all parts .
Replace self-locking nuts .
Replace all expansion screws (screws fitted using torque angle tightening procedure) .
Use correct tightening torques and torque angle . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Information

The pictures shown in this document may differ from the original .

Counter with a screwdriver 9546 when tightening the ball joints if necessary.
Grease the toothing with a little Optimoly TA aluminum paste and fit the drive shaft into the wheel bearing housing.
Information
- The drive shaft must be pulled in as far as it will go using the fitting tool T10206 .

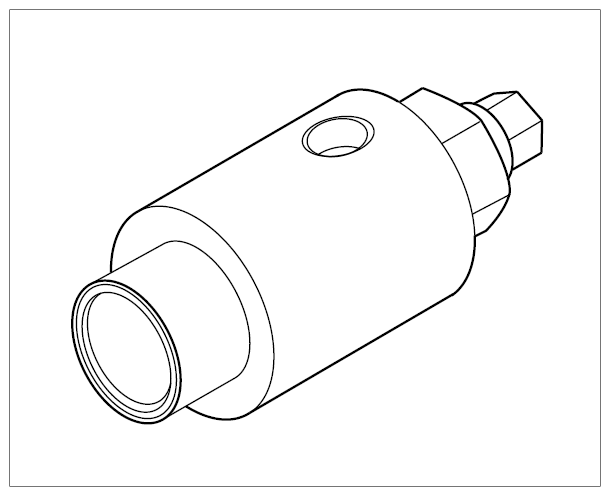

  Fig 2: Identifying Fitting Tool T10206
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the drive shaft into the wheel bearing housing.
Grease the mounting-face ring of the axle nut with a little Optimoly TA aluminum paste. Screw on the axle nut.
Fit the wheel bearing housing on the lower ball joint (second mechanic required). → Installing Lower Trailing Arm
Fit the tie rod on the wheel bearing housing. → Installing Tie Rod
Fit the wheel bearing housing on the ball joint of the upper trailing arm. → 401519 REMOVING AND INSTALLING UPPER TRAILING ARM (STEEL SPRINGS)
Fit the brake disc. → Installing Front Brake Disc
Fit the brake calliper. → Installing Front Brake Calliper
Fit the holders -1, 2- for the hydraulic lines on the wheel bearing housing -3- .

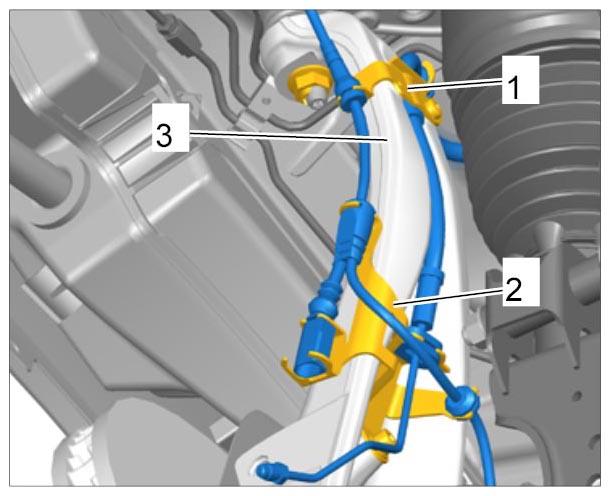

Fig 3: Identifying Mounting For Hydraulic Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection -1- for the speed sensor on the wheel bearing housing -A- and lock it -a- .

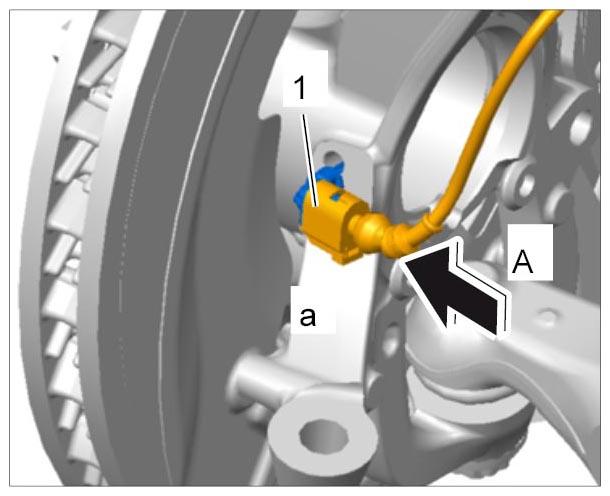

Fig 4: Locating Electric Plug Connection For Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
