Installing Lower Trailing Arm

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wheel bearing housing raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

The pictures shown in this document may differ from the original .

Information

All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack . -Dimension X from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

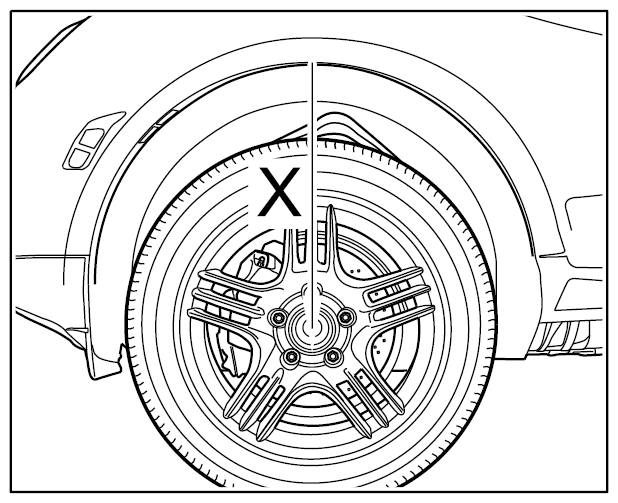

Fig 1: Adjusting Dimension X Lower Edge Of Wing To Centre Of Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Visually inspect all parts .
Replace self-locking nuts .
Replace all expansion screws (screws fitted using torque angle tightening procedure) .
Use correct tightening torques and torque angle . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Counter with a screwdriver 9546 when tightening the ball joints if necessary.
Carefully insert the pin for the ball joint into the wheel bearing housing and fit the lock nut. → Inserting ball joint (shown as an example) → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

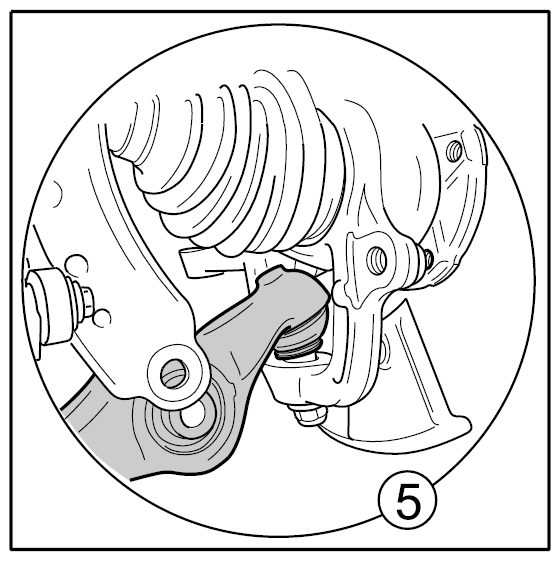

Fig 2: Inserting Ball Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the trailing arm into the mounting points on the chassis subframe -A- .

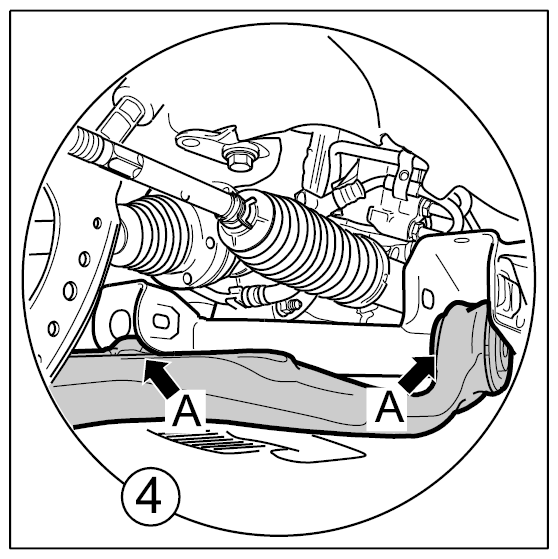

Fig 3: Locating Trailing Arm Mounting Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert and fit the eccentric screws -1- . Fit according to the markings -A, B- . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE
Raise the wheel bearing housing slightly using a suitable jack to avoid damaging the dust bellows for the steering when tightening the eccentric screws.

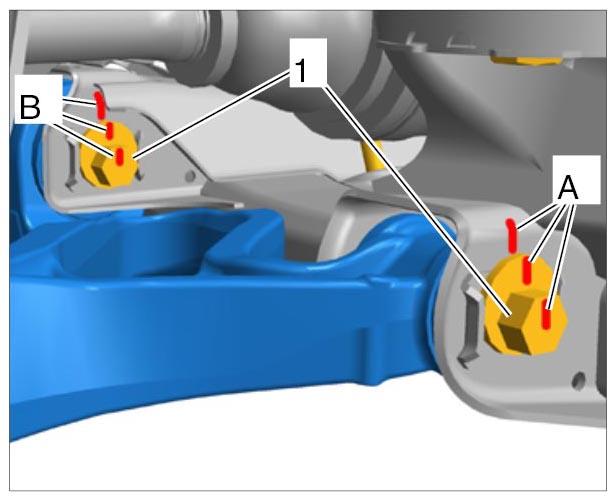

Fig 4: Identifying Marking On Eccentric Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use a suitable jack to raise the trailing arm and remove spring tensioner VW 552 -1- from the upper trailing arm -2- .

Fig 5: Securing Upper Trailing Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the axle support -1- as far as required using a suitable jack -4- until the fastening screw -2- slides easily through the spring strut -3- and axle support.

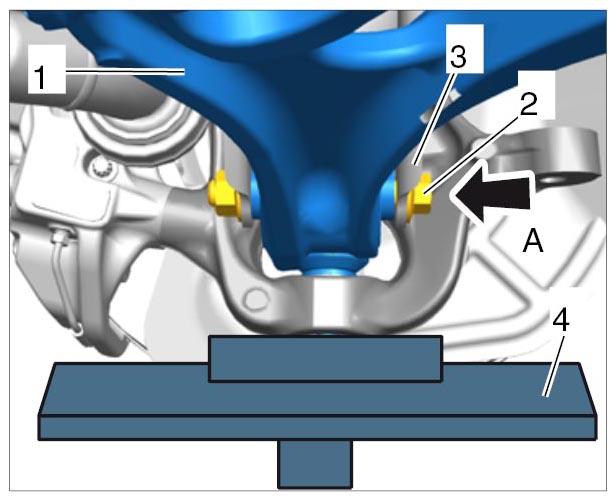

Fig 6: Adjusting Spring Strut Threaded Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the fastening screw -2- for the spring strut -3- and trailing arm -2- . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE
