Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw on and tighten nut -arrow-  for right engine mounting.

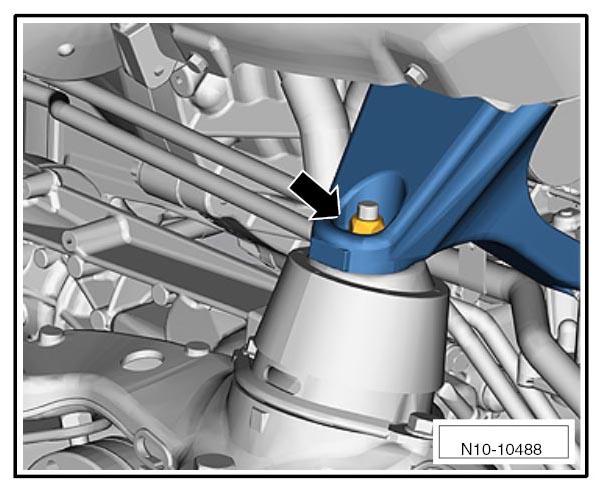

    Fig 1: Locating Right Engine Mounting
    G09804239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw on and tighten nut -arrow-  for left engine mounting.

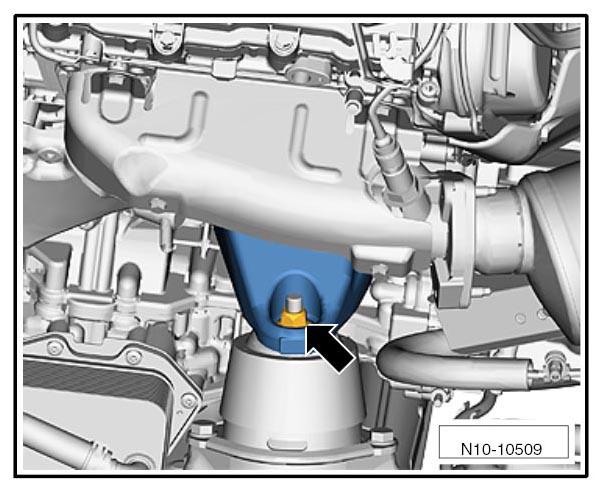

    Fig 2: Locating Left Engine Mounting
    G09804237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove engine support. → 1001IN SUPPORTING THE ENGINE ON THE BODY
  4. Install power electronics. → INSTALLING FUSE FOR POWER ELECTRONICS UNIT
  5. Fit air cleaner housing. → INSTALLING AIR CLEANER HOUSING
  6. Install engine compartment trim panel. → INSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT)
  7. Connect the battery. → INSTALLING BATTERY
