Installing Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the air cleaner housing into the engine compartment at an angle from above. → Air cleaner housing

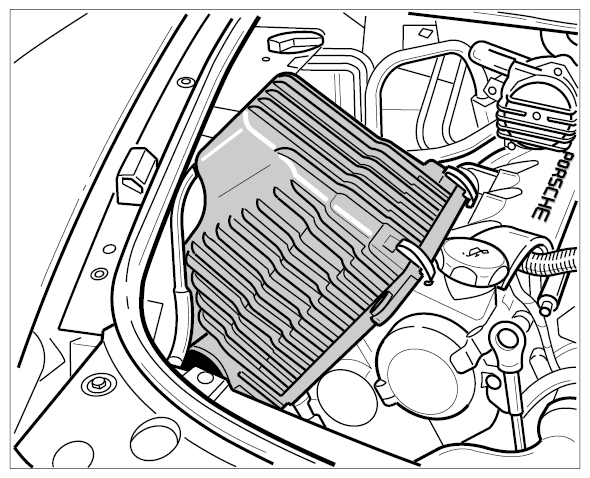

    Fig 1: Identifying Air Cleaner Housing
    G09933504Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide the two retaining bolts on the underside into the take-up bores in the body -arrows-  . From the wheel housing, check to make sure that the blue rubber washers are present and make sure that the bolts are fitted properly.

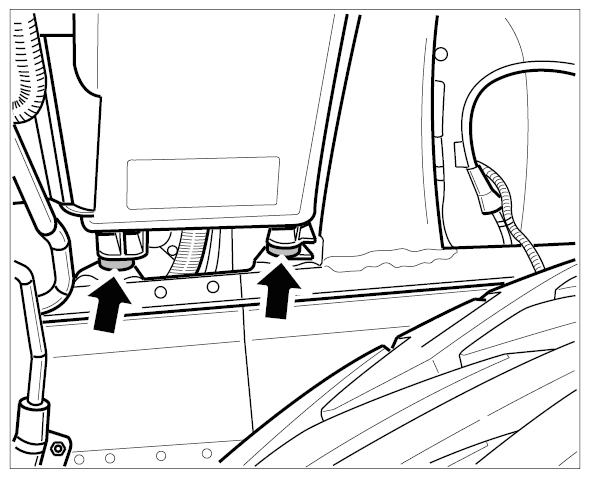

    Fig 2: Locating Fastening Bolts And Rubber Washers
    G09933505Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tighten the fastening screw -arrow-  on the air cleaner housing. → Tightening Torque: 10 Nm (7.5 ft. lb.)

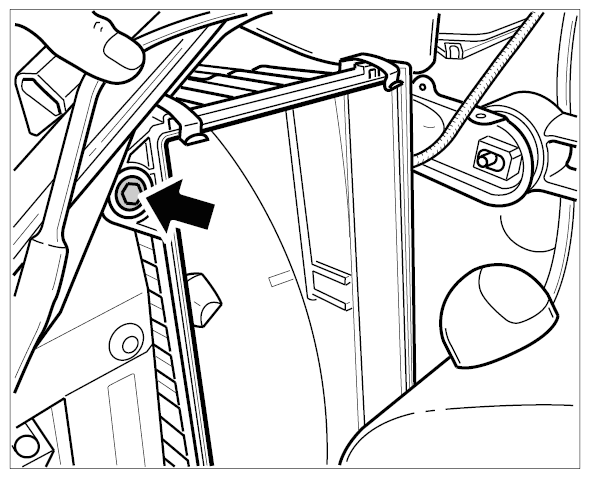

    Fig 3: Locating Fastening Screw
    G09933506Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Insert air-cleaner element. → REPLACING AIR-CLEANER ELEMENT  - section on "Replacing"
  5. Fit the cover -1-  of the air-cleaner box using the side guides -2-  on the air cleaner housing -3-  .

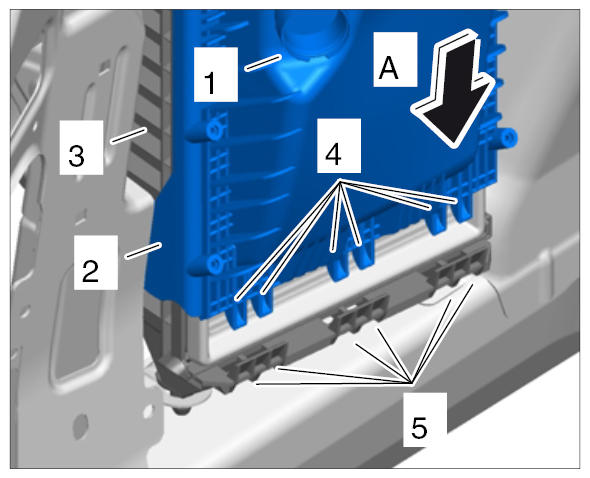

    Fig 4: Fitting Air Cleaner Cover
    G09933507Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Slide the cover down -A-  .
    2. 5.2. The guides -4-  on the cover must fit into the mountings -5-  on the air cleaner housing.
  6. Fold the cover -1-  up towards the air cleaner housing -2-  (-A-  ).

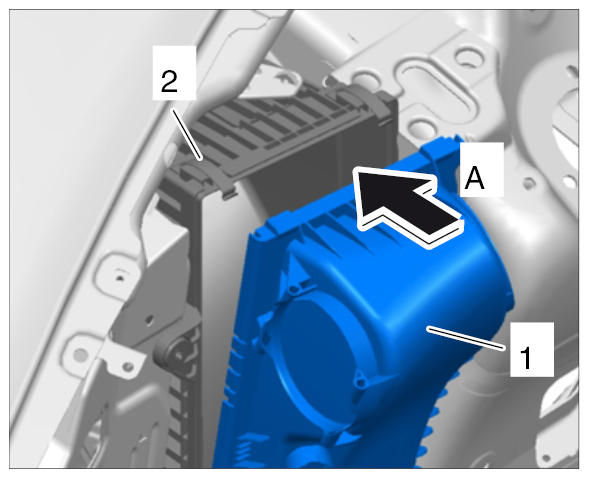

    Fig 5: Installing Air Cleaner Cover
    G09933508Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Clip in the two upper fastening clamps -arrows-  on the air cleaner housing.

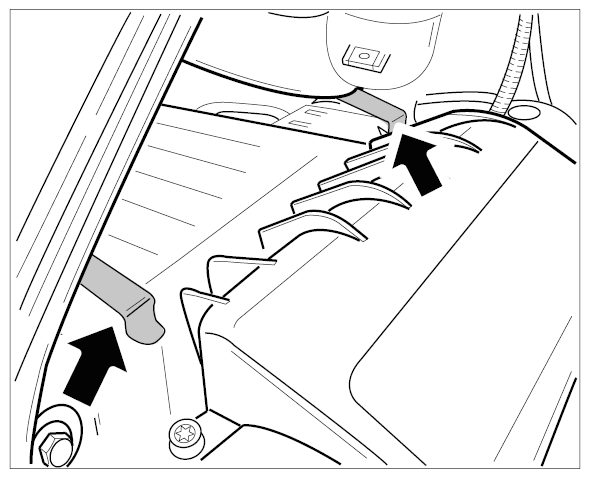

    Fig 6: Locating Fastening Clamps
    G09933509Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Slide the intake port into the cover of the air cleaner housing.

    Push the bolts fully into the mountings and turn them 180° → Securing connections on air cleaner  .

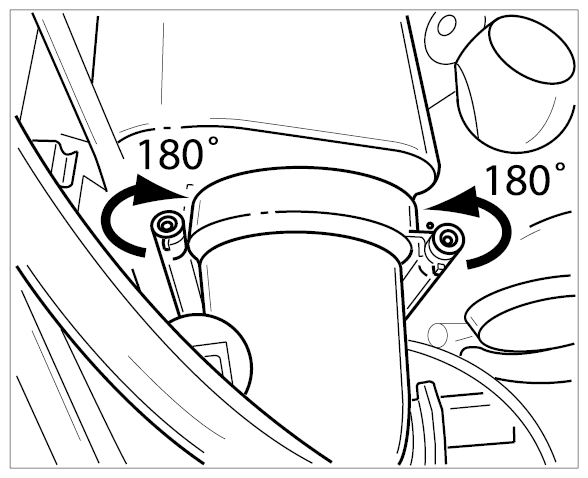

    Fig 7: Securing Connections On Air Cleaner
    G09933510Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Insert the air guide into the air cleaner housing. → INSTALLING FRONT WHEEL HOUSING LINER - section on "Installing"
