Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Close the fuel tank. To do this, fit the sheetmetal ring on the left and right connection unit and tighten using special tool wrench T10202 . → Cap → Tightening Torque: 145 Nm (107 ft. lb.) +/-5 Nm (+/-3.5 ft. lb.)

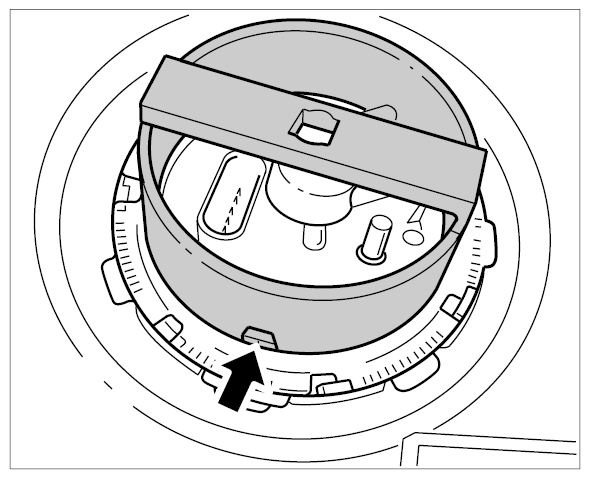

Fig 1: Identifying Special Tool On Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit all connections for the right connection unit (fuel lines, ventilation tubes and electric connectors). → Fuel supply and connection points at right connection unit

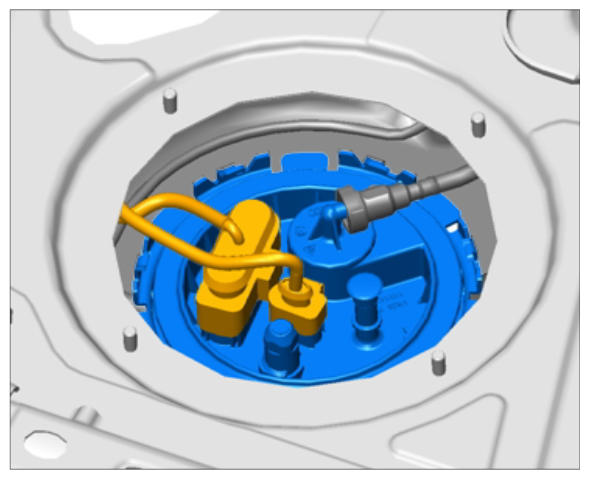

Fig 2: Identifying Fuel Supply And Connection Points At Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection for the left connection unit.

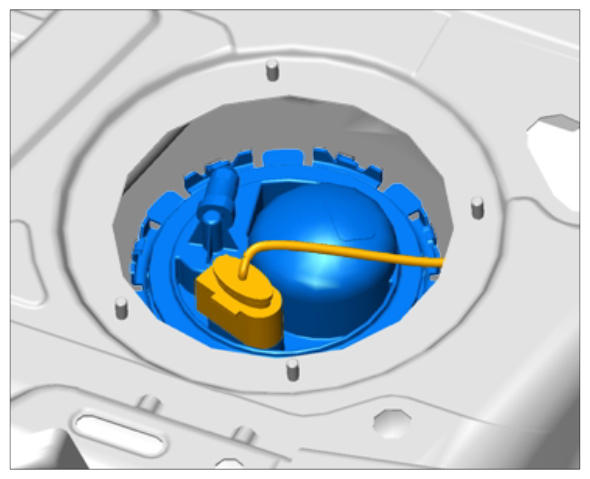

Fig 3: Identifying Connector Of Left Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit left and right lid. Then tighten the four fastening nuts on each to → Tightening Torque: 10 Nm (7.5 ft. lb.) . Refit carpeted floor and fix in place with double-sided adhesive tape.

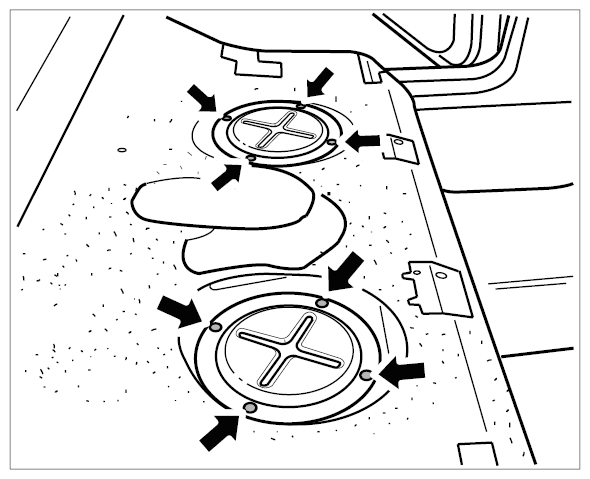

Fig 4: Locating Fastening Nuts On Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear seat. → INSTALLING 1/3-SPLIT FOLDING REAR SEAT or INSTALLING 2/3-SPLIT FOLDING REAR SEAT - section on "Installing"
Fill the fuel tank. → FILLING WITH FUEL (FILLING FUEL TANK) - section on "Filling"
Close the filler flap.
Connect the battery. → CONNECTING THE BATTERY
