Connecting The Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the battery
    1. 1.1. Connect the ground strap -2-  to the ground point -1-  on the body in front of the driver's seat and secure with the fastening nut. Tightening torque 20 Nm (15 ftlb.)

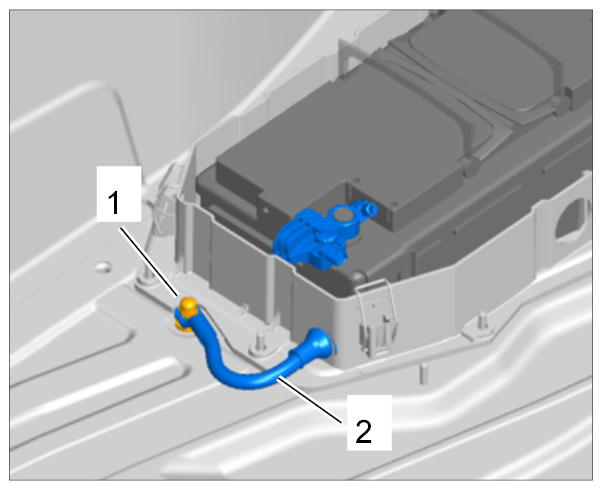

      Fig 1: Identifying Ground Strap Point
      G09933084Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Re-lay the carpet.
