Installing 2/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position 2/3-split folding rear seat in the vehicle.
Tighten all fastening screws -1 - 4- hand-tight.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.
Observe tightening sequence 1...4 .

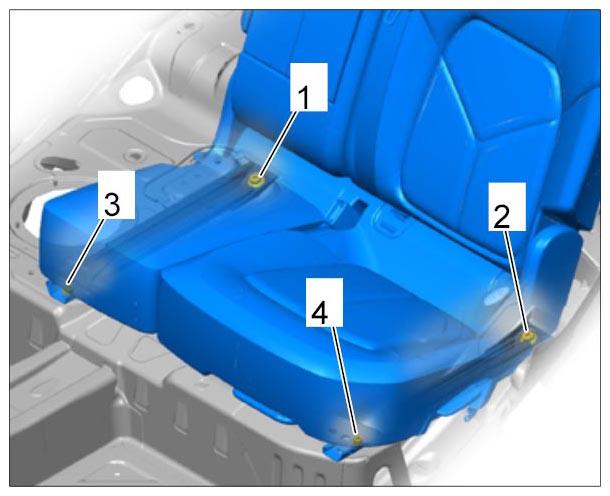

Fig 1: Seat Bolts Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten M12 fastening screws at the rear -1 and 2- to → Tightening torque: 50 Nm (37 ftlb.)+/-7.5 Nm (+/-5.5 ftlb.) .
Tighten M10 fastening screws at the front -3 and 4- to → Tightening torque: 50 Nm (37 ftlb.)+/-7.5 Nm (+/-5.5 ftlb.) .
Clip electric plug connection -2- into the bracket.

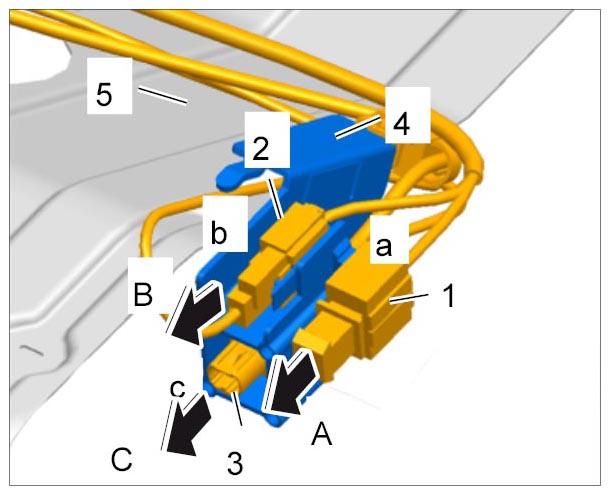

Fig 2: Connecting Electric Plug Connections For 2/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
