Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the generator in installation position -arrow-  and secure with the fastening screws -arrows 3-  . For details, see → INSTALLING GENERATOR - section on "Installing"

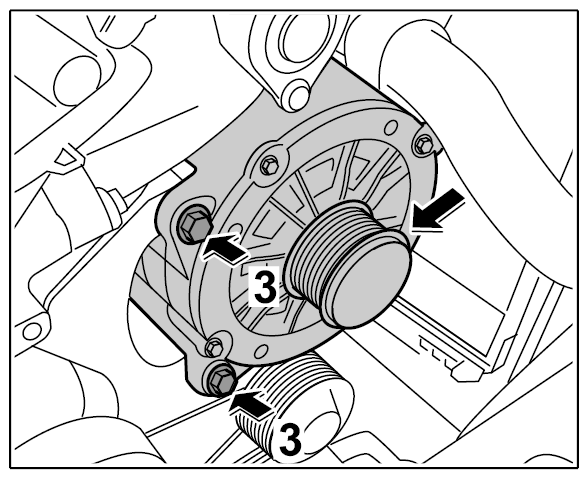

    Fig 1: Securing Generator
    G09933642Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit belt tensioner. Tighten the three screws on the belt tensioner. → Tightening Torque: 25 Nm (19 ft. lb.)
  3. Fit drive belt. For details, see → 137819 REMOVING AND INSTALLING DRIVE BELT ON V6 DFI ENGINES
  4. Fit air-cleaner element and air cleaner housing cover. → INSTALLING AIR-CLEANER ELEMENT  - section on "Installing"
  5. Install intake manifold. → INSTALLING AIR BOX FOR THROTTLE HOUSING (INTAKE PIPES UPSTREAM OF THROTTLE VALVE)  - section on "Installing"
  6. Press design cover onto the throttle valve.
  7. Fit engine compartment cover. → INSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT) - section on "Installing"
