Installing Air Box For Throttle Housing (Intake Pipes Upstream Of Throttle Valve)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place intake manifold in installation position.

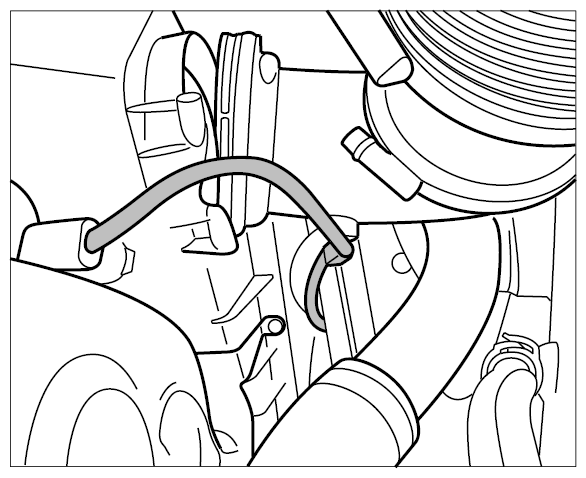

Insert cable for mass air flow meter on the intake pipe underneath the intake pipe. → Cable on intake pipe

Fig 1: Identifying Cable On Intake Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press intake manifold into the air-cleaner housing. Push in both fastening bolts as far as they will go.

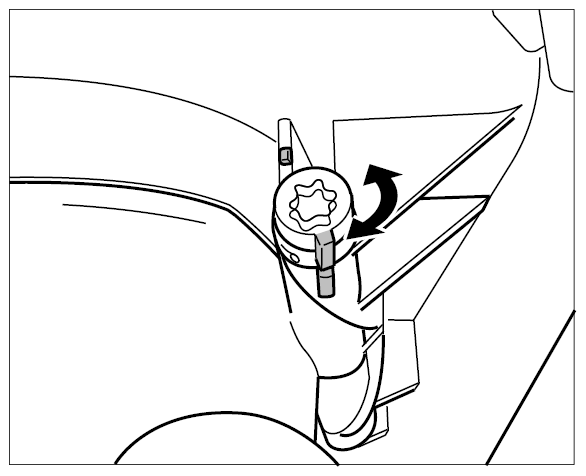

Turn both fastening bolts on the air cleaner housing from the removal mark back to the initial mark. → Fastening bolts

Fig 2: Turning Fastening Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

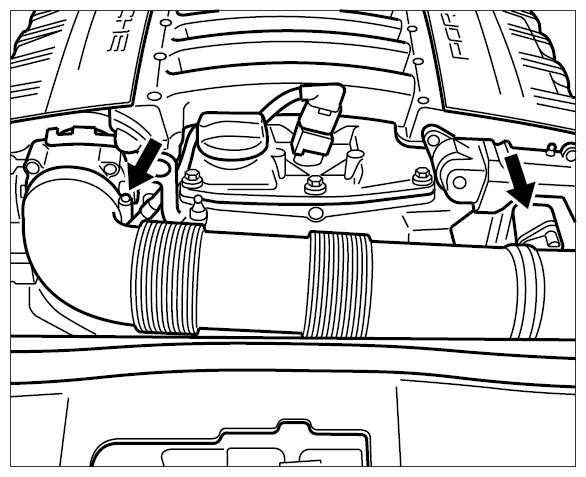

Move intake pipe into installation position, fit screw-type clamp on throttle housing. Connect cable plug for mass air flow meter. -arrows-

Fig 3: Locating Intake Pipe Screw-Type Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
