Installing Generator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before installing the new generator, tap the threaded bushes -1- out by approx. 4 mm .

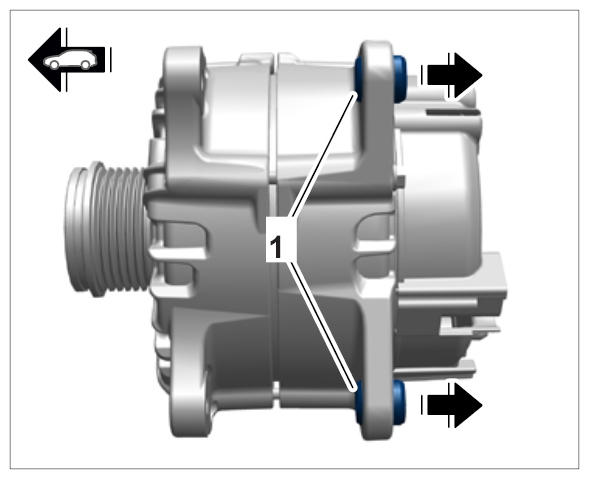

Fig 1: Identifying Generator Bushes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the generator -3- from above.

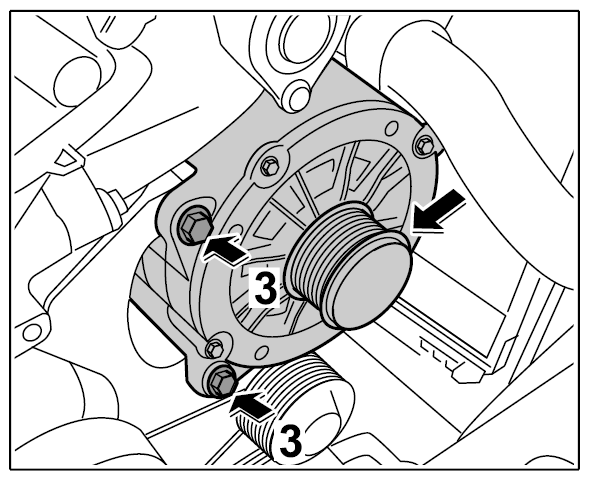

Place the generator in installation position -arrow- and secure with the fastening screws -arrows 3- .. → Tightening Torque: 20 Nm (15 ft. lb.)

Fig 2: Securing Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the B+ line -3- to the generator -arrow A- and secure with the fastening nut -2- . → Tightening Torque: 15 Nm (11 ft. lb.)
Plug in connector -1- (-arrow B- ) until it engages securely.

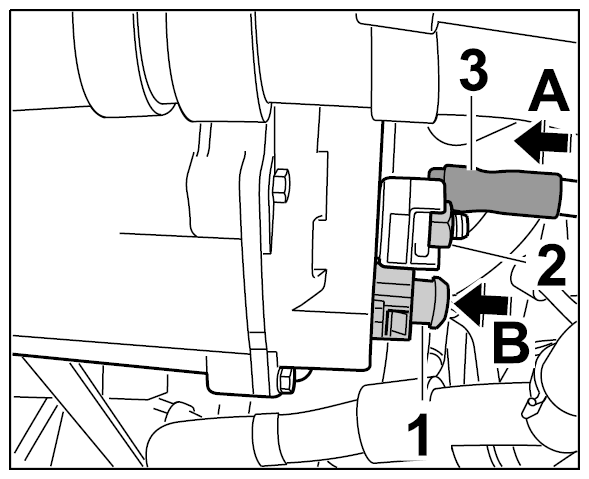

Fig 3: Securing Electric Connections On Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
