Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine guard. → REMOVING ENGINE GUARD

Fig 1: Identifying Engine Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support the engine on the body. → WM 1001IN SUPPORTING THE ENGINE ON THE BODY (CAYENNE GTS, CAYENNE TURBO S, CAYENNE S HYBRID, CAYENNE S E, CAYENNE TURBO, CAYENNE (3.0))
Remove the front-axle carrier. → REMOVING FRONT-AXLE CARRIER
Remove engine carrier. → REMOVING ENGINE CARRIER
Information
- Collect oil in a clean container so that it can be re-used .
Loosen oil drain plug -arrow- and collect engine oil in a container.
Dispose of waste oil in accordance with legal requirements .

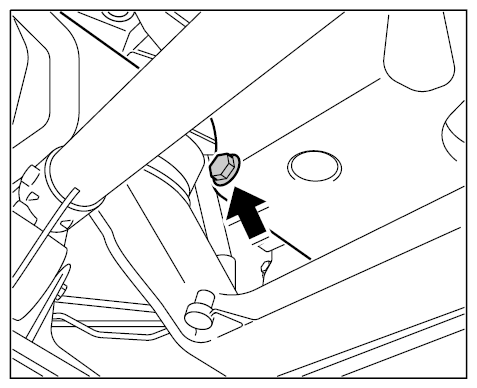

Fig 2: Locating Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace oil drain plug -arrow- . → Tightening torque: 30 Nm (22 ftlb.)

Fig 3: Locating Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
