Removing Engine Guard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew side fastening screws -1- for the front part of the engine guard.

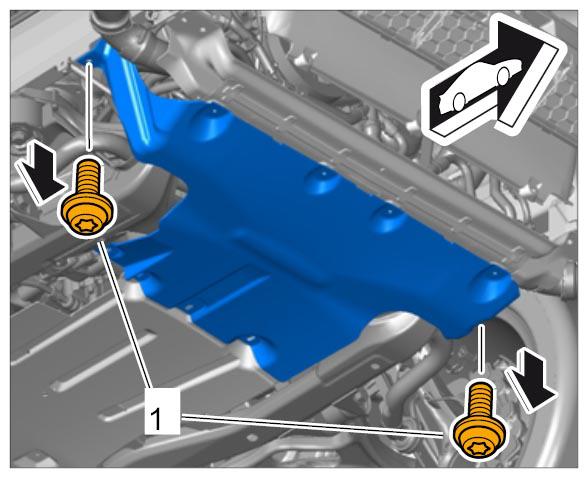

Fig 1: Loosening Engine Guard Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew rear -2- and front fastening screws -3- for the front part of the engine guard.

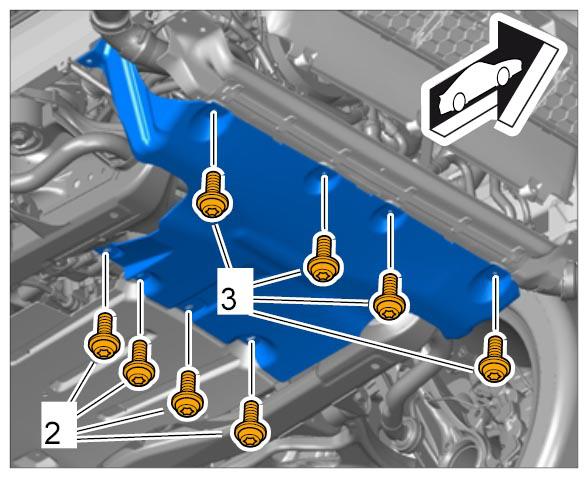

Fig 2: Loosening Engine Guard Screws - Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front part of engine guard.
Unscrew rear -5- and front fastening screws -4- for the rear part of the engine guard.

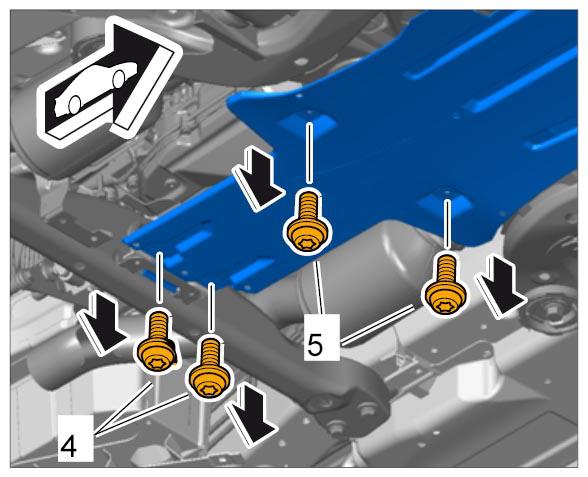

Fig 3: Loosening Engine Guard Screws - Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear part of engine guard.

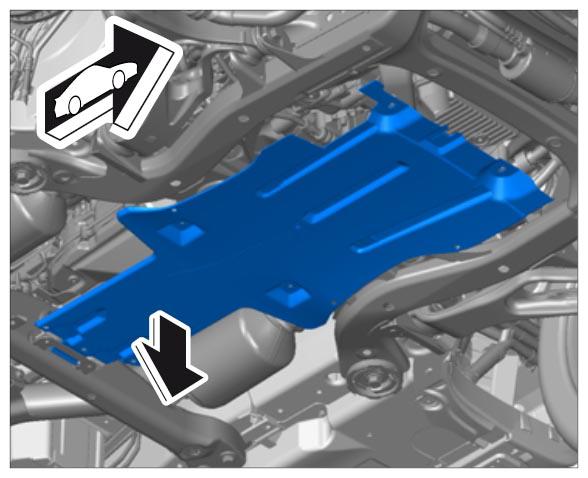

Fig 4: Removing Rear Engine Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
