Removing Engine Carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

This task can only be performed if the engine has been removed or suspended on the body .

Unscrew the two fastening screws -3- at the left and right on the hydraulic mounts from below.

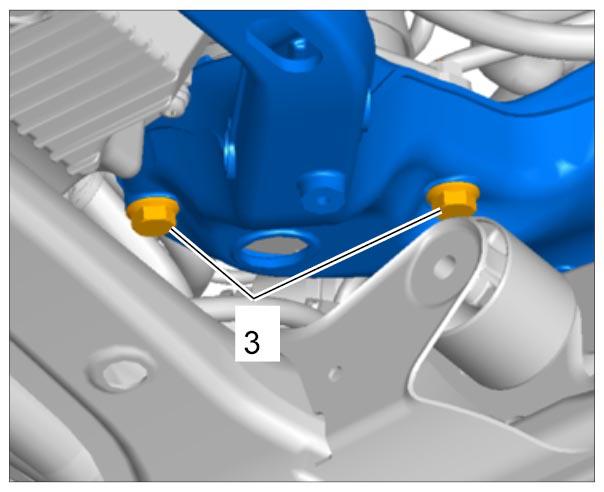

Fig 1: Identifying Hydraulic Mounts Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove engine carrier by pulling it downwards.
