Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Pull the design cover vertically upwards and off.

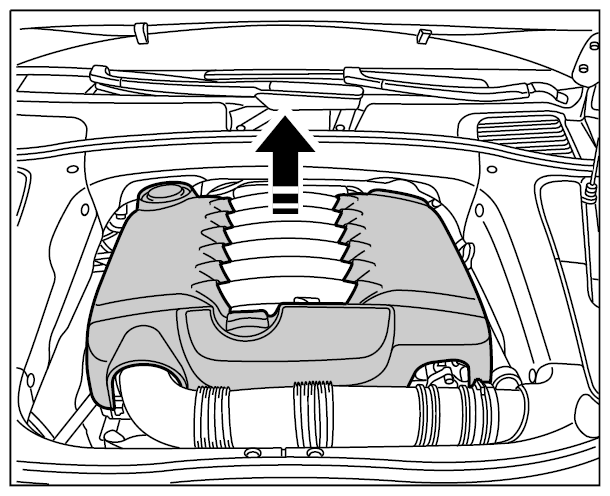

Fig 1: Pulling Engine Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove engine compartment cover at the left → 700219 REMOVING AND INSTALLING FRONT COVER (ENGINE COMPARTMENT) .
Remove air cleaner housing lid and air-cleaner element → REMOVING AIR CLEANER HOUSING .
Remove engine guard → REMOVING ENGINE GUARD
Drain coolant → 193817 DRAINING AND TOPPING UP WITH COOLANT (INCLUDES BLEEDING) .
